Ives 8800 Greenwich Style Door Pull, Offset / Arc Design, Decorative, up to 24" CTC

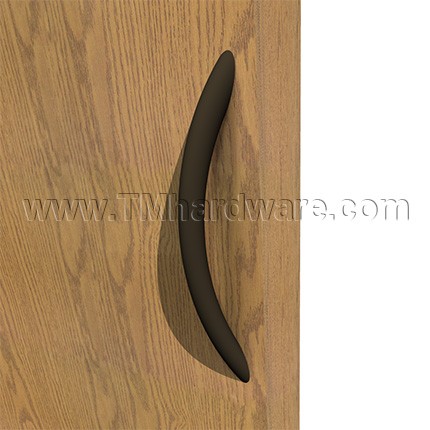

Ives 8800 Greenwich Style Offset Door Pull with arc design and 1” offset. ¾” diameter round pull available in CTC lengths up to 24”. This pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of size, material and finishes available, see available options.
PRICED PER PIECE / SET
*Note: Back to Back screw packs options are sold as a SET and will double the price and quantity. Quantity 1 = 2 Pulls.

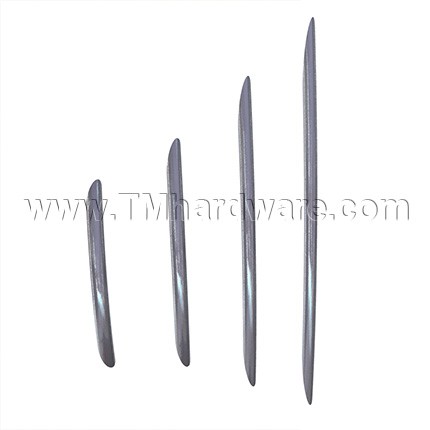

Ives 8800 C Shaped Offset Door Pull, Greenwich design, 3/4" diameter with 1" offset .

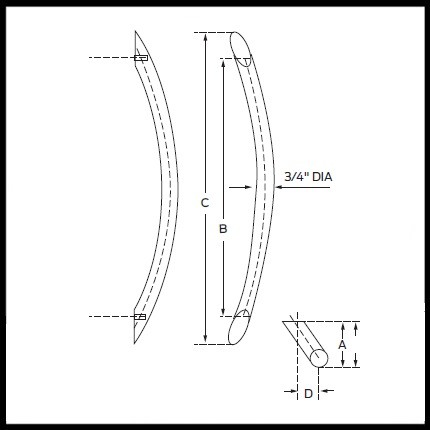

Product number | Projection | Clearance | Offset | Center to center | Overall length |
8800-9 | 2-1/8" | 1-3/8" | 1" | 9" | 12-9/16" |
8800-2 | 2-1/8" | 1-3/8" | 1" | 12" | 15-9/16" |
8800-18 | 2-1/8" | 1-3/8" | 1" | 18" | 21-9/16" |
8800-24 | 2-1/8" | 1-3/8" | 1" | 24" | 27-9/16" |
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back mounting
Door Thickness: For doors 1-1/2" - 1-3/4" thick. For additional thickness, please contact our office.
Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.
Priced per piece / set
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
See our Ives 8848 Latitude Style Door Pull.
-
QuickShipNo
-
ManufacturerIves
- About this Product
-
Mount DesignOffset Mount
-
StyleModern, Contemporary
-
Base MaterialBrass, Stainless Steel
-
- Dimensions
-
Diameter3/4" Diameter
-
LengthUp to 12-9/16", Up to 15-9/16", Up to 21-9/16", Up to 27-9/16"
-
CTC9" CTC, 12" CTC, 18" CTC, 24" CTC
-
Projection2-1/8" Projection
-
Clearance1-3/8" Clearance
-
Offset1" Offset
-
- Installation
-
Screw PackSingle Pull, Thru-Bolt (Standard), Single Pull, Countersunk Thru-Bolt (#F), Single Pull, Concealed, Wood Door (#I), Single Pull, Concealed, Metal Door (#L), Push / Pull, Back to Back, Wood or Metal Door (#J)*
-
Door Thickness1-1/2" - 1-3/4" Thick Doors
-
Mounting Hardware1/4 -20 Phillips Head Drive Screws
-
- Finishes
-
FinishPolished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Satin Stainless Steel (US32D)
-
- Compliance Details
-
ANSI DesignationA156.06
-
Warranty1 Year Limited Warranty
-
