Ives FB52 Constant Latching Flush Bolt with Auxiliary Fire Latch, Top Bolt

Ives FB52 Constant Latching Flush Bolt with Auxiliary Fire Latch, Top Bolt, Polished Brass (US3) Finished
Ives

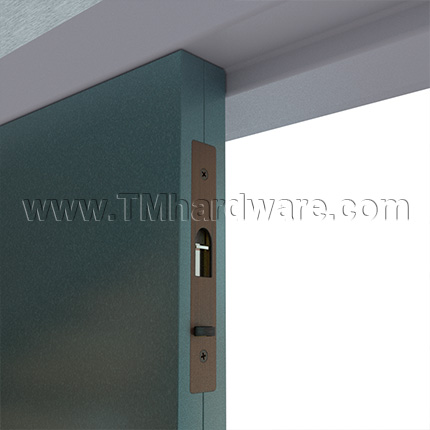

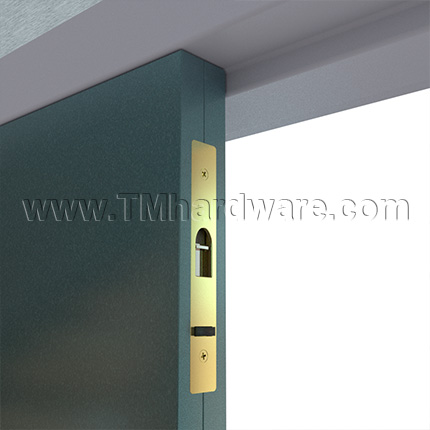

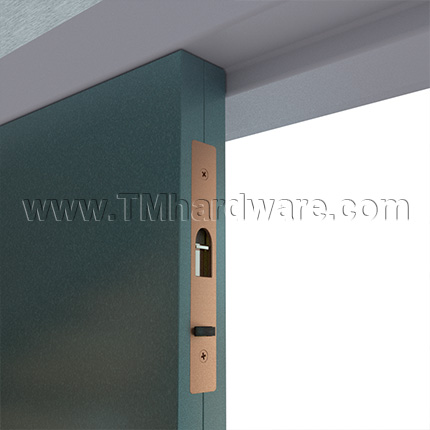

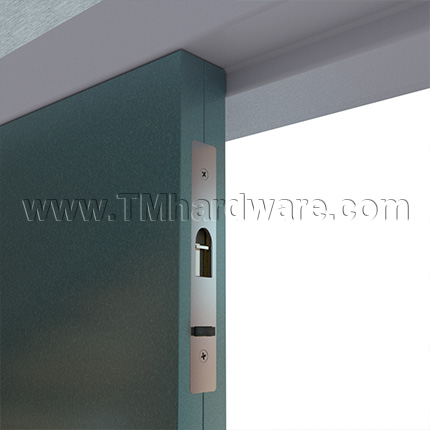

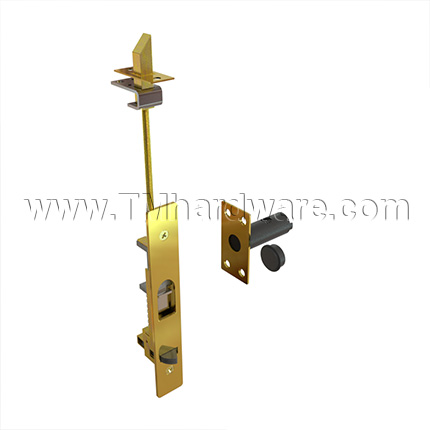

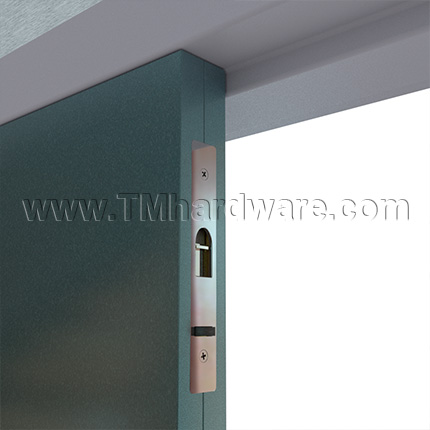

Ives FB52 Is a Constant Latching Flush Bolt with an Auxiliary fire Latch. Inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will re-latch automatically when closed. The Auxiliary Fire Latch eliminates the bottom bolt. This Flush Bolt is for use with metal doors, and is available in a large variety of finishes of your choice.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VSFB52 US3
    • Market price:$329.49
      • save 30%
    • Starting price: Price: $230.64 per item


    Ives FB52 is a Constant Latching Flush Bolt with an Auxiliary Fire Latch,for use with metal doors.

    Design:

    • Low actuation forces.
    • Non-handed.
    • Bolt throw is 3/4" with a 7/8" vertical adjustment.
    • Bolt backset is 3/4"
    • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.

    Dimensions:

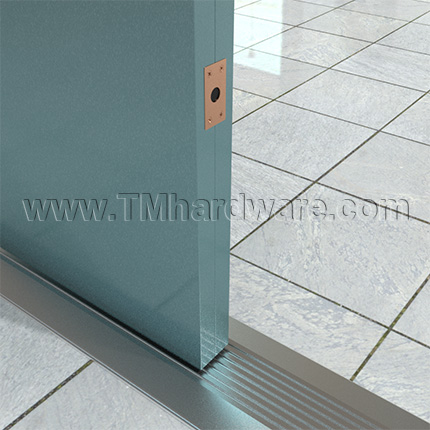

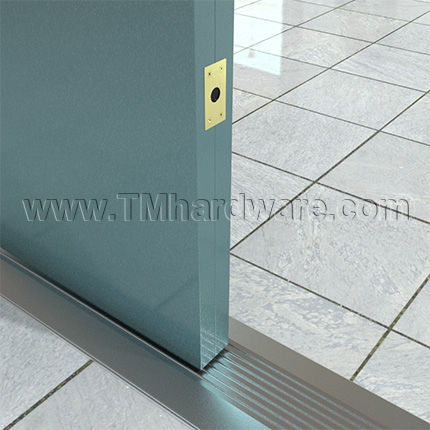

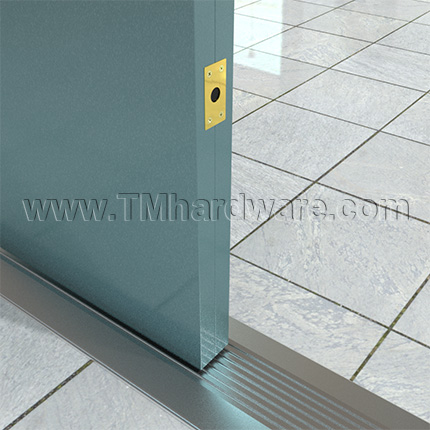

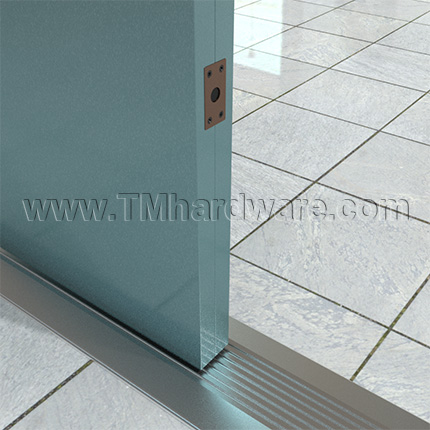

    • Auxiliary Fire Latch: 1" x 1-3/4" x 3-1/4"

    Additional Options Through Our office:

    • Security pin screws
    • DP1 and DP2 dust proof strike
    • Custom finishes
    • Optional rod lengths available for top bolt only on non-fire rated openings- 18", 24", 36" and 48".

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 1 year guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    Click to View Our Ives FB61P Constant Latching Flush Bolt

      • SKU
        VSFB52 US3
    • Mounting
      8-32 X 3/8" UFPHMS, 10-12 X1-1/4" Plastic anchor, 6-32 X 3/8 FPHMS, 6 X 3/4 FPHSMS, 8 X 1 FPHSMS, 10 X 1 FPHSMS
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      FB52
    • Dimensions
      • Body Size
        1" x 6-3/4" x 2"
      • Guide Size
        1" x 1-27/32" x 11/16" x 3/32"
      • Strike Size
        15/16" x 2-1/4" x 1/16"
      • Rub Plate Size
        1-1/4" x 1-11/16" x 3/64"
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Flat Black (US19), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        UL Listed 3 Hour fire doors 8’0" X 8’0"
      • ANSI Designation
        A156.3 Type 27
      • Warranty
        1 Year Limited Warranty
