Locinox Vinci Gate Lock, Mechanical Code with Secured Entrance and Exit, For Swing Gates

Locinox Vinci Gate Lock, Mechanical Code with Secured Entrance and Exit, For Swing Gates
Locinox

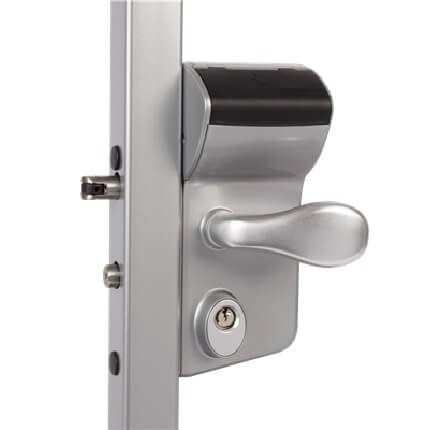

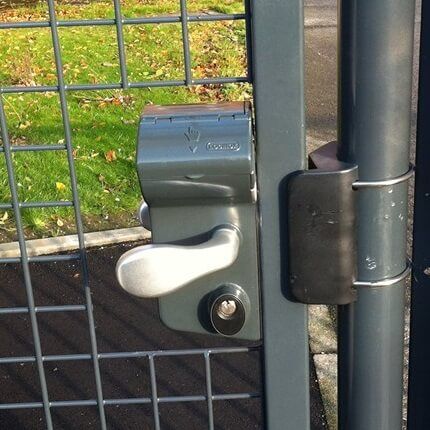

Surface mounted gate lock for swing gates that has a Vinci mechanical code lock to allow for a secured entrance and exit. The lock has a deadbolt to override the code panel and secure the gate. The latch bolt has 3/4" continuous adjustment to allow perfect latching of the locking mechanism. Available in several options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      LCLMKQ3030V2LZILVVSZC
    • Market price:$897.17
      • save 5%
    • Starting price: Price: $852.31 per item


    Locinox locks are essential for a good operating gate. Every lock is tested extensively in order to ensure that they will work in all weather conditions. This surface mounted gate lock has a Vinci mechanical code lock to allow for a secured entrance and exit.

    Profile: This gate lock is fit for two types of gate frames:

    • For flat frames (LMPQ)
      • Size: 3/8" to 1-1/4" (1010)
    • For square frames (LMKQ)
      • Size: 1-1/4" to 1-1/2" (3030)
      • Size: 1-1/2" to 2" (4040)
      • Size: 2-1/2" to 3" (6060)

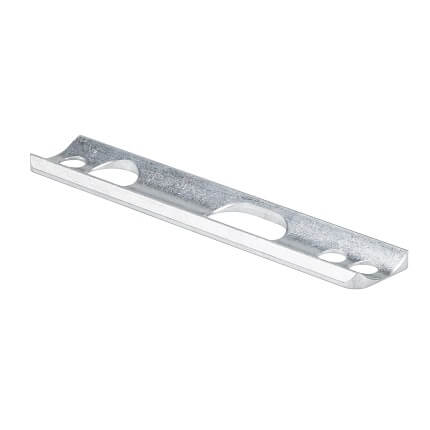

    Please note, this gate lock requires an adapter plate (3019LA-S-C-V) when installed on round chain link fences. A combined package of a gate lock for round frames and an adapter plate can be purchased, choose from the dropdown above.

    The CLH-CO tension bar (sold separately) is recommended to secure the gate lock in place on chain link fences.

    Features:

    • Swing gate lock with two sided code panel - secured entrance and exit
    • Independent entrance and exit codes

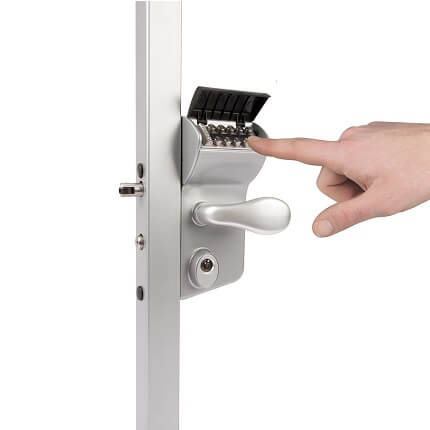

    • Easy and fast set-up or modification of the access codes
    • Polyamide rain and dust cover
    • Adjustable rollerbolt for easy closing
    • Extremely strong and user-friendly mechanism
    • Automatic code reset after opening by means of the handle
    • Anti-code detection with integrated security press plate
    • ISO 9227 KTL / E-coated lock box withstands 1,000 hours of salt spray / corrosion test
    • Easy left or right changing of the self-latching daybolt

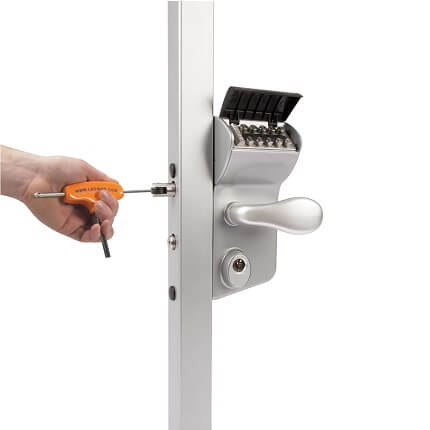

    • Adjustment of the bolts up to 3/4" continuous without removing the lock
    • 100% mechanical - no batteries or electricity are required
    • Can be fitted on round chain link fences with additional adapter plate
    • Interchangeable with all Locinox locks
    • Tested at 500,000 movements

    Applications:

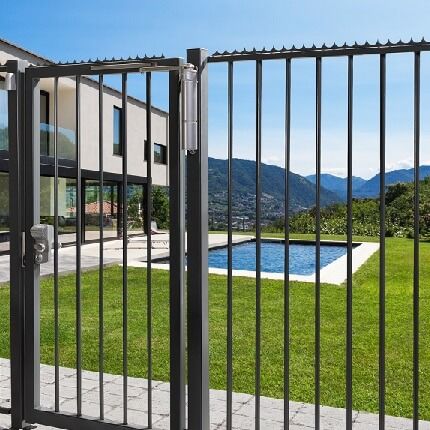

    • Residential - private homes, multi family living

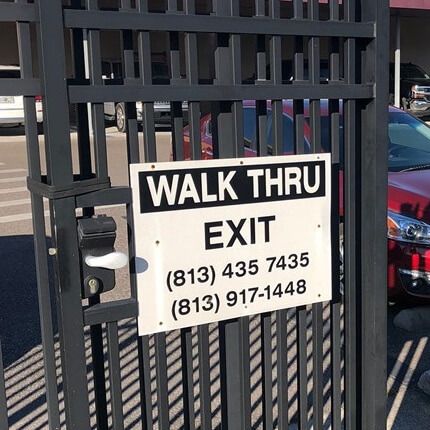

    • Commercial - businesses, construction zones
    • Facilities - schools, prisons, airports
    • Transportation - parking lots, bike parks
    • Recreation - playgrounds, amusement parks, sports stadiums, swimming pools

    Installation: For details on how to install this gate lock, see our Installation Instructions, or view video clip above.

    To ensure perfect alignment of the gate hardware, install this gate lock with the DRILLFIX drilling jig. See video clip above for details.

    Gate Hardware: This gate lock is compatible with all Locinox Swing Gate Keeps and Gate Closers. The keeps and closers can be ordered separately through our site.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 3 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Locinox Gate Closer MAMMOTH-HD, 180° Opening, For Gates up to 440 lbs.

      • SKU
        LCLMKQ3030V2LZILVVSZC
    • QuickShip
      Yes
    • Manufacturer
      Locinox
    • MPN
      LMKQV2 / LMPQV2
    • Product Details
      • Lock Type
        Mechanical Lock
      • Operation
        Mechanical Code Box
      • Material
        Exterior Aluminum, Interior Stainless Steel

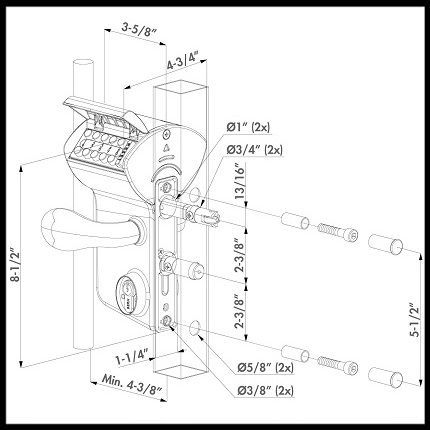

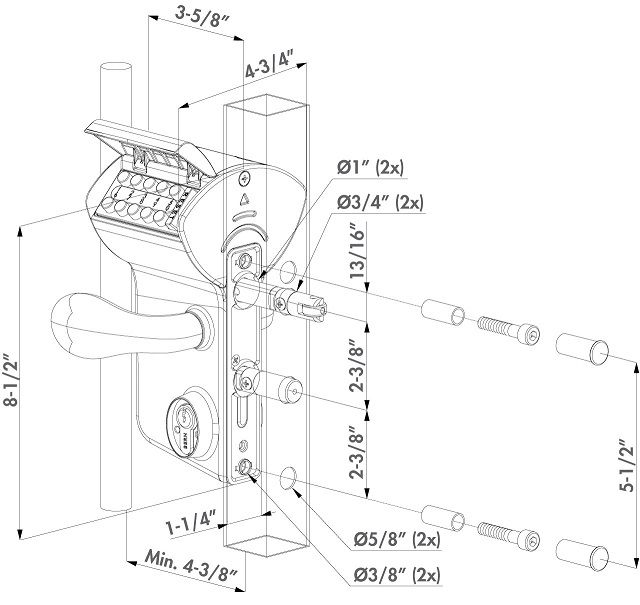

    • Dimensions
      • Gate Lock Dimensions
        3-5/8" L x 1-1/4" W x 8-1/2" H
      • Throw
        7/8" Throw
      • Distance Between Mounting Holes
        5-1/2" Distance
      • Distance Between Frame and First Picket
        4-3/8" Distance
      • Profile Dimensions
        3/8" to 1-1/4", 1-1/4" to 1-1/2", 1-1/2" to 2", 2-1/2" to 3"
    • Installation
      • Door Type
        Flat / Square Gate Frames, Round Gate Frames
    • Finishes
      • Finish
        Silver Powder Coat, Black
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Click to Print - Dimensions

    Click to Print - Architect and Engineering Specs



    LMKQ Product Specs
