Locinox LAKYF2 Small Surface Mounted Ornamental Gate Lock
Locinox LAKYF2 Small Surface Mounted Ornamental Gate Lock is a high-quality ornamental lock with a stainless steel mechanism and aluminum housing. We recommend this lock as a standard for all your decorative gates. The mechanism can be perfectly locked or latched thanks to its bolt, which features 10 mm of continuous adjustability. Secure locking is ensured by a sturdy stainless steel deadbolt with a 23 mm throw. Available in Black finish
PRICED PER PIECE
Locinox LAKYF2 Small Surface Mounted Ornamental Gate Lock is a high-quality ornamental lock with a stainless steel mechanism and aluminum housing. We recommend this lock as a standard for all your decorative gates. The mechanism can be perfectly locked or latched thanks to its bolt, which features 10 mm of continuous adjustability. Secure locking is ensured by a sturdy stainless steel deadbolt with a 23 mm throw.
Features:
- ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test

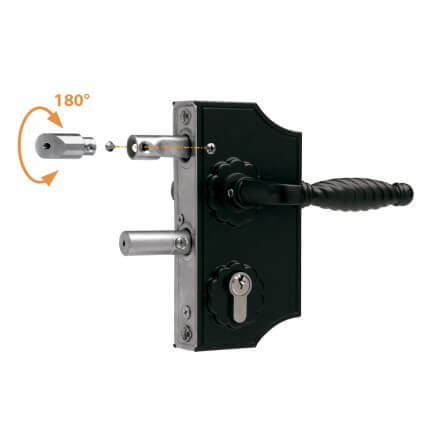

- Easy left or right changing of the self-latching daybolt
- 23 mm throw of the deadbolt, in 1 turn of the key

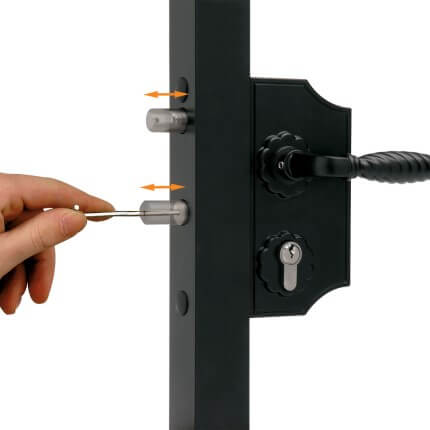

- Continuous adjustment of 10 mm for the bolts without removing the lock
- Key-operated self-latching bolt
- 4-hole fixing with two hexagon socket head screws
- 60 mm center distance of the bolts
- Handle: 3006FA
- Cylinder: VCA - Keyed to differ
- Finish: Black
Other Finishes:
- Pure White and Anthracite finishes are also available but may take longer to deliver due to availability. For orders, please contact our office
Installation: For details on how to install this gate lock, see our Installation Instructions
To ensure perfect alignment of the gate hardware, install this gate lock with the DRILLFIX drilling jig.
Gate Hardware: This gate lock is compatible with all Locinox Swing Gate Keeps and Gate Closers. The keeps and closers can be ordered separately through our site.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
This product has a 3-year warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
Click here to view our Locinox N-LINE-MAG-KIT, Set with N-LINE MAG profile, 2x MAGMAG3000 and 3006PULL
-
QuickShipYes
-
ManufacturerLocinox
-
MPNLAKYF2
- Product Details
-
Lock TypeMechanical Lock
-
MaterialStainless steel mechanism
-
Handle3006FA - Zamac handle pair
-

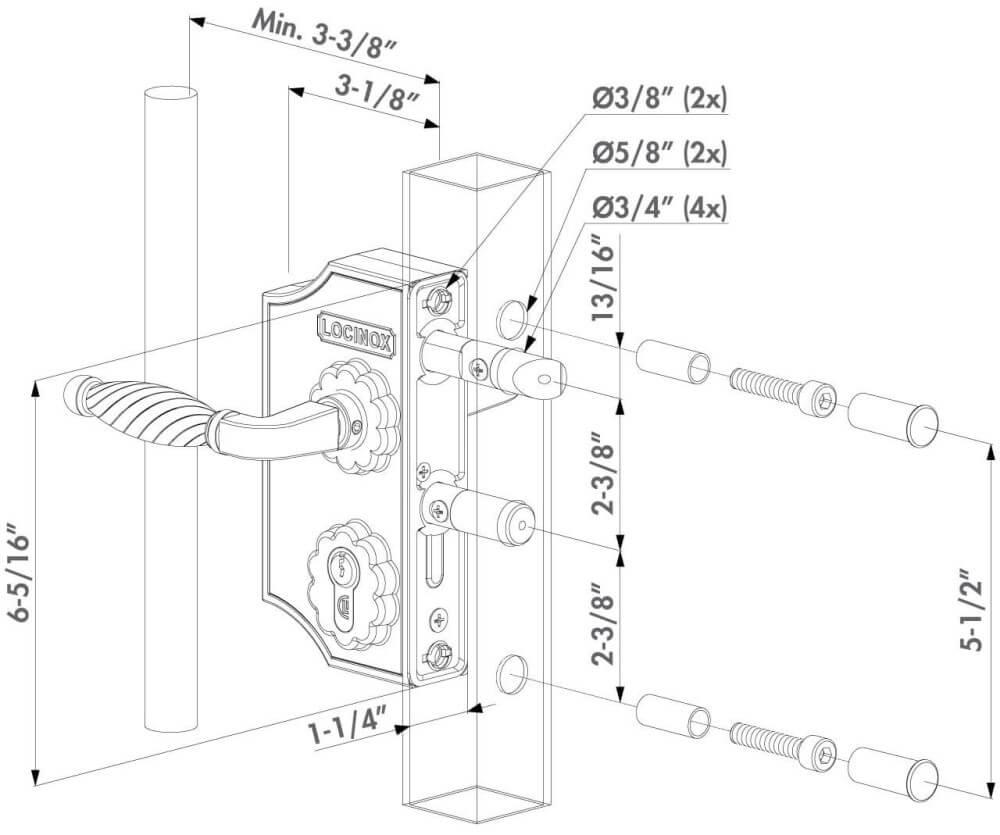

- Dimensions
-
Profile Dimensions3/8" to 7/8", 7/8" to 1-1/4", 1-1/4" to 1-1/2", 1-1/2" to 2", 2" to 2-3/8"
-
- Installation
-
Door TypeSquare Gate Frames
-
- Special Features
-
Field AdjustableYes
-
- Finishes
-
FinishBlack (9005)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
