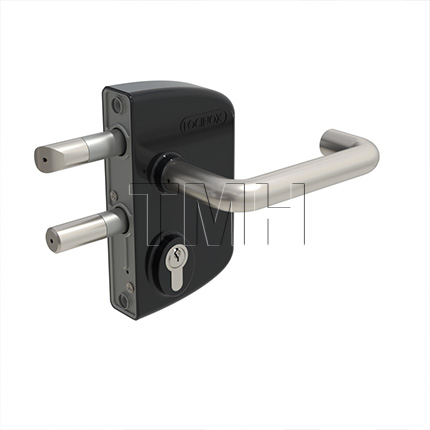

Locinox LPKQU2, Surface Mounted Anti-panic Gate Lock for Square Profile, VSZ - Keyed to differ
When using Locinox LPKQU2, Surface Mounted Anti-panic Gate Lock, just by turning the handle, anyone can head outdoors or escape from inside. By turning the cylinder, mechanical access from outside is always possible. Perfect latching and locking of the mechanism is made possible by the bolts' 3/4" continuous adjustability. A deadbolt made of solid stainless steel with a throw of 15/16" ensures a secure lock.
PRICED PER PIECE
When using Locinox LPKQU2, Surface Mounted Anti-panic Gate Lock, just by turning the handle, anyone can head outdoors or escape from inside. By turning the cylinder, mechanical access from outside is always possible. Perfect latching and locking of the mechanism is made possible by the bolts' 3/4" continuous adjustability. A deadbolt made of solid stainless steel with a throw of 15/16" ensures a secure lock.
Features:
- EN179 certified configuration available
- ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
- Easy left or right changing of the self-latching daybolt
- Throw of the dead bolt, 7/8" in 1 turn of the key
- Key-operated self-latching bolt
- 4-hole mounting with two hex head socket screws
- Center distance bolts: 2-3/8"
- Continuous adjustment of the daybolt up to 3/4" without removing the lock box
- Stainless steel mechanism
- Tested up to 500 000 movements
- Panic function E / Switch function
Other Finishes:
- Pure White and Anthracite finishes are also available but may take longer to deliver due to availability. For orders, please contact our office
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.
PRICED PER PIECE
This product has a limited warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.
Click here to view our Locinox LAKQU2, Surface Mounted Gate Lock with Aluminum Handle Pair & VSZ Cylinder
-
QuickShipYes
-
ManufacturerLocinox
-
MPNLPKQU2LVSZZ
-
Handle and CylinderNo Handle and Cylinder, Aluminum Half Handle and Cylinder
- Product Details
-
Lock TypeMechanical Lock
-
MaterialStainless steel mechanism
-
- Dimensions
-

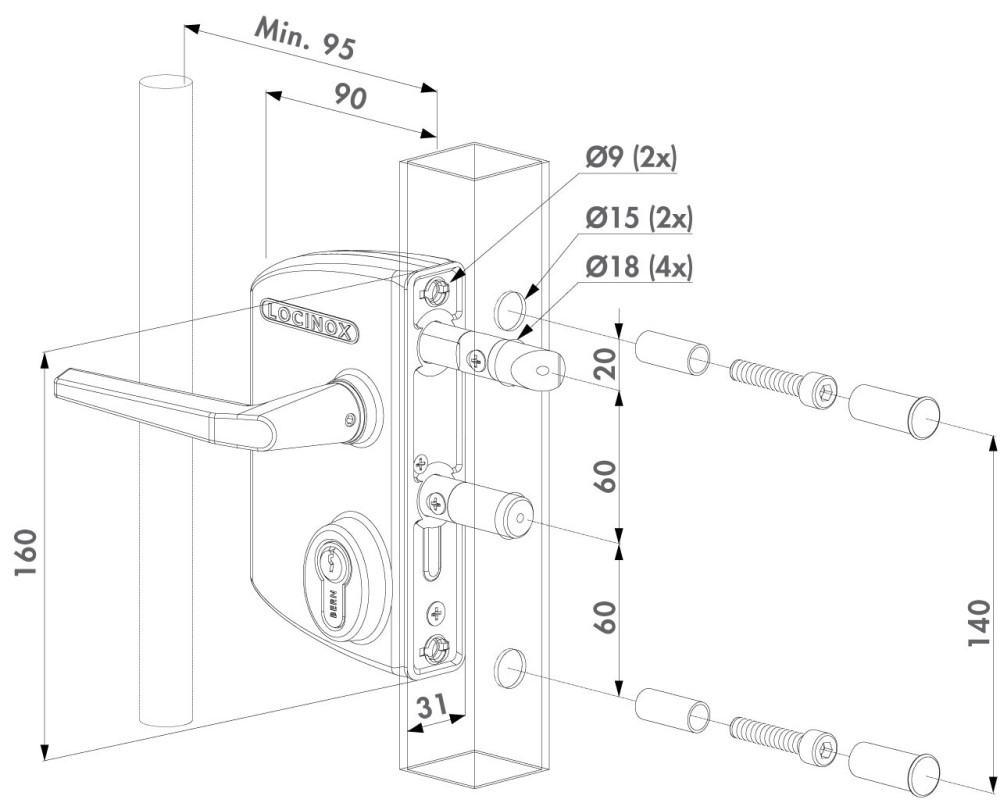

Gate Lock Dimensions3-35/64" L x 1-7/32" W x 6-19/64" H
-
Profile Dimensions1-1/2" to 2-1/2", 2-1/2" to 3"
-
- Installation
-
Door TypeSquare Gate Frames
-
- Finishes
-

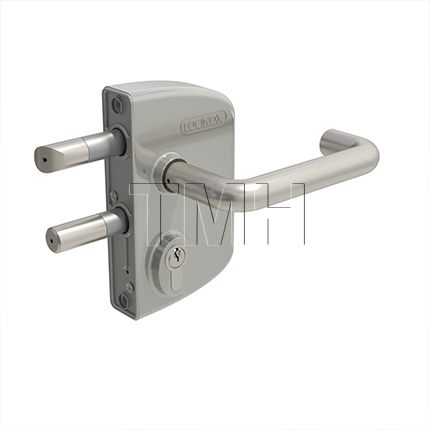

FinishBlack, silver
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
