McKinney MK100ME Electrified Concealed Hinge, Concealed Circuit or ElectroLynx® Configuration

Refined and minimal, the McKinney MK100 Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration.

These electrified options allow for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices. Wiring is not visible, which eliminates tampering and enhances the aesthetics of the door opening.

The snap-on covers conceal screws for a clean aesthetic.

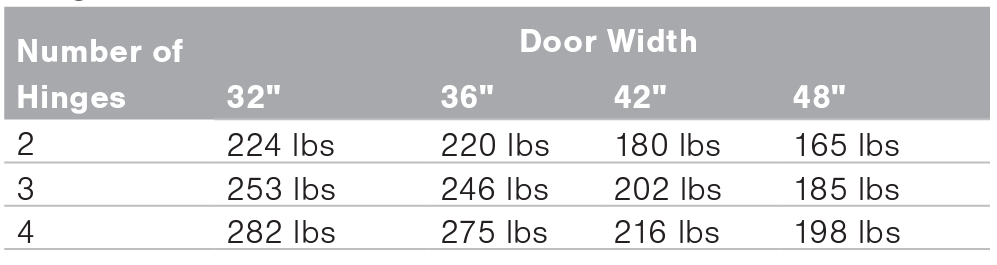

Hinge Capacity:

Features

• For wood or hollow metal doors that are a minimum of 1-3/8" thick
• Covers included
• Base Materials: Hinge body - zinc alloy, Hinge arms - aluminum, Hinge covers - ABS plastic
• 180° opening angle
• UL Listed for hollow metal, steel covered composite and wood core  fire doors rated 20 minutes
• 3-dimensional adjustability

Benefits:

• Greater hinge capacity than the MK4001A and MK80 Series

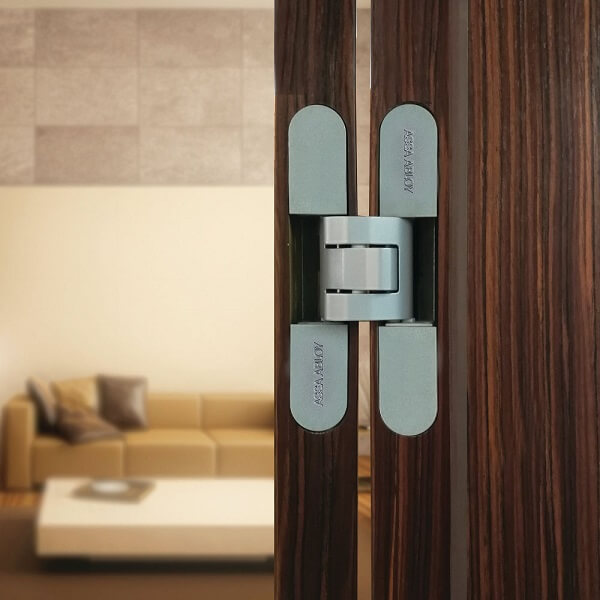

• Virtually disappears from view when door is closed
• Provides aesthetic continuity when door is open
• Refined and minimal
• Snap-on covers conceal screws for a clean aesthetic
• Easy installation and door alteration

Dimensions:

• 6-1/4" x 1-1/16"
• Gauge: 160.00
• No. of Holes: 8
• Fasteners: Metal: M5 x 20 screws, Wood: 35mm PHWS

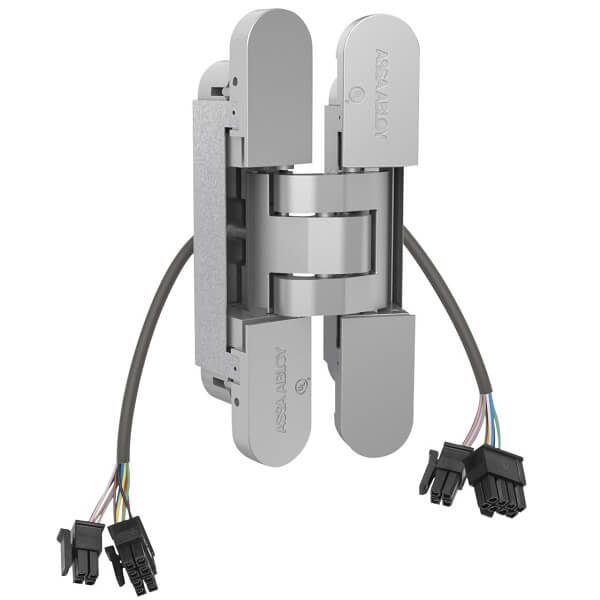

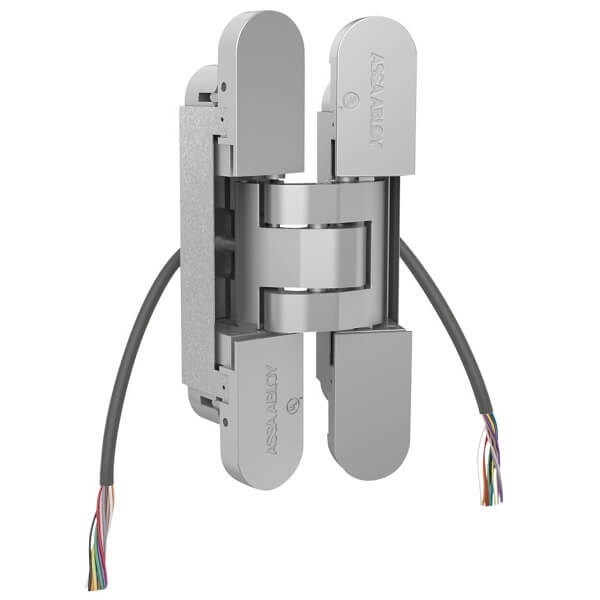

• Available in CC12 or QC12 configurations

PRICED PER HINGE

Can be purchased as standard hinge, see our McKinney MK100 Concealed Hinge for Heavy Hidden Doors.
