NGP 109N Meeting Stile, 1.75" Stainless Steel Overlapping Casing with .5" Neoprene Seal

NGP 109N Overlapping Meeting Stile in Stainless Steel

This item has been discontinued - For similar item see the NGP 125N meeting stile with 1" Stainless Steel casing

See tabs below for additional information

Length

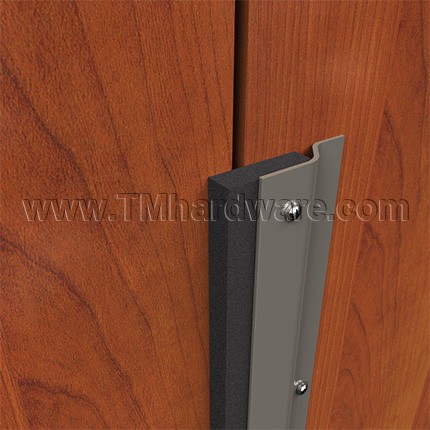

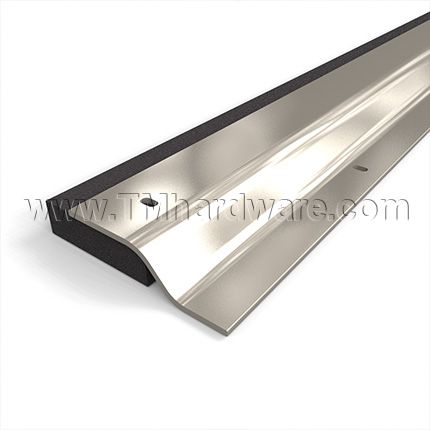

NGP 109N overlapping meeting stile is designed to be surface mounted to the face of a door to seal a gap between a pair of doors. This astragal is designed for Single Active Doors in a Double Door Set. Comes with 1.75" Stainless Steel casing and .5" Neoprene Seal.

Seals: Contains a Black .5" Neoprene Seal. It has very good abrasion resistance, tensile strength and memory

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Meeting Stiles see our NGP 114N Meeting Stile, .625" Aluminum Casing with .9375" Neoprene Seal

- SKU
  NG109NSS
QuickShip
No
Manufacturer
National Guard Products
MPN
109NSS
About This Product
- Retainer Material
  Stainless Steel
- Seal Type
  Neoprene
- Door Type
  Single active door in a double door set
- Mounting
  Surface Mounted
- Temperature Range
  -20°F thru 200°F

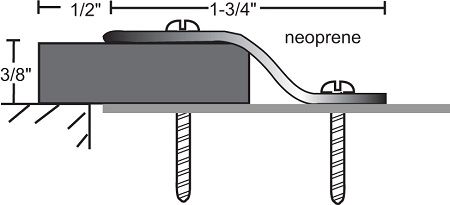

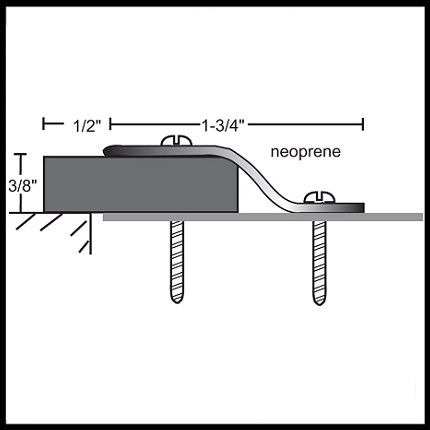

Dimensions
- Seal Height
  1-3/4" Height
- Total Height
  2-1/4" Height
- Width
  3/8" Width
- Size (Feet)
  Custom Cut to Size
Installation
- Installation Screws
  #6 x 3/4" and #6 x 1" stainless steel SMS screws provided
Finishes
- Finish
  Satin Stainless Steel (US32D)
Compliance Details
- Compliance Details
  Air Infiltration Rated, BHMA Certified
- ANSI Designation
  R3C635
- Warranty
  3 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Stainless Steel complies with ANSI/BHMA US32D / 630
