NGP 152S Door Gasket, .625" Aluminum Casing with .1875" Silicone Bulb Seal

NGP 152S Door Gasket, .625" Aluminum Casing with .1875" Silicone Bulb Seal

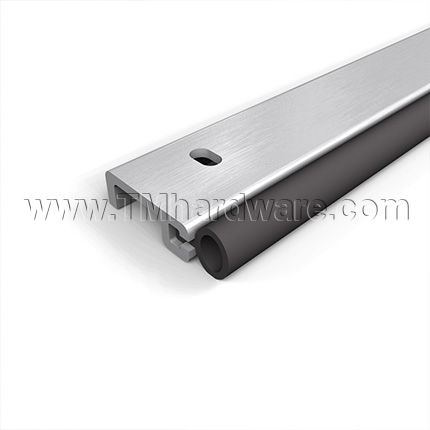

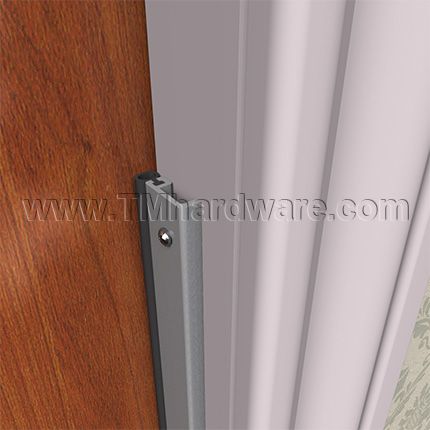

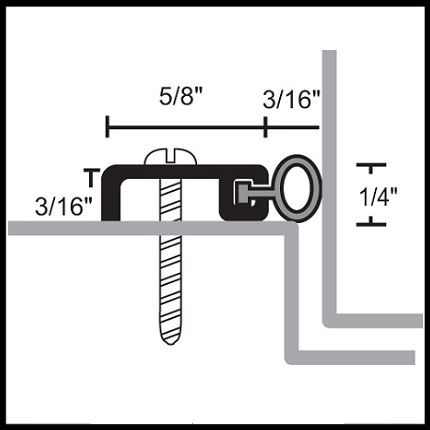

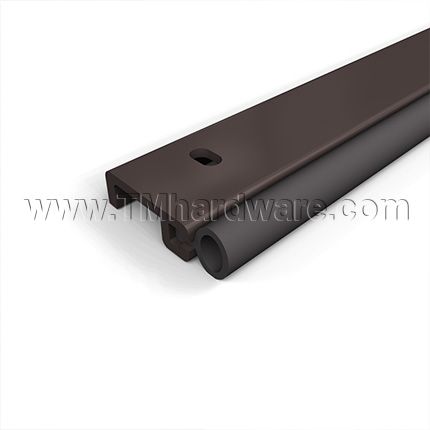

Product specs of NGP 152S Door Gasket NGP 152S Door Gasket, .625" Aluminum Casing with .1875" Silicone Bulb Seal NGP 152S Door Gasket, .625" Aluminum Casing with .1875" Silicone Bulb Seal in DKB Finish NGP 152S Door Gasket, .625" Aluminum Casing with .1875" Silicone Bulb Seal in MIL Finish applied to frame of door

NGP 152S Door Gasket is fitted with a .1875" silicone bulb seal, which seals the gap under and around doors. Casing measures .625" in height. Available in four anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $3.85
Length (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

NGP 152S Door Gasket Key Features:

Recommended for areas using FM200 or Halon Fire Suppression Systems

Casing Height: 5/8" (.625")

Casing Width: 3/16" (.1875")

Seal Height: 3/16" (.1875")

Seal Width: 1/4" (.25")

Total Width: 1/4" (.25")

Total Height: 13/16" (.8125")

Retainer Material: Aluminum alloy 6063, T5 temper.

Seal Material: Black Silicone Bulb. Seal has excellent flexibility, memory, and resistance to ozone, sunlight and aging.

Compliance Details: UL Listed; ANSI/BHMA Certified; Air Infiltration Rated; Smoke and Draft Control certified; Positive Pressure Rated.

Temperature Range: -100°F to 500°F, remains flexible at extreme temperatures

Finishes: Anodized Aluminum, Dark Bronze Anodized, Gold Anodized, Mill Aluminum.

InstallationInstallation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

 Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.

Click here to view our Full Warranty Policy.

For additional door gaskets, see our NGP 155S Door Gasket, .625" Aluminum Casing with .21875" Wide Silicone Bulb Seal

Product Specs
Compliance Details

Anodized Aluminum complies with ANSI/BHMA US28 / 628

Mill Aluminum complies with ANSI/BHMA US27 / 627
