NGP 161S Door Gasket, .07 Military Grade Aluminum Casing with .3125" Silicone Bulb Seal

NGP 161S Door Gasket, .07 Military Grade Aluminum Casing with .3125" Silicone Bulb Seal
National Guard Products

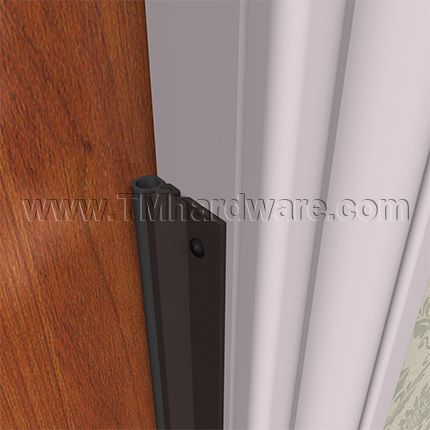

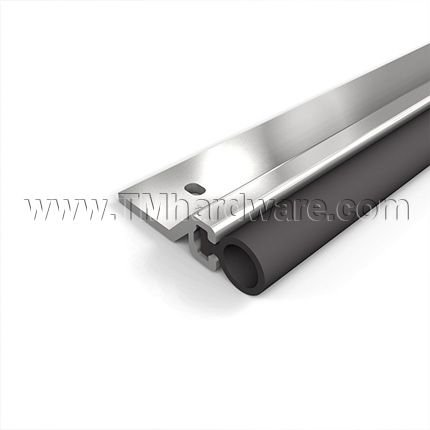

NGP 161S Door Gasket is fitted with a .3125" silicone bulb seal, which seals the gap under and around doors. Casing measures .875" in height. This gasket is made from .07 military grade aluminum. Available in two anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG161SA
    • Market price:$7.20
      • save 15%
    • Starting price: Price: $6.12 per foot


    NGP 161S Door Gasket Key Features:

    Recommended for areas using FM200 or Halon Fire Suppression Systems

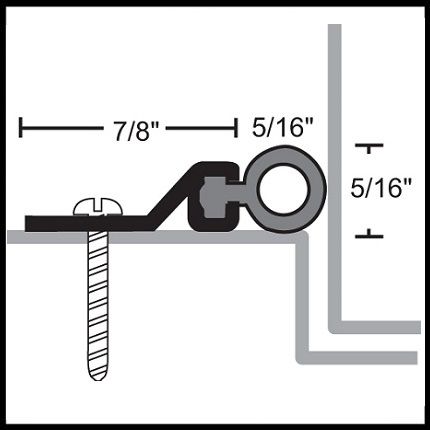

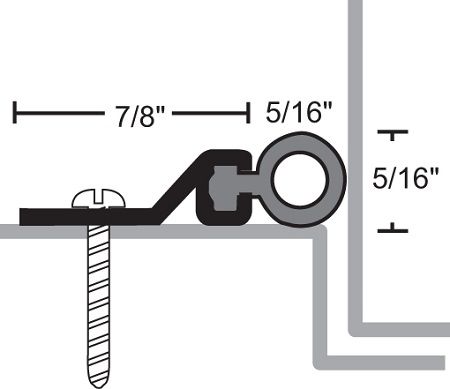

    Casing Height: 7/8" (.875")

    Seal Height: 5/16" (.3125")

    Total Height: 1-3/16" (1.1875")

    Total Width: 5/16" (.3125")

    Retainer Material: Aluminum alloy 6063, T5 temper; .07 miitary grade aluminum

    Seal Material: Black Silicone Bulb. Seal has excellent flexibility, memory, and resistance to ozone, sunlight and aging.

    Compliance Details: UL Listed; ANSI/BHMA Certified; Air Infiltration Rated; Smoke and Draft Control certified; Positive Pressure Rated.

    Temperature Range: -100°F to 500°F, remains flexible at extreme temperatures

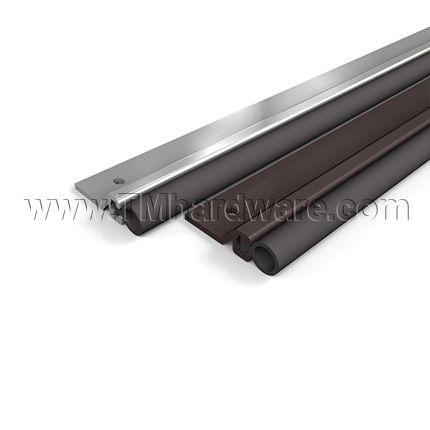

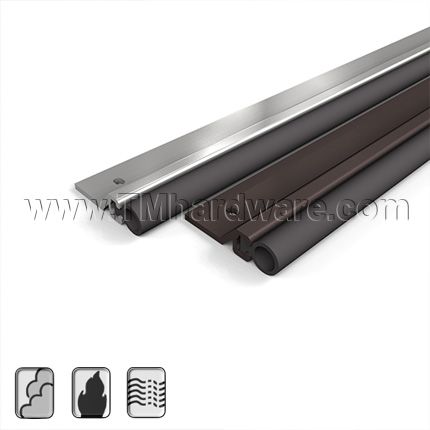

    Finishes: Anodized Aluminum, Dark Bronze Anodized.

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

    Mounting Options:

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

     Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.


    This product has a 3 year guarantee against defects in material and workmanship.

    Click here to view our Full Warranty Policy.

    For additional door gaskets, see our NGP 162S Door Gasket, .875" Aluminum Casing with .25" Silicone Bulb Seal

      • SKU
        NG161SA
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      161S
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
    • Mounting
      Screws, Screws + Adhesive
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Clear Anodized Aluminum (US28)

    Anodized Aluminum complies with ANSI/BHMA US28 / 628
