Home > Door Seals > Door Bottoms/Sweeps > Rubber Door Bottoms > NGP 198 Door Sweep, .875" Aluminum Casing with 1" Neoprene Seal

NGP 198 Door Sweep, .875" Aluminum Casing with 1" Neoprene Seal

NGP 198 Door Sweep, .875" Aluminum Casing with 1" Neoprene Seal

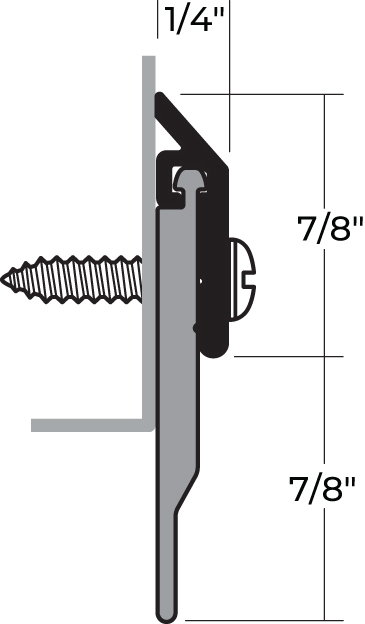

Product specs of NGP 198N Door Sweep Actual image of NGP 198N Door Sweep NGP 198 Door Sweep, .875" Aluminum Casing with 1" Neoprene Seal NGP 198 Door Sweep, .875" Aluminum Casing with 1" Neoprene Seal in Anodized Aluminum Finish NGP 198 Door Sweep, .875" Aluminum Casing with 1" Neoprene Seal in DKB Finish applied to bottom of door

NGP 198N door sweep, with a .875" aluminum casing, is fitted with a 1" neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Casing comes with choice of finishes. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $5.75
Length (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

NGP 198N Door Sweep Key Features:

Casing Height: 7/8" (.875" )

Seal Height: 1"

Total Height: 1-7/8" (1.875")

Retainer MaterialAluminum alloy 6063, T5 temper

Seal Material: Black Neoprene. Seal has very good abrasion resistance, tensile strength, and memory.

Temperature Range: -20°F to 200°F

Finishes: Anodized Aluminum, Dark Bronze Aluminum, Gold Aluminum

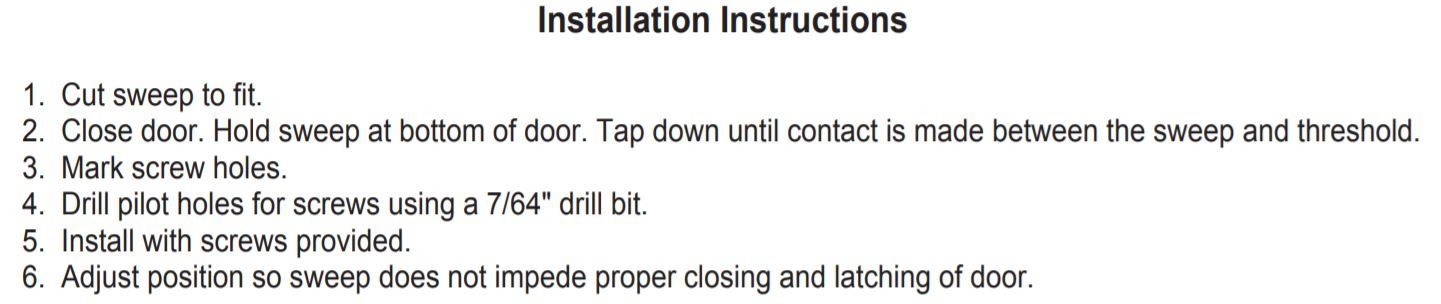

Installation: Installation Guide and #6 x 1" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

Compliance Details: Fire, Smoke and Air Infiltration Rated, BHMA and UL Certified, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

See also our NGP 198U Door Sweep, .875" Aluminum Casing with .875" Polyurethane Seal

Product Specs
Compliance Details

The following finishes comply with ANSI/BHMA Codes

  • Anodized Aluminum US28 / 628

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.
  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
