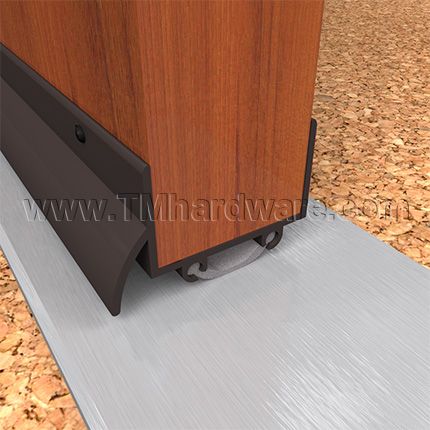

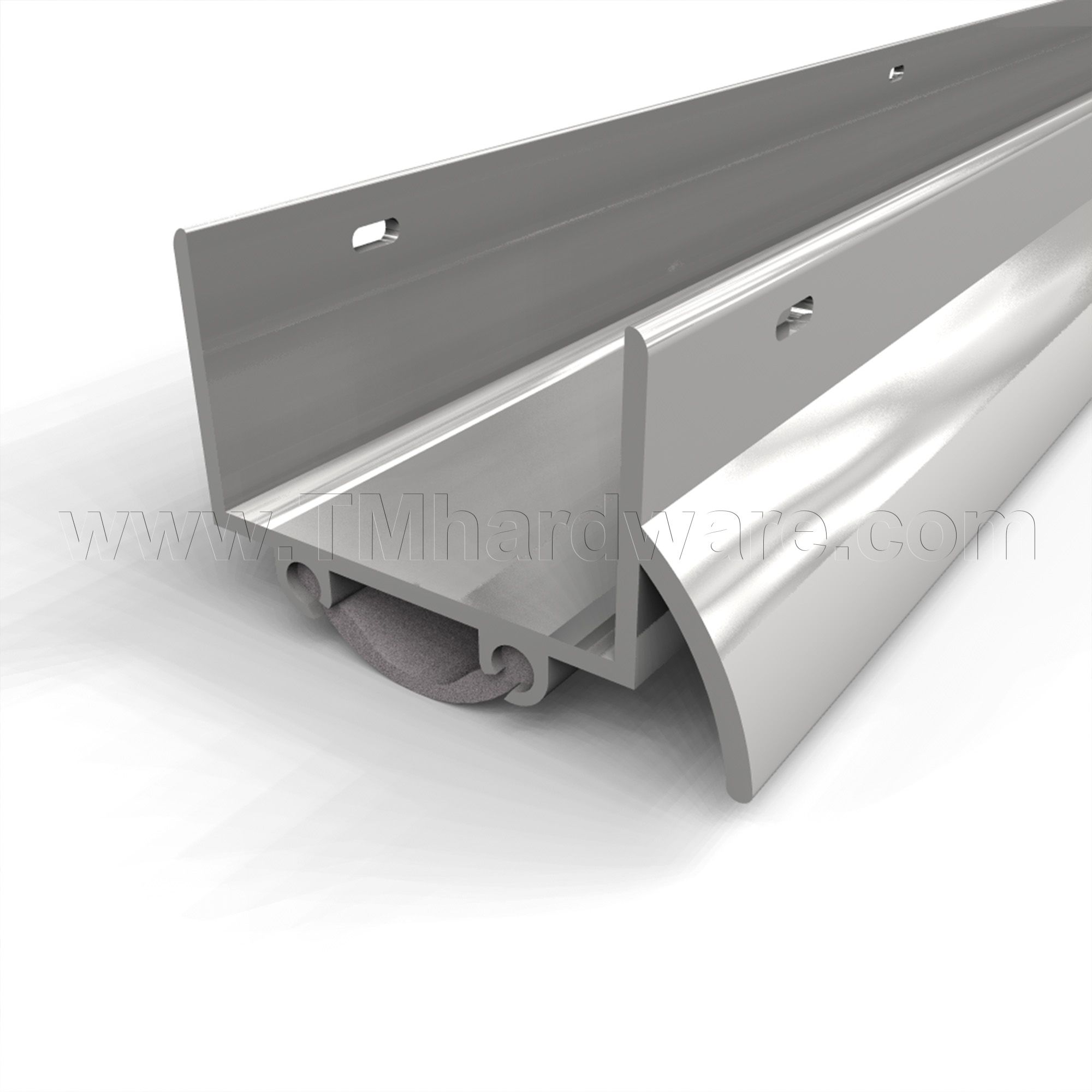

NGP 19V Door Shoe Sweep, U Shaped Aluminum Casing with Rain Drip, .5" Vinyl Seal

NGP 19V Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5". It has a rain drip design which provides extra protection against water seepage. It is compatible with doors 1.75" thick. Comes with a Vinyl seal. Available in various aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG19V_MIL
    • Market price:$11.00
      • save 15%
    • Starting price: Price: $9.35 per foot


    NGP 19V Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5". It has a rain drip design which provides extra protection against water seepage.

    Seals: Contains a .5" Gray Vinyl Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

    Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.

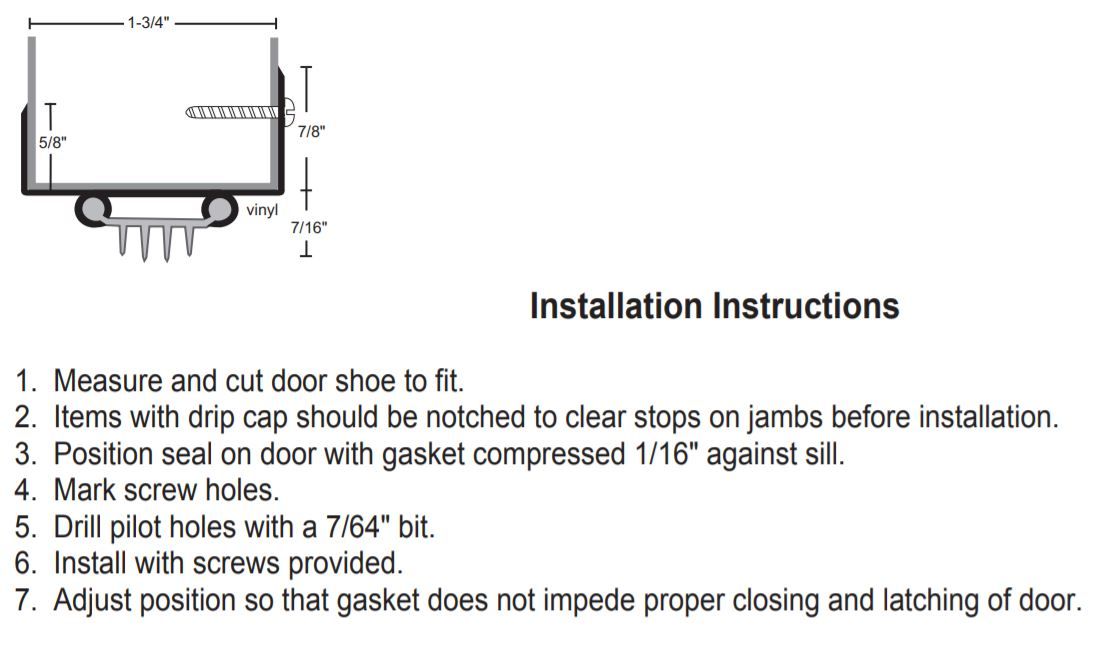

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our
    Full Warranty Policy.

    For additional Door Shoes see our NGP 5V Door Shoe Sweep, U Shaped Aluminum Casing with .25" Vinyl Seal

      • SKU
        NG19V_MIL
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      19V
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        °F thru 140°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Vinyl Rubber Seal
      • Mounting
        Door Shoe Mount

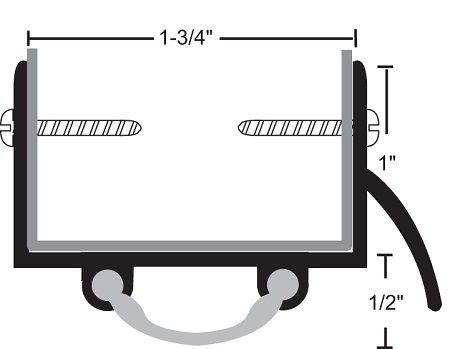

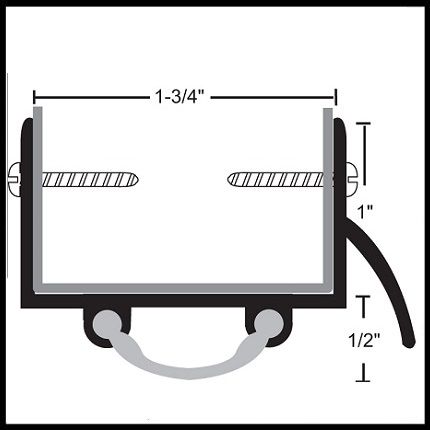

    • Dimensions
      • Seal Height
        1/2" Height
      • Total Height
        1-1/2" Height
      • Additional Dimensions
        Door seal is 1-3/4" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel SMS
    • Special Features
      • Rain Drip Cap
        Yes
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Smoke Rated, Fire Rated, Air Infiltration Rated, UL Classified
      • Warranty
        3 Year Limited Warranty

    Mill Finish Aluminum complies with ANSI/BHMA US27 / 627
