Home > Door Seals > Door Shoes > Rubber Door Shoes > NGP 318V Door Shoe Sweep, L Shaped Aluminum Casing with Rain Drip and a .4375" Vinyl Finned Seal

NGP 318V Door Shoe Sweep, L Shaped Aluminum Casing with Rain Drip and a .4375" Vinyl Finned Seal

NGP 318V Door Shoe Sweep, L Shaped Aluminum Casing with Rain Drip and a .4375" Vinyl Finned Seal

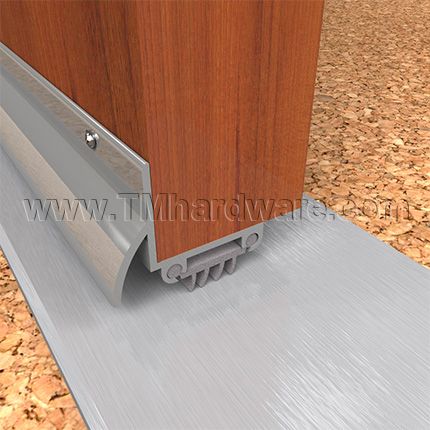

Product specs of NGP 318V Door Shoe Sweep NGP 318V Door Shoe Sweep, L Shaped Aluminum Casing with Rain Drip and a .4375" Vinyl Finned Seal NGP 318V Door Shoe Sweep, L Shaped Aluminum Casing with Rain Drip and a .4375" Vinyl Finned Seal in DKB Finish NGP 318V Door Shoe Sweep, L Shaped Aluminum Casing with Rain Drip and a .4375" Vinyl Finned Seal in MIL Finish applied to bottom of door
0.0

NGP 318V Door Shoe with L Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .4375".  It has a rain drip design which provides extra protection against water seepage. It is compatible with doors at least 1.1875" thick. Comes with a Vinyl Finned seal. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $5.40
Finish
Length (Inches)
Qty
Save to wishlist
Made in USA
SKU N318V_MIL
Shipping See Shipping Tab Below
Description

NGP 318V Door Shoe, L Shaped Aluminum Casing with Raind Drip and a  .4375" Vinyl Seal Key Features:

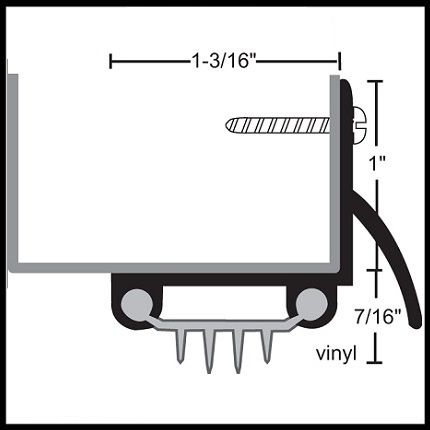

Dimensions: Casing has a width of 1.1875" and extends the face of the door 1". Length is custom cut to size.

Casing Material: Aluminum alloy 6063, T5 temper

Door Compatibility: Metal or Wood Doors, at least 1.1875" thick

Seals: Contains a .4375" Gray Vinyl Finned Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.

Effective Temperature Range: 0°F thru 140°F

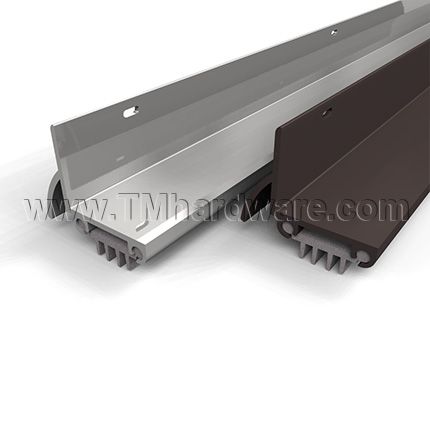

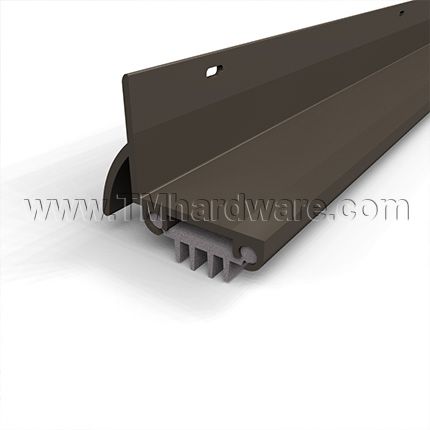

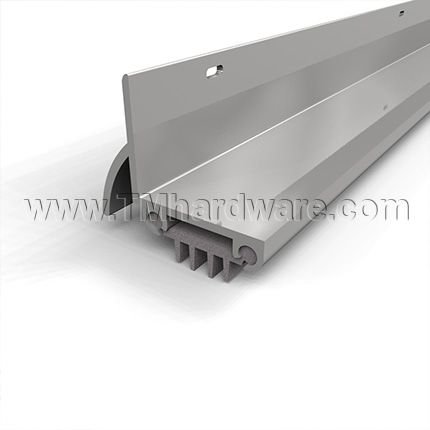

Available Finishes: Mill Aluminum, Dark Bronze Anodized

Compliance Details: UL Certified, Positive Pressure Certified, Smoke Rated, Air Infiltration Tested.

Installation: The L-Shaped retainer is not as sturdy as the U-Shaped Version for 1.75" Doors, however it has the advantage of being able to be installed without removing the door. Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 319EV Door Shoe Sweep, U Shaped Aluminum with Rounded Edges, Rain Drip, and .4375" Vinyl Finned Seal

Product Specs
Compliance Details

Mill Aluminum complies with ANSI/BHMA US27 / 627
