NGP 319ET Door Shoe Sweep, U Shaped Aluminum with Rain Drip and .6875" Thermoplastic Triple Fin Seal

NGP 319ET Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .6875". It is compatible with 1.75" doors thick. It has a rain drip design which provides extra protection against water seepage. Comes with a thermoplastic triple fin seal. Available in two aluminum finishes and length is custom cut to size up to 48".

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Length
Add Unnotched Seal

Quantity

Add to compare

Seals: Contains a .6875" Brown Triple Fin Seals. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 12T Door Shoe Sweep, Aluminum Track with a .6875" Thermoplastic Triple Fin Seal

- SKU
  NG319ET_MIL
QuickShip
No
Manufacturer
National Guard Products
MPN
319ET
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  0°F thru 140°F
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Thermoplastic
- Mounting
  Door Shoe Mount

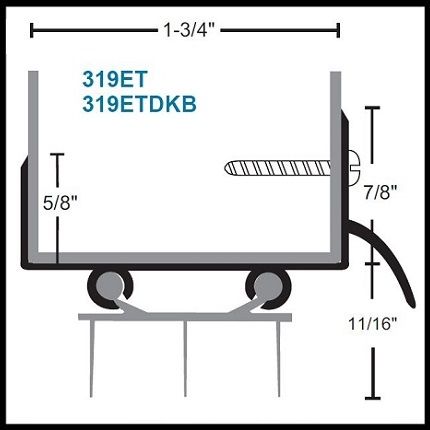

Dimensions
- Seal Height
  11/16" Height
- Total Height
  1-9/16" Height
- Length
  Custom Cut to Size
- Door Thickness
  1-3/4" Thick
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 3/4" stainless steel SMS screws provided
Special Features
- Rain Drip Cap
  Yes
Finishes
- Finish

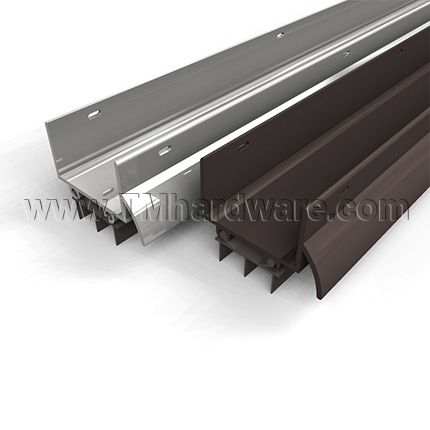

  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  UL Classified, Smoke Rated, Air Infiltration Rated
- Warranty
  3 Year Limited Warranty

Click to Print

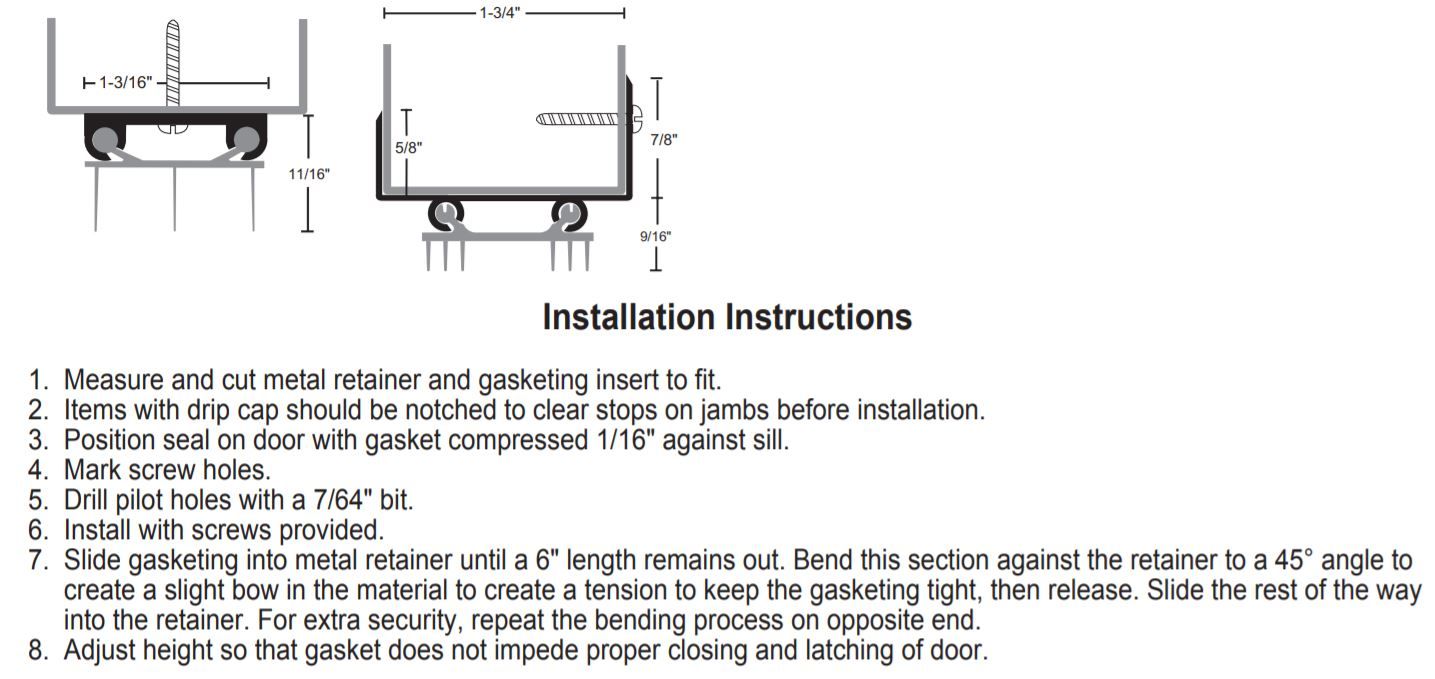

Click to Print Installation Guide

Mill Aluminum complies with ANSI/BHMA US27 / 627
