NGP 319ET6 Door Shoe Sweep, U Shaped Aluminum with Rain Drip and Two .5625" Thermoplastic Triple Fin Seals

NGP 319ET6 Door Shoe Sweep, U Shaped Aluminum with Rain Drip and Two .5625" Thermoplastic Triple Fin Seals
National Guard Products

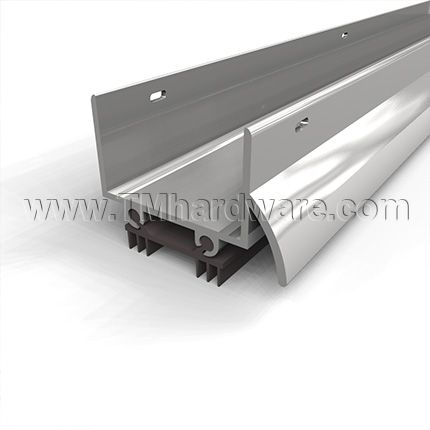

NGP 319ET6 Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5625". It is compatible with 1.75" doors thick. It has a rain drip design which provides extra protection against water seepage. Comes with 2 thermoplastic triple fin seals. Available in two aluminum finishes and length is custom cut to size up to 48".

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG319ET6-MIL
    • Market price:$10.05
      • save 15%
    • Starting price: Price: $8.54 per foot


    NGP 319ET6 Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5625". It is compatible with 1.75" doors thick. It has a rain drip design which provides extra protection against water seepage.

    Seals: Contains two .5625" Brown Triple Fin Seals. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

    Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional Door Shoes see our NGP 12T6 Door Shoe Sweep, Aluminum Track with Two .5625" Thermoplastic Triple Fin Seals

      • SKU
        NG319ET6-MIL
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      319ET6
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        0°F thru 140°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Thermoplastic
      • Mounting
        Door Shoe Mount

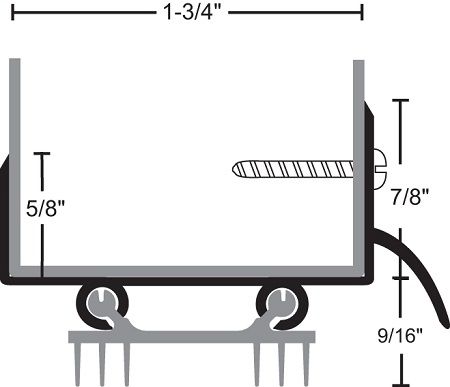

    • Dimensions
      • Seal Height
        9/16" Height
      • Total Height
        1-7/16" Height
      • Additional Dimensions
        Casting is 5/8"
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel SMS
    • Special Features
      • Rain Drip Cap
        Yes

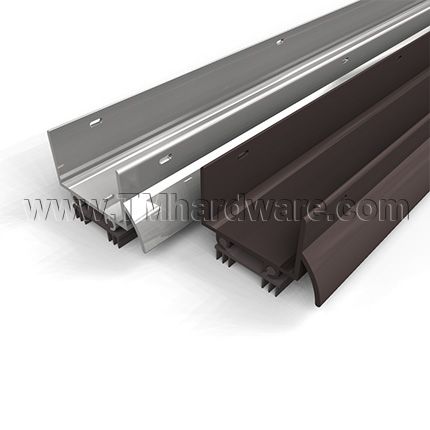

    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        UL Classified, Smoke Rated, Air Infiltration Rated
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA US27 / 627
