NGP 35ET6 Door Shoe Sweep, U Shaped Aluminum with Two .3125" Thermoplastic Triple Fin Seals for Hollow Metal Doors

NGP 35ET6 Door Shoe Sweep, U Shaped Aluminum with Two .3125" Thermoplastic Triple Fin Seals for Hollow Metal Doors

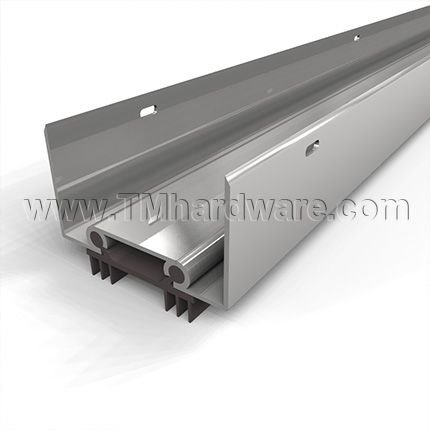

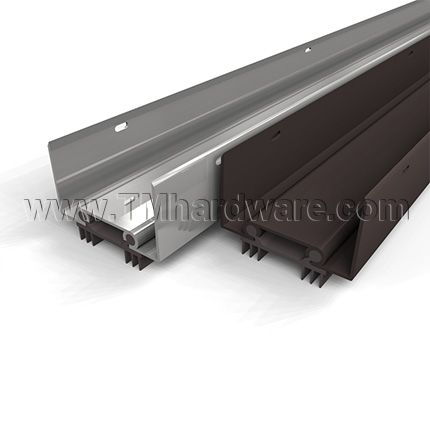

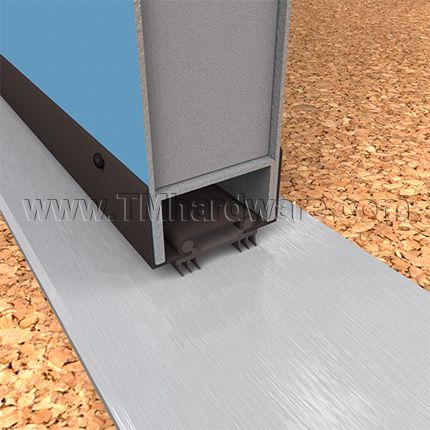

Product specs of NGP 35ET6 Door Shoe Sweep NGP 35ET6 Door Shoe Sweep, U Shaped Aluminum with Two .3125" Thermoplastic Triple Fin Seals for Hollow Metal Doors NGP 35ET6 Door Shoe Sweep, U Shaped Aluminum with Two .3125" Thermoplastic Triple Fin Seals for Hollow Metal Doors in MIL Finish NGP 35ET6 Door Shoe Sweep in DKB Finish applied to bottom of hollow metal door
0.0

NGP 35ET6 Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .3125". It is compatible with hollow metal doors 1.75" thick. Comes with 2 thermoplastic triple fin seals. Available in two aluminum finishes and length is custom cut to size up to 48".

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $7.85
Finish
Length (Inches)
Qty
Save to wishlist
Made in USA
SKU N35ET6_MIL
Shipping See Shipping Tab Below
Description

NGP 35ET6 Door Shoe, U Shaped Aluminum Casing with Two .3125" Triple Fin Seals Key Features:

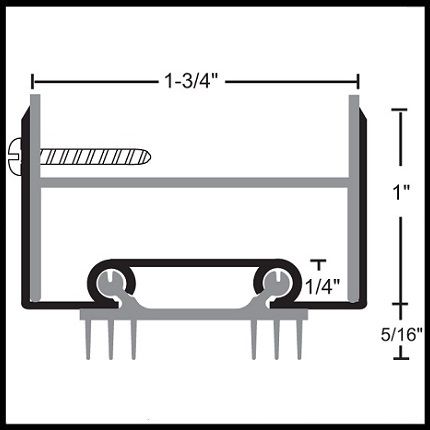

Dimensions: Casing has a width of 1.75" and heigth of 1". Length is custom cut to size up to 48".

Casing Material: Aluminum alloy 6063, T5 temper

Door Compatibility: Hollow Metal Doors, 1.75" Thick

Seals: Contains two .3125" Brown Triple Fin Seals. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Effective Temperature Range: 0°F thru 140°F

Available Finishes: Mill Aluminum, Dark Bronze Anodized

Compliance Details: UL Certified, Positive Pressure Certified, Smoke Rated, Air Infiltration Tested.

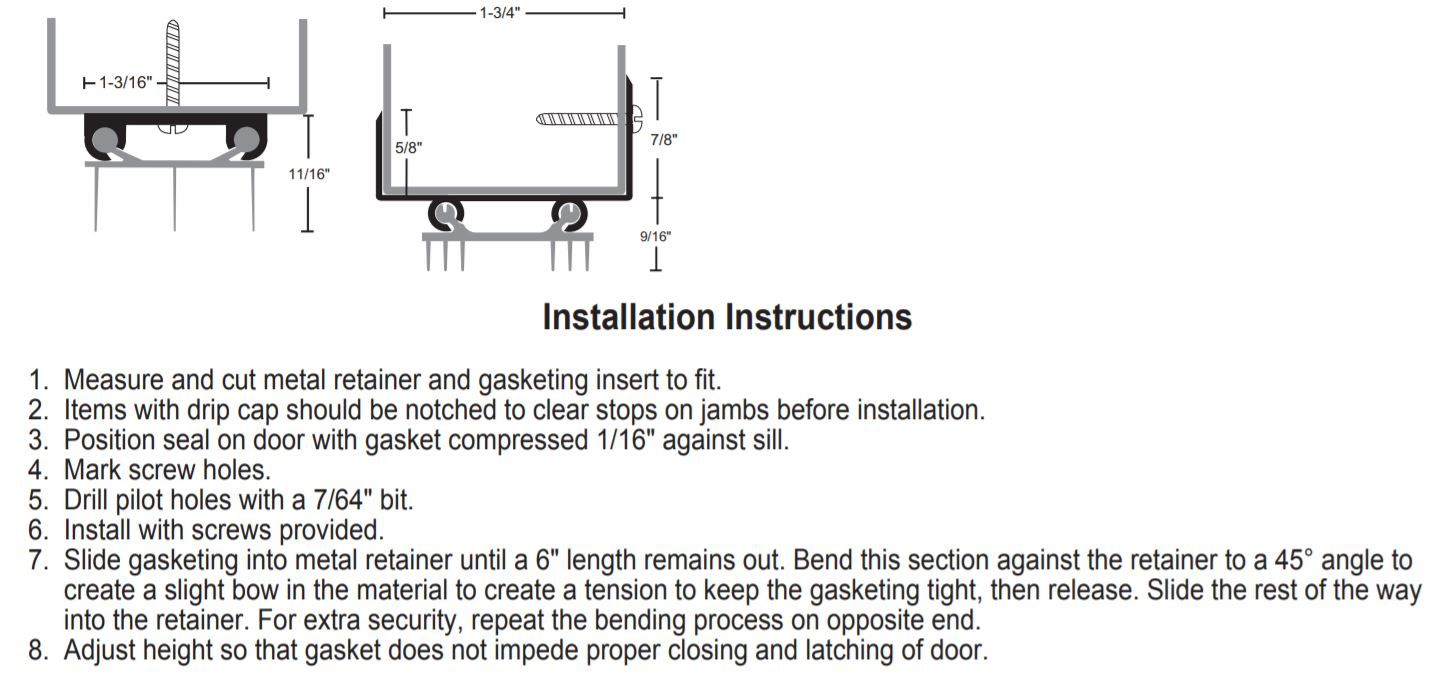

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 36ET6 Door Shoe Sweep, U Shaped Aluminum Casing with Two .5675" Thermoplastic Triple Fin Seals
