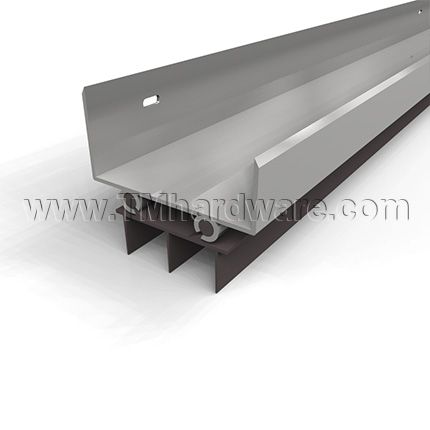

NGP 36ET Door Shoe Sweep, U Shaped Aluminum Casing with .875" Thermoplastic Triple Fin Seals

NGP 36ET Door Shoe Sweep, U Shaped Aluminum Casing with .875" Thermoplastic Triple Fin Seals
National Guard Products

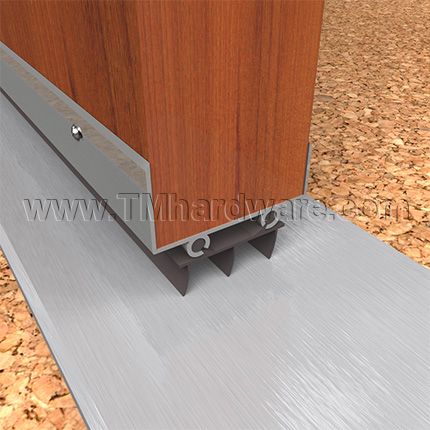

NGP 36ET Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .875". It is compatible with doors 1.75". Comes with a thermoplastic triple fin seal. Available in two aluminum finishes and length is custom cut to size up to 48".

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG36ET_MIL
    • Market price:$9.70
      • save 15%
    • Starting price: Price: $8.25 per foot


    NGP 36ET Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .875". It is compatible with doors 1.75".

    Seals: Contains a .875" Brown Triple Fin Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

    Notched Fins: The notched fins allow air flow while restricting light. Select from the options above.

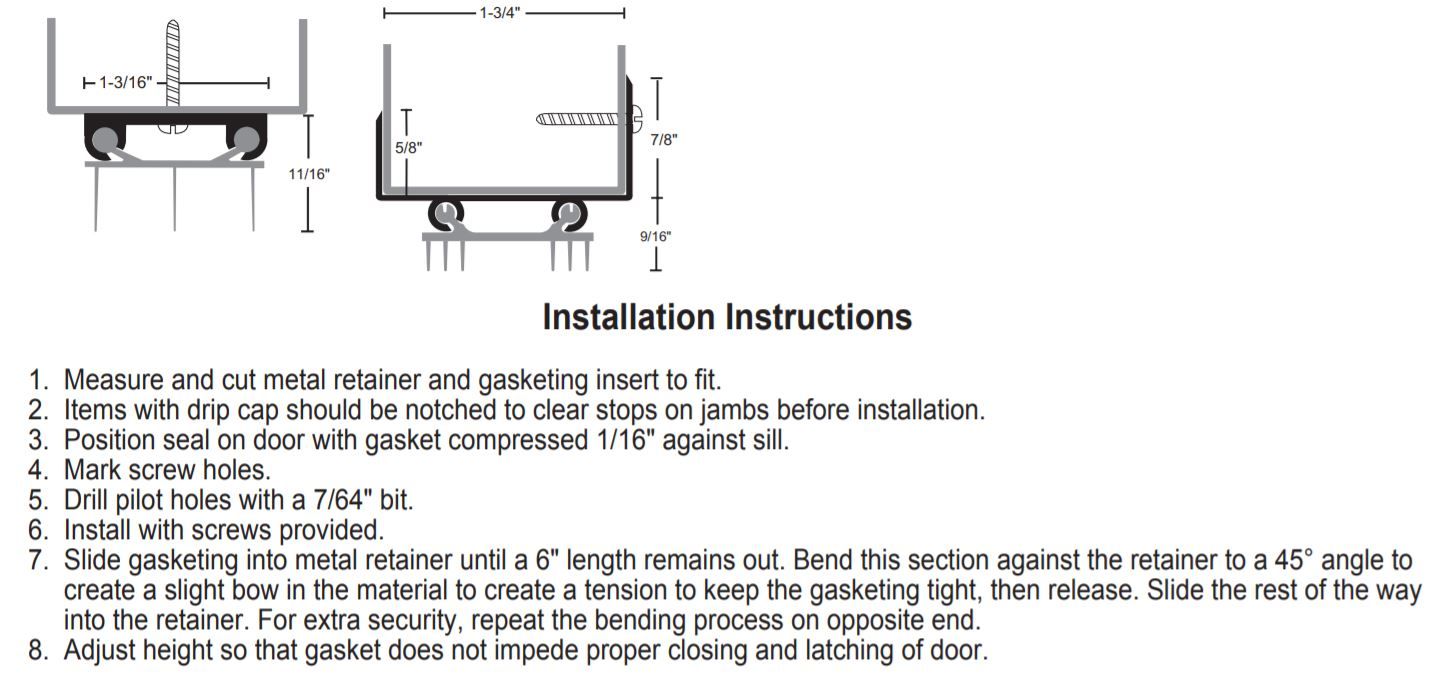

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional Door Shoes see our NGP 319ET Door Shoe Sweep, U Shaped Aluminum Casing with Rain Drip and .6875" Thermoplastic Triple Fin Seal

      • SKU
        NG36ET_MIL
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      36ET
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        0°F thru 140°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Thermoplastic
      • Mounting
        Door Shoe Mount

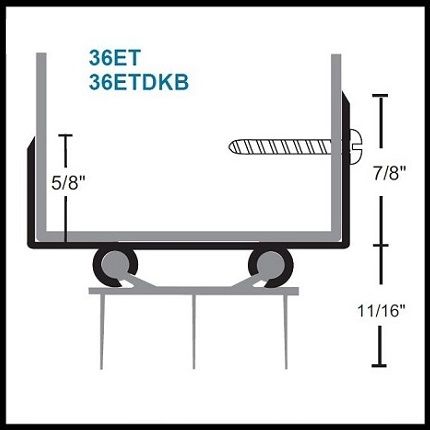

    • Dimensions
      • Seal Height
        11/16" Height
      • Total Height
        1-9/16" Height
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel SMS screws provided
    • Finishes
      • Finish

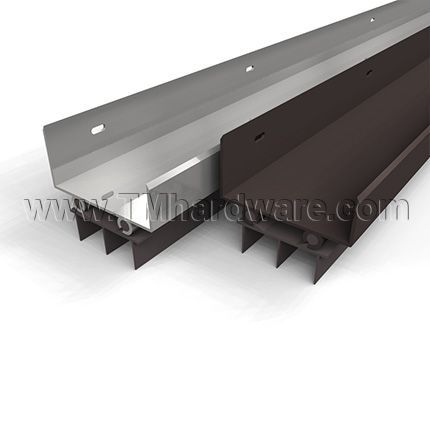

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        UL Classified, Smoke Rated, Air Infiltration Rated
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA US27 / 627


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, resalable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
