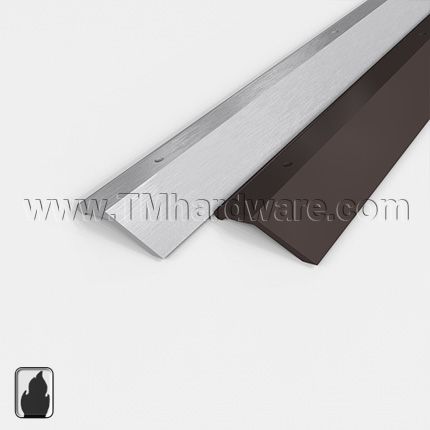

NGP 416 Carpet Edge Divider, 1.4375" Aluminum, .5" Height
NGP 416 Carpet Divider is available in two aluminum finishes, and is used to create a smooth transition between carpet and the adjacent tile flooring to keep the carpet's edge from fraying. In addition, it provides a solid surface for a door sweep or door bottom to close against. It is 1.4375" wide and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 416 Carpet Edge Divider Key Features:
Material: Aluminum alloy 6063, T5 temper
Width: 1.4375" (1-7/16")
Height: .5" (1/2")
Length: Custom cut to size.
Weight: .19 lbs/ft.
Finishes: Mill Finish Aluminum, Dark Bronze Anodized Aluminum

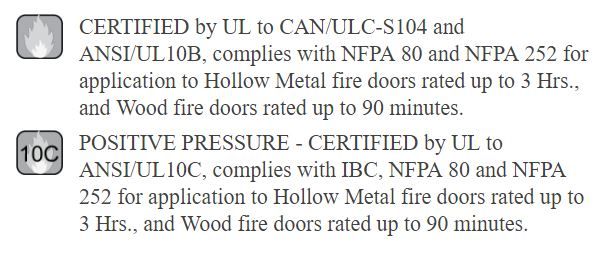

Compliance Details: UL Listed, Positive Pressure Certified.
Installation: See Installation Guide tab.
- If threshold is being drilled into concrete, an Expansion Anchor is recommended.
- #10 x 1-1/2" FH zinc plated wood screws included.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300): Available with Slip-Resistant Finish
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional carpet dividers, see our NGP 417 Carpet Edge Divider, 2.5" Aluminum, .375" Height
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN416
- Dimensions
-
Overall Height.5" Height
-
Overall Width1.4375" Width
-
- Product Design
-
Flat Saddle DesignSmooth Top Design
-
Threshold TypeCarpet Divider / Seam Binding
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
