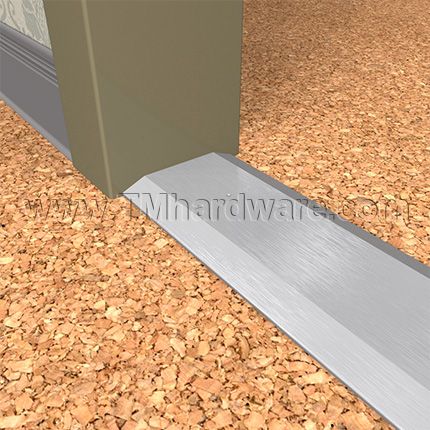

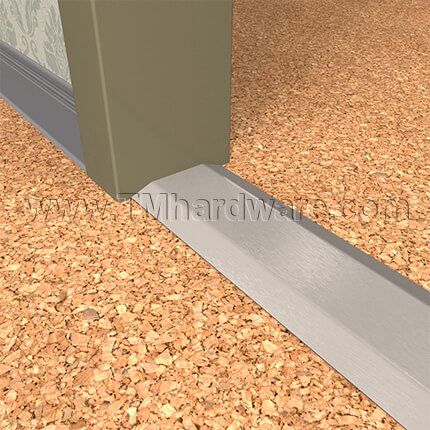

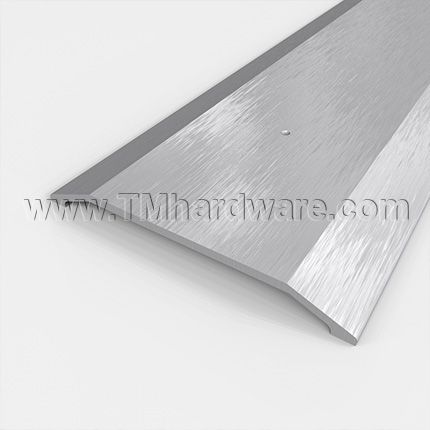

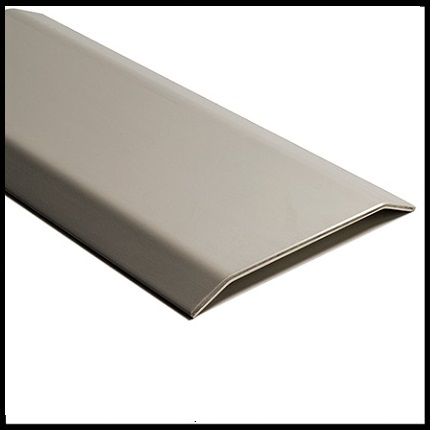

NGP 512 Utility Threshold, 5" Aluminum or Stainless Steel with Smooth Top, .5" Height
NGP 512 Utility Threshold has a width of 5" with a smooth top surface. It has a clearance of .5" which creates a barrier against dirt, dust, drafts and light infiltration. This threshold is wheelchair accessible. Available in two aluminum finishes or stainless steel and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 512Â Utility Threshold Key Features:
Recommended to provide the best results where automatic door bottoms are used
Material:Â Aluminum alloy 6063, T5 temper;Â Stainless Steel Type #304

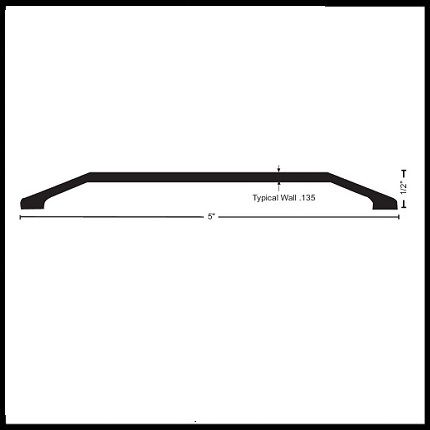

Width: 5"
Height: .5" (1/2")
Length: Custom cut to size.Â

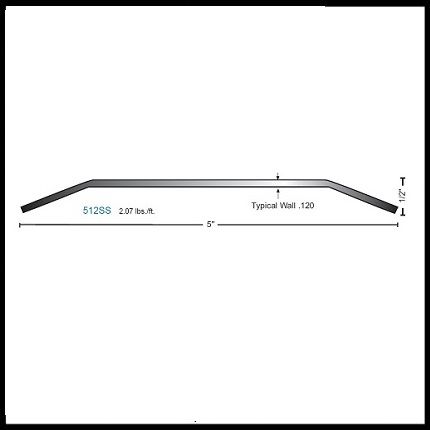

Weight: .82Â lbs/ft. for Aluminum and 2.07Â lbs/ft. for Stainless Steel
Typical Wall Thickness:Â .135" for Aluminum and .120" for Stainless Steel

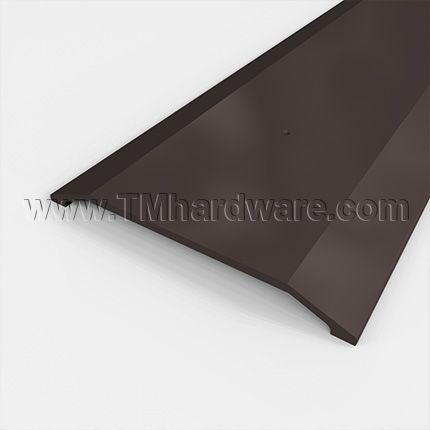

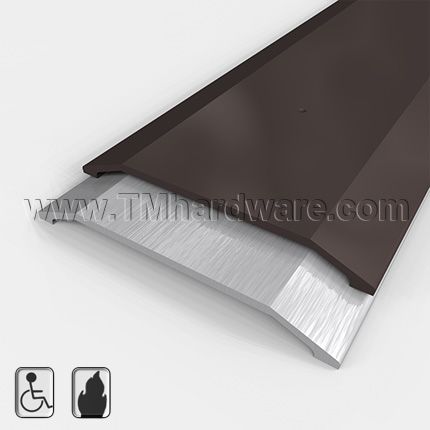

Finishes: Mill Finish Aluminum, Dark Bronze Anodized Aluminum, Stainless Steel
Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Positive Pressure Certified.
Installation: See Installation Guide tab.
- If threshold is being drilled into concrete, an Expansion Anchor is recommended.
- #10 x 1-1/2" FH zinc plated or stainless steel wood screws included.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300): Available with Slip-Resistant Finish
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3Â year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional thresholds, see our NGP 111 Utility Threshold 6" Aluminum with Smoot Top, .5" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN512
- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.125" Thick, .130" Thick
-
- Product Design
-
Flat Saddle DesignSmooth Top Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum, Stainless Steel
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Stainless Steel
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
