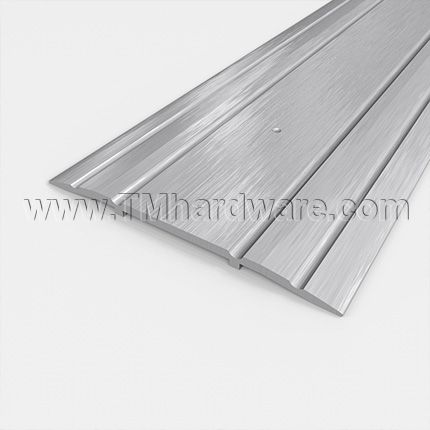

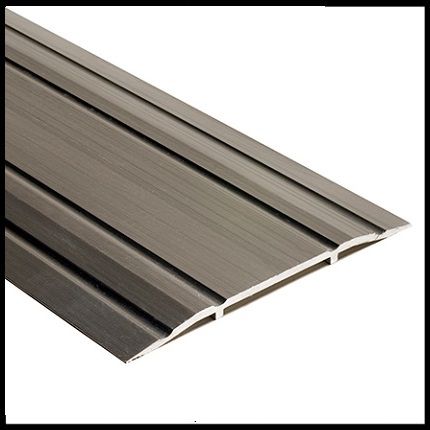

NGP 513 Door Threshold, 5" Wide, .25" Height
NGP 513 Door Threshold has a width of 5" with a clearance of .25" which creates a barrier against dirt, dust, drafts and light infiltration. This threshold is wheelchair accessible. Available in two aluminum finishes and a brass finish and length is custom cut to size.
See full product details and specs in the tabs below
PRICED PER FOOT
For a Quick Ship similar profile 5 inch wide threshold, click here.
NGP 513 Utility Threshold Key Features:
Material: Aluminum alloy 6063, T5 temper; Alloy CDA 385 (Copper Alloy No. C38500)
Width: 5"
Height: .25" (1/4")
Length: Custom cut to size.
Weight: .68 lbs/ft for aluminum, 1.96 lbs/ft for brass
Typical Wall Thickness: .125" for aluminum, .157" for brass

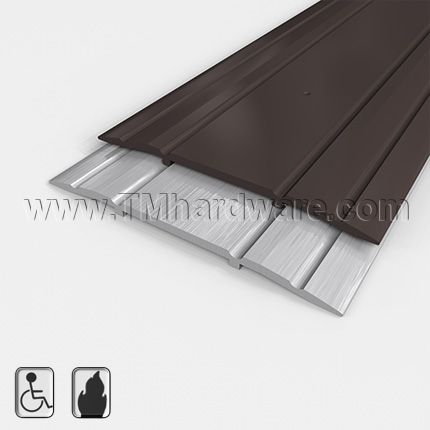

Finishes: Mill Finish Aluminum, Dark Bronze Anodized, Satin Finish Bronze
Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Positive Pressure Certified.
Installation: See Installation Guide tab.
- If threshold is being drilled into concrete, an Expansion Anchor is recommended.
- #10 x 1-1/2" FH zinc plated wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):
- Slip-Resistant Finish
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional thresholds, see our NGP 613 Door Threshold 6" Wide, .25" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN513
- Dimensions
-
Overall Height.25" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.375" Height
-
Thickness.125" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum, Brass
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Mill Finish (Brass)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
