NGP 674 Door Sweep, .6875" Aluminum with Snap-On Cover and 1" Nylon Brush

NGP 674 Door Sweep, .6875" Aluminum with Snap-On Cover and  1" Nylon Brush

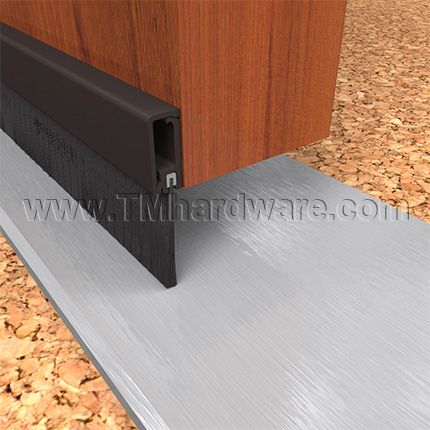

Product specs of NGP 674 Door Sweep NGP 674 Door Sweep, .6875" Aluminum with Snap-On Cover and 1" Nylon Brush NGP 674 Door Sweep, .6875" Aluminum with Snap-On Cover and 1" Nylon Brush in Gold Anodized Finish NGP 674 Door Sweep, .6875" Aluminum with Snap-On Cover and 1" Nylon Brush in DKB Finish applied to bottom of door

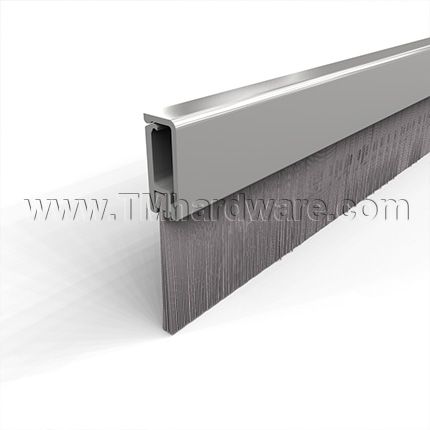

NGP 674 door bottom sweep is encased in an aluminum casing with a snap-on cover. It has a 1" brush seal which creates a barrier for dust, light, fire, smoke and insects. Available in three aluminum anodized finishes with a nylon brush insert. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

Price: $8.55
Length (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

NGP 674 Door Sweep Key Features:

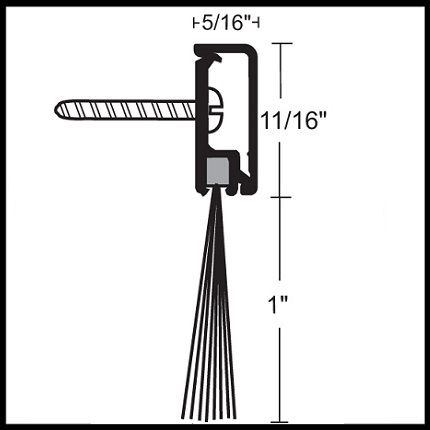

Casing Height: 11/16" (.6875" )

Casing Width: 5/16" (.3125")

Seal Height: 1"

Total Height: 1-11/16" (1.6875")

Retainer Material: Aluminum alloy 6063, T5 temper

Seal Material: Gray/Black Nylon Brush. Brush has excellent abrasion resistance, flexibility and memory. It also retains insecticides well. It is not effective against water penetration.

Snap-On Cover: The snap-on cover conceals the screw heads for a clean appearance

Temperature Range: -70°F to 425°F

Finishes: Anodized Aluminum, Dark Bronze Aluminum, Gold Aluminum

Mounting Options: select from options above

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

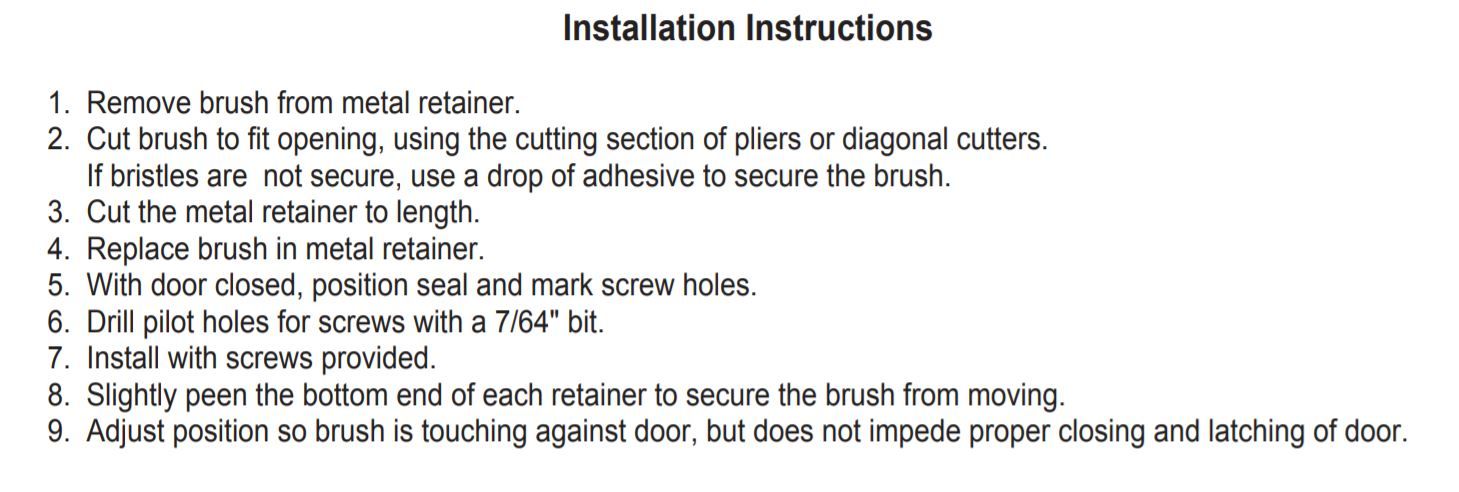

InstallationInstallation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: REACH and RoHS compliant, Fire, Smoke and Air Infiltration Rated, BHMA and UL Certified, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

See also our NGP 675 Door Sweep, 1" Aluminum Casing with .4375" Nylon Brush Seal

Product Specs
Compliance Details
  • Anodized Aluminum complies with ANSI/BHMA Coseds US28 / 628
  • REACH and RoHS compliant

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.
  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
