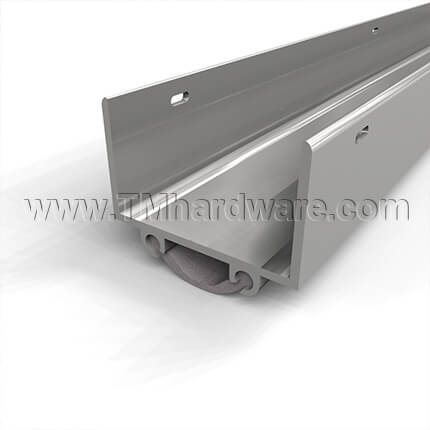

NGP 6V Door Shoe Sweep, U Shaped Aluminum Casing with .5" Vinyl Seal

NGP 6V Door Shoe Sweep, U Shaped Aluminum Casing with .5" Vinyl Seal

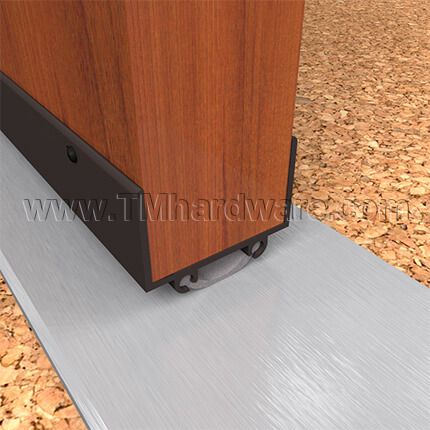

Product specs of NGP 6V Door Shoe Sweep Application Image

NGP 6V Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5". It is compatible with doors of 1.75" thickness. Comes with a Vinyl seal. Available in two aluminum finishes and length is custom cut to size.

See full product details and specs in the tabs below.


Price: $6.95
Length (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

NGP 6V Door Shoe, U Shaped Aluminum Casing with .5" Vinyl Seal Key Features:

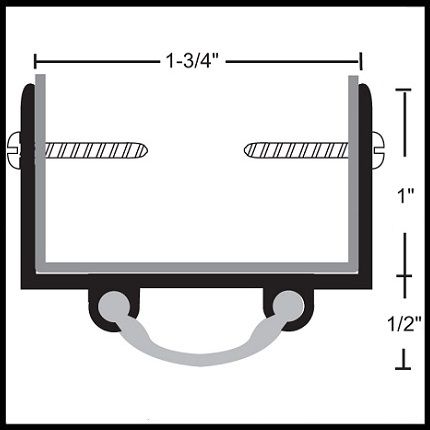

Dimensions: Casing has a height of 1". Length is custom cut to size.

Casing Material: Aluminum alloy 6063, T5 temper

Door Compatibility: Wood or Metal Doors, 1.75" Thick

Seals: Contains a .5" Gray Vinyl Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Effective Temperature Range: 0°F thru 140°F

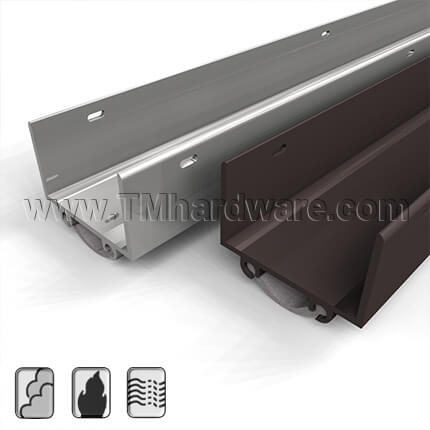

Available Finishes: Anodized Aluminum, Dark Bronze Anodized

Compliance Details: UL Certified, Positive Pressure Certified, Smoke Rated, Air Infiltration Tested.

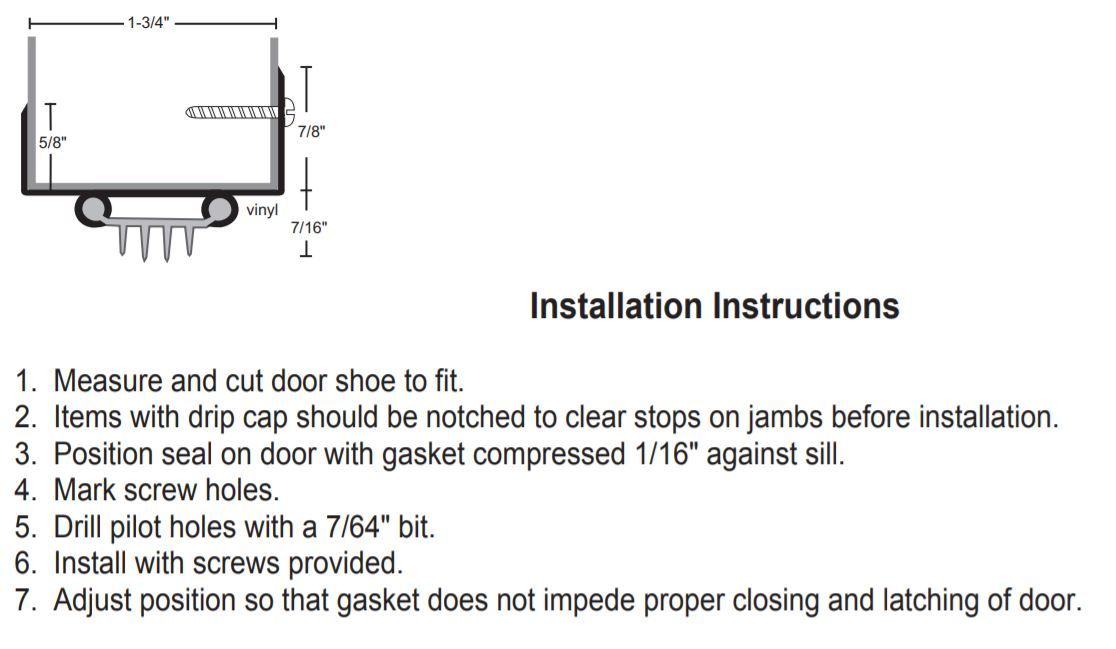

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 99N Door Shoe Sweep, U Shaped Aluminum with 2.75" Kickplate and .75" Neoprene Seal

Product Specs
Compliance Details

Anodized Aluminum complies with ANSI/BHMA US28 / 628
