NGP 81369N Overhead Door Bottom, 1.125" Aluminum with 1.8125" Neoprene Bulb Seal

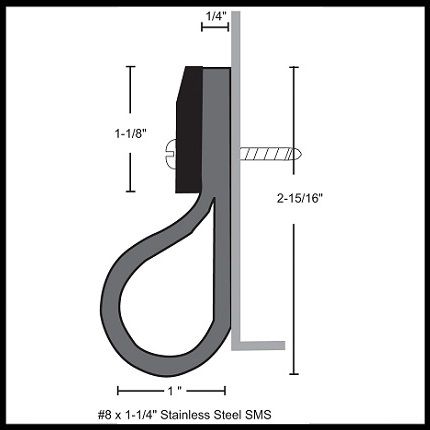

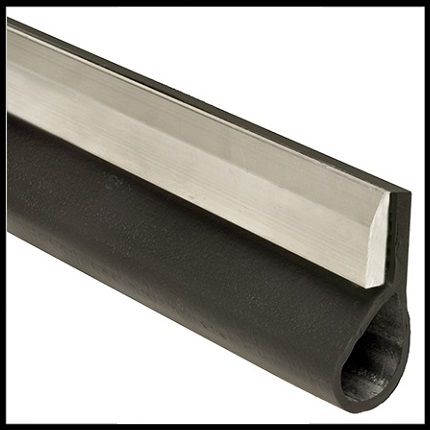

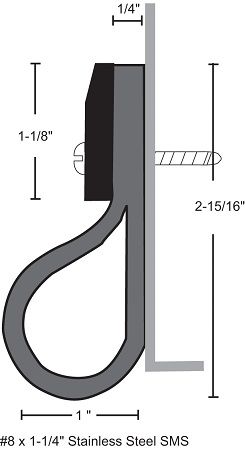

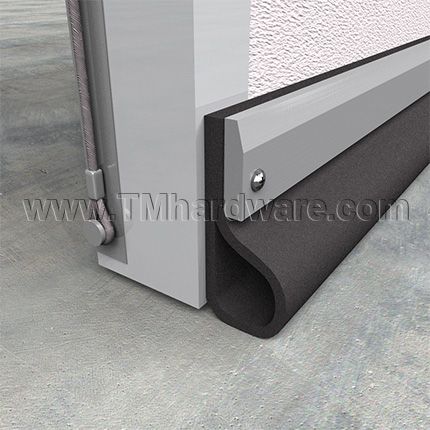

NGP 81369N Door Bottom Sweep is designed to be used for overhead doors. It is comprised of a 1.125" aluminum casing which is fitted with a 1.8125" solid Neoprene Bulb seal, which prevents infiltration of water, drafts, dust and light. Available in two finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG-81369N
    • Market price:$59.00
      • save 15%
    • Starting price: Price: $50.15 per foot


    NGP 81369N Door Bottom Sweep is designed to be used for overhead doors. It is comprised of a 1.125" aluminum casing which is fitted with a 1.8125" solid Neoprene Bulb seal, which prevents infiltration of water, drafts, dust and light.

    Seals: Contains a 1.8125" Black Neoprene Bulb Seal. It has very good abrasion resistance, tensile strength and memory.

    Installation: Installation guide provided. Drilled for easy installation and supplied with #8 x 1-1/4" stainless steel SMS.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our NGP 136S Meeting Stile, Mortised Aluminum Track with .25" Silicone Bulb Seal

      • SKU
        NG-81369N
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      81369N
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -20°F thru 200°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Total Height
        2-15/16" Height
      • Additional Dimensions
        Seal is 1" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #8 x 1-1/4" stainless steel SMS screws provided
    • Finishes
      • Finish

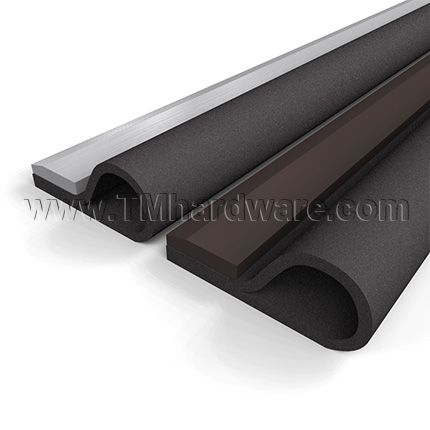

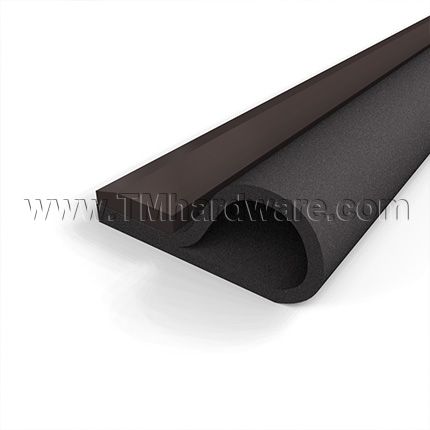

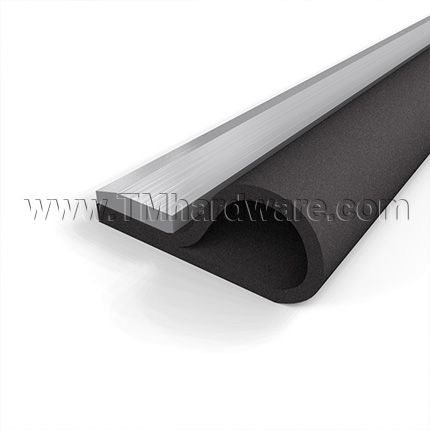

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA codes US27 / 719
