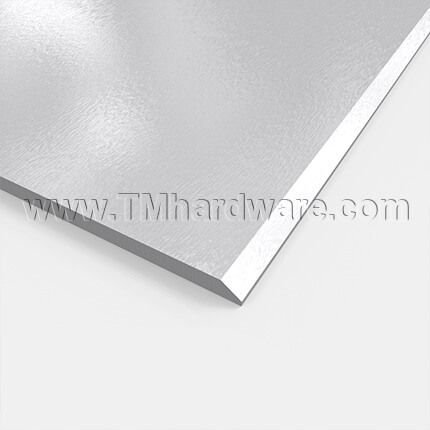

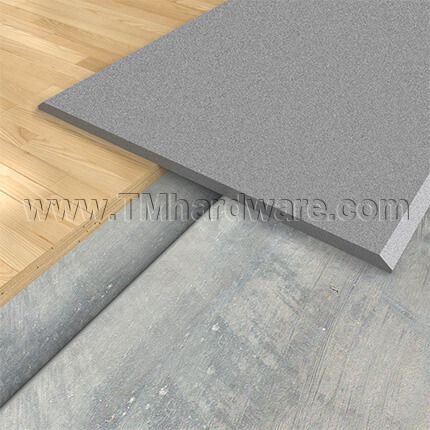

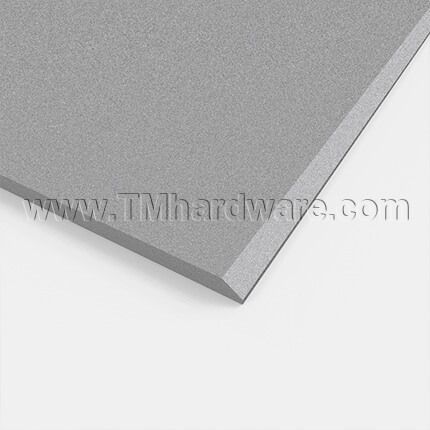

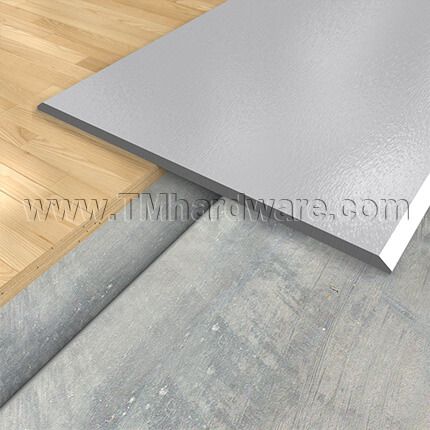

NGP 838 Cover Plate for Expansion Joints, Aluminum, .375" Thick

NGP Aluminum Cover Plates can be used whenever unusual floor conditions necessitate covering or evening out of floor surface, such as the placement of expansion joints between flooring. This cover plate is ADA compliant. It is .375" thick and is available in choice of widths and lengths.

PRICED PER SQUARE FOOT - See full products details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG838_4
    • Market price:$115.00
      • save 15%
    • Starting price: Price: $97.75 per foot


    NGP Aluminum Cover Plate Key Features:

    • Manufactured through a rolled process providing extra durability
    • PVC coating applied to protect the finish during shipping and installation

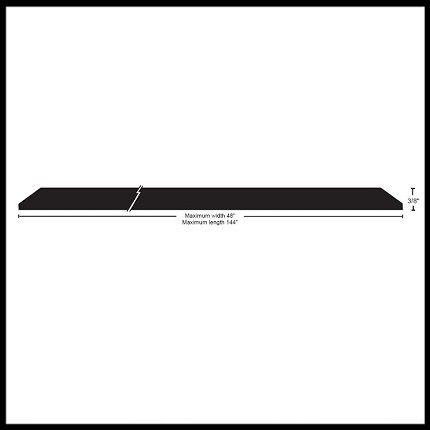

    Material: Aluminum alloy 3003, H14 hardness

    Thickness: .375" (3/8")

    Width: Custom cut from 4" up to 48"

    Length: Custom cut to size up to 144"

    Finish: Mill Aluminum, Slip Resistant Finish

    Edges: Choice of either 2 sided bevel or no bevel. Choose from options above.

    Compliance Details: UL Listed; Positive Pressure Certified; ANSI/BHMA Certified.

    Installation: See installation guide in tabs below. #10 FH zinc plated wood screws included. Furnished undrilled

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For addtional cover plates see our NGP 818 Aluminum Cover Plate for Expansion Joints, .125" Thick

      • SKU
        NG838_4
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      838
    • Width
      4" Width, 5" Width, 6" Width, 7" Width, 8" Width, 9" Width, 10" Width, 11" Width, 12" Width, 13" Width, 14" Width, 15" Width, 16" Width, 17" Width, 18" Width, 19" Width, 20" Width, 21" Width, 22" Width, 23" Width, 24" Width, 25" Width, 26" Width, 27" Width, 28" Width, 29" Width, 30" Width, 31" Width, 32" Width, 33" Width, 34" Width, 35" Width, 36" Width, 37" Width, 38" Width, 39" Width, 40" Width, 41" Width, 42" Width, 43" Width, 44" Width, 45" Width, 46" Width, 47" Width, 48" Width
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104", 104.25", 104.5", 104.75", 105", 105.25", 105.5", 105.75", 106", 106.25", 106.5", 106.75", 107", 107.25", 107.5", 107.75", 108", 108.25", 108.5", 108.75", 109", 109.25", 109.5", 109.75", 110", 110.25", 110.5", 110.75", 111", 111.25", 111.5", 111.75", 112", 112.25", 112.5", 112.75", 113", 113.25", 113.5", 113.75", 114", 114.25", 114.5", 114.75", 115", 115.25", 115.5", 115.75", 116", 116.25", 116.5", 116.75", 117", 117.25", 117.5", 117.75", 118", 118.25", 118.5", 118.75", 119", 119.25", 119.5", 119.75", 120", 120.25", 120.5", 120.75", 121", 121.25", 121.5", 121.75", 122", 122.25", 122.5", 122.75", 123", 123.25", 123.5", 123.75", 124", 124.25", 124.5", 124.75", 125", 125.25", 125.5", 125.75", 126", 126.25", 126.5", 126.75", 127", 127.25", 127.5", 127.75", 128", 128.25", 128.5", 128.75", 129", 129.25", 129.5", 129.75", 130", 130.25", 130.5", 130.75", 131", 131.25", 131.5", 131.75", 132", 132.25", 132.5", 132.75", 133", 133.25", 133.5", 133.75", 134", 134.25", 134.5", 134.75", 135", 135.25", 135.5", 135.75", 136", 136.25", 136.5", 136.75", 137", 137.25", 137.5", 137.75", 138", 138.25", 138.5", 138.75", 139", 139.25", 139.5", 139.75", 140", 140.25", 140.5", 140.75", 141", 141.25", 141.5", 141.75", 142", 142.25", 142.5", 142.75", 143", 143.25", 143.5", 143.75", 144"
    • Edge
      2 Sided Bevel, No Bevel
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Slip Resistant Aluminum (SIA)

    Mill Finish Aluminum complies with ANSI/BHMA US27 / 627
