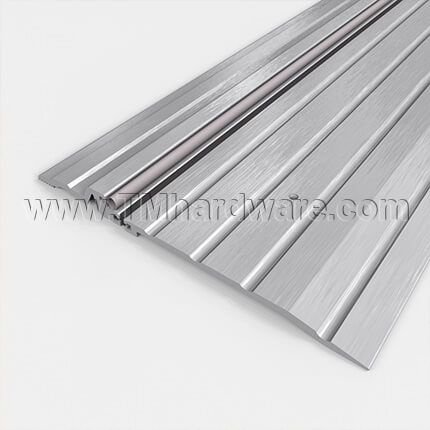

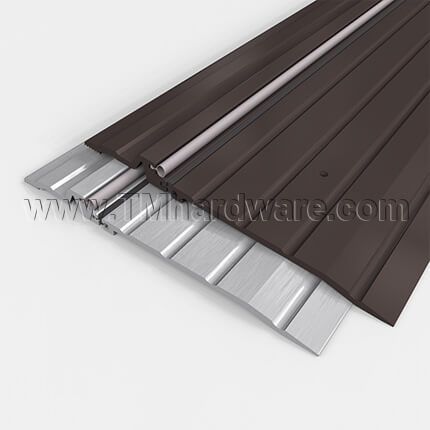

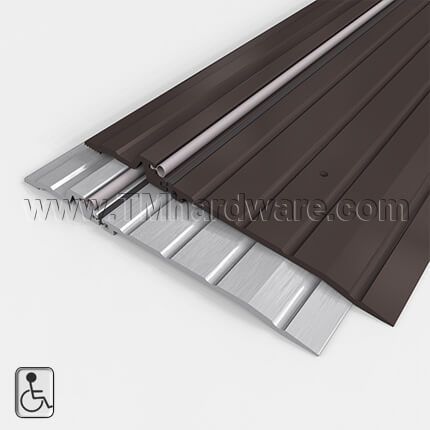

NGP 8633 Latching Panic Exit Threshold, 6.125" Aluminum with Thermal Break and Choice of Seals, .5" Height

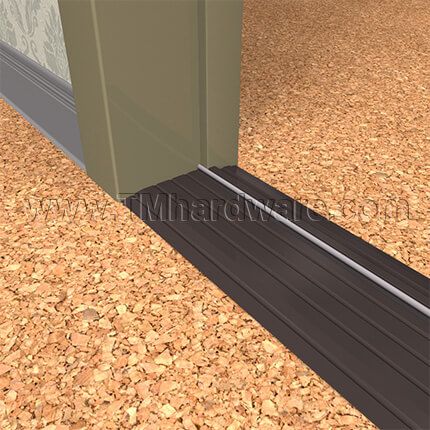

NGP 8633 Latching Panic Exit Threshold is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. The thermal break creates a separation to prevent the transfer of outside temperature and frost through the threshold. It has a width of 6.125" with a full height of .5". Available in two aluminum finishes with a choice of seals. Length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 8633 Latching Panic Exit Threshold with Thermal Break Key Features:
Threshold design is compatible with a surface applied vertical rod exit device.
Material: Aluminum Alloy 6063, T5 Temper

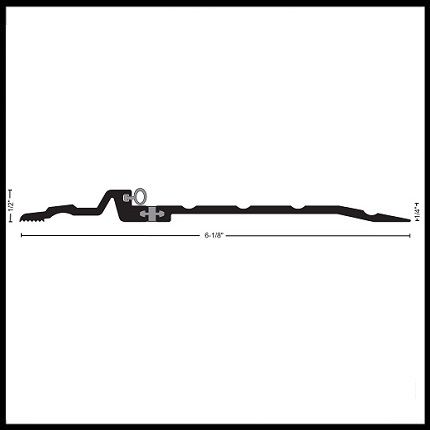

Width: 6.125" (6-1/8")
Height: .5" (1/2")
Length: Custom cut to size
Weight: .97 lbs./Ft.
Inserts: Gray Vinyl, Black Silicone, Black NGP-TPV
Compliance Details: ADA Compliant.
Installation: See Installation Guide tab.
- If threshold is being drilled into concrete, an Expansion Anchor is recommended.
- #10 x 1-1/2” FH zinc plated wood screws provided.
- Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws
Drilling: Threshold is drilled in standard factory locations.
Options (Can be purchased through our office at 845-388-1300): Available with Slip Resistant Textured Finish
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional thresholds see our NGP 8633 Latching Panic Exit Threshold, 4.125" Aluminum with Thermal Break and Choice of Seals .875" Height
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN8633
-
SealVinyl, Silicone, NGP-TPV
- Dimensions
-
Overall Height.5" Height
-
Overall Width6.125" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeThermal Break Threshold, Latching Panic Exit Threshold
-
Seal TypeSilicone Seal, Vinyl Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
