NGP 8813 Utility Threshold, 8.125" Aluminum with Thermal Break, .25" Height

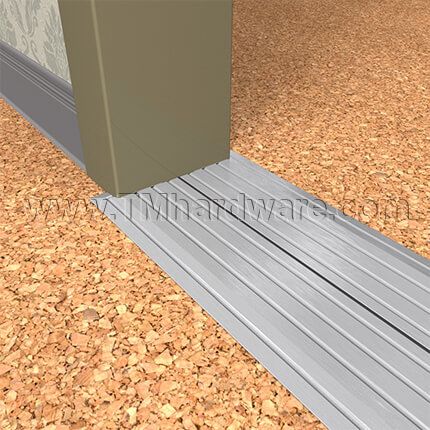

NGP 8813 Utility Threshold has a thermal break in the center of the threshold which inhibits the passage of heat or cold through the metal. It has a width of 8.125" and a clearance of .25" which creates a barrier against dirt, dust, drafts and light infiltration. This threshold is wheelchair accessible. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG8813A
    • Market price:$33.45
      • save 15%
    • Starting price: Price: $28.43 per foot


    NGP 8813 Utility Threshold with Thermal Break Key Features:

    Material: Aluminum alloy 6063, T5 temper

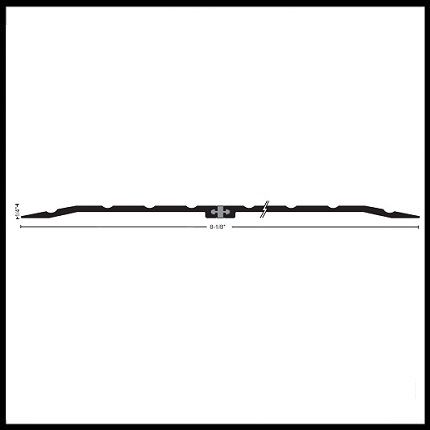

    Width: 8.125" (8-1/8")

    Height: .25" (1/4")

    Length: Custom cut to size.

    Weight: 1.11 lbs/ft.

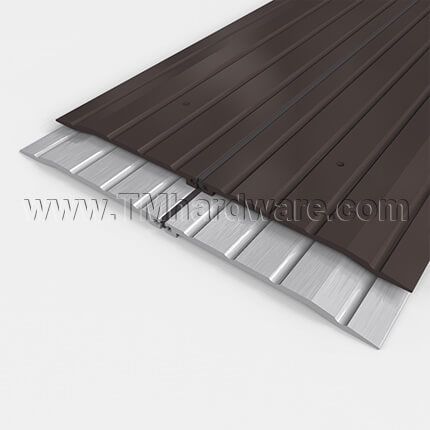

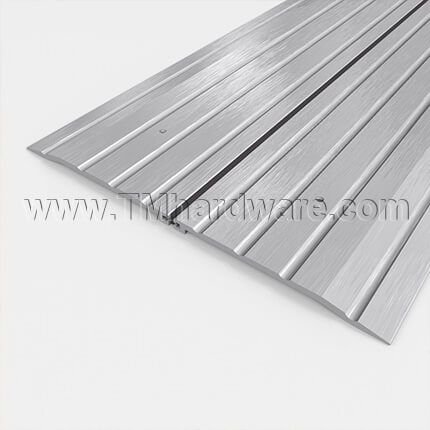

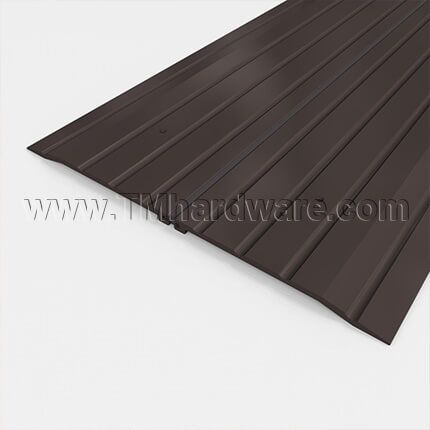

    Finishes: Mill Finish Aluminum, Dark Bronze Anodized Aluminum

    Compliance Details: ADA Compliant

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2" FH zinc plated wood screws included. Dark Bronze supplied with DKB thresholds.

    Drilling: Threshold is drilled along the center line in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300): Available with Slip-Resistant Finish

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional thermal break thresholds, see our NGP 8913 Utility Threshold 9.125" Aluminum with Thermal Break, .25" Height.

      • SKU
        NG8813A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      8813
    • Dimensions
      • Overall Height
        .25" Height
      • Overall Width
        8.125" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .375" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Flat Utility Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    All finishes comply with BHMA / ANSI Codes

    • Mill Finish Aluminum - US27 / 719
