NGP 957 Aluminum Ramp Edge, .25" Drop, 6" Width

NGP 957 Aluminum Ramp Edge, .25" Drop, 6" Width
National Guard Products

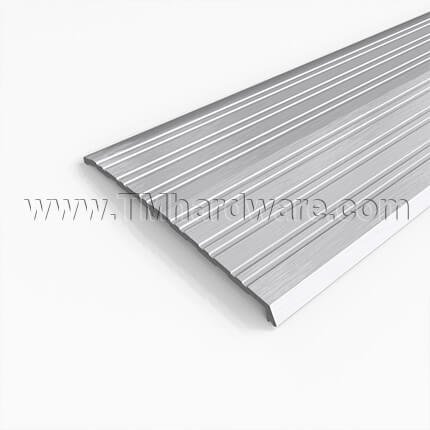

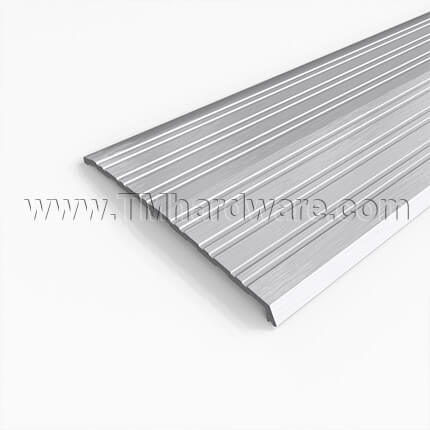

NGP 957 Ramp Edge is applied over a stair or drop in floor surface to protect the surface edge and create a smooth transition between the upper floor surface and ramp. This ramp edge is compatible over a .25" drop and is 6" wide. It should be used in conjuction with a ramp end or bridge. The interlocking component eliminates the need to weld the joints together. Available in two finishes and length is custom cut to size.

PRICED PER FOOT - See full product specs and details in the tabs below

See tabs below for additional information
    • SKU
      NG957A
    • Market price:$48.50
      • save 15%
    • Starting price: Price: $41.23 per foot


    NGP 957 Aluminum Ramp Edge Key Features:

    Material: Aluminum alloy 6063, T5 temper

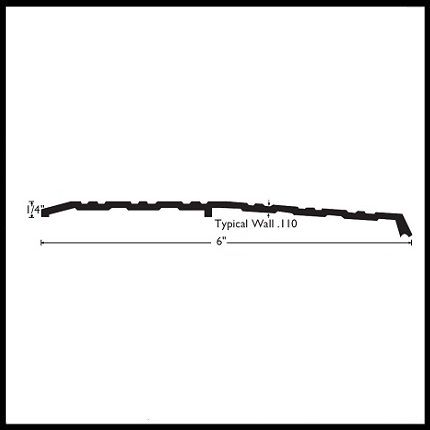

    Height: .25" (1/4")

    Width: 6"

    Length: Custom cut to size

    Weight: .93 lbs/ft.

    Typical Wall Thickness: .110"

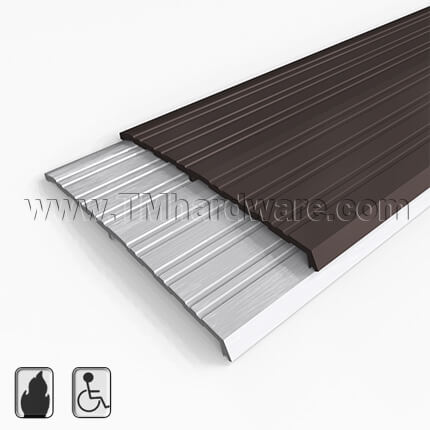

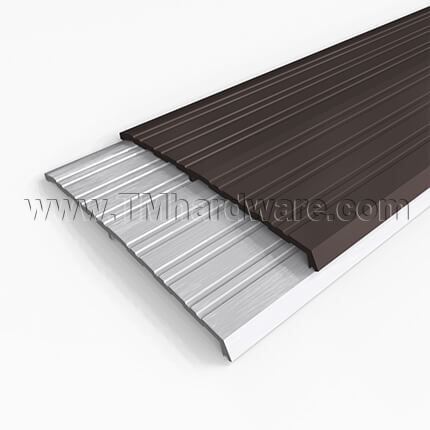

    Finishes: Mill Aluminum, Dark Bronze Anodized

    Compliance Details: ADA Compliant when installed as part of an interlocking ramp assembly; UL Listed; Positive Pressure Certified; ANSI/BHMA Certified.

    Installation: See installation guide in tabs below. #10 FH zinc plated wood screws included.

    Requirements:

    • Maximum Threshold Height = 1/2"
    • Thresholds above 1/4" must be beveled with a slope no greater than 1:2
    • Height changes over 1/2" require use of a ramp with slope not steeper than 1:12

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For additional ramp bridges see our NGP 955 Aluminum Ramp Bridge, 1.25" Height, 3" Width

      • SKU
        NG957A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      957
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

    Mill Finish Aluminum complies with ANSI/BHMA US27 / 627


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, resalable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
