NGP 95WH Door Shoe Sweep, U Shaped Aluminum Casing with Rain Drip, .625" Nylon Brush Seal

NGP 95WH Door Shoe Sweep, U Shaped Aluminum Casing with Rain Drip, .625" Nylon Brush Seal
National Guard Products

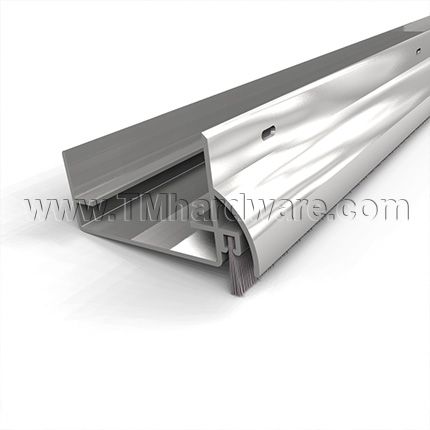

NGP 95WH Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .625". It has a rain drip design which provides extra protection against water seepage. It is compatible with 1.75" doors with a standard 3/4" undercut. Comes with a nylon brush seal. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG95WH_MIL
    • Market price:$14.50
      • save 15%
    • Starting price: Price: $12.33 per foot


    NGP 95WH Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .625". It has a rain drip design which provides extra protection against water seepage. This product is designed for use on standard 3/4" undercut door and used with NGP 896 V, N, or S ADA compliant threshold

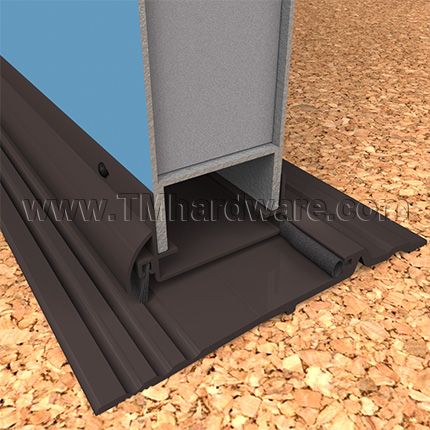

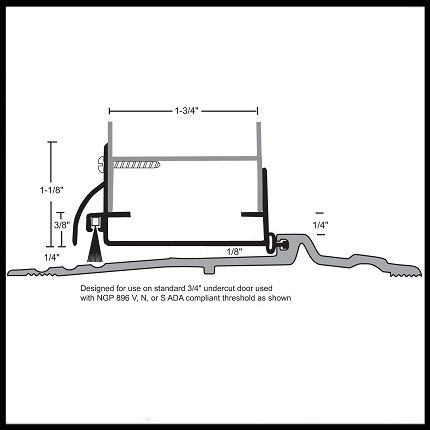

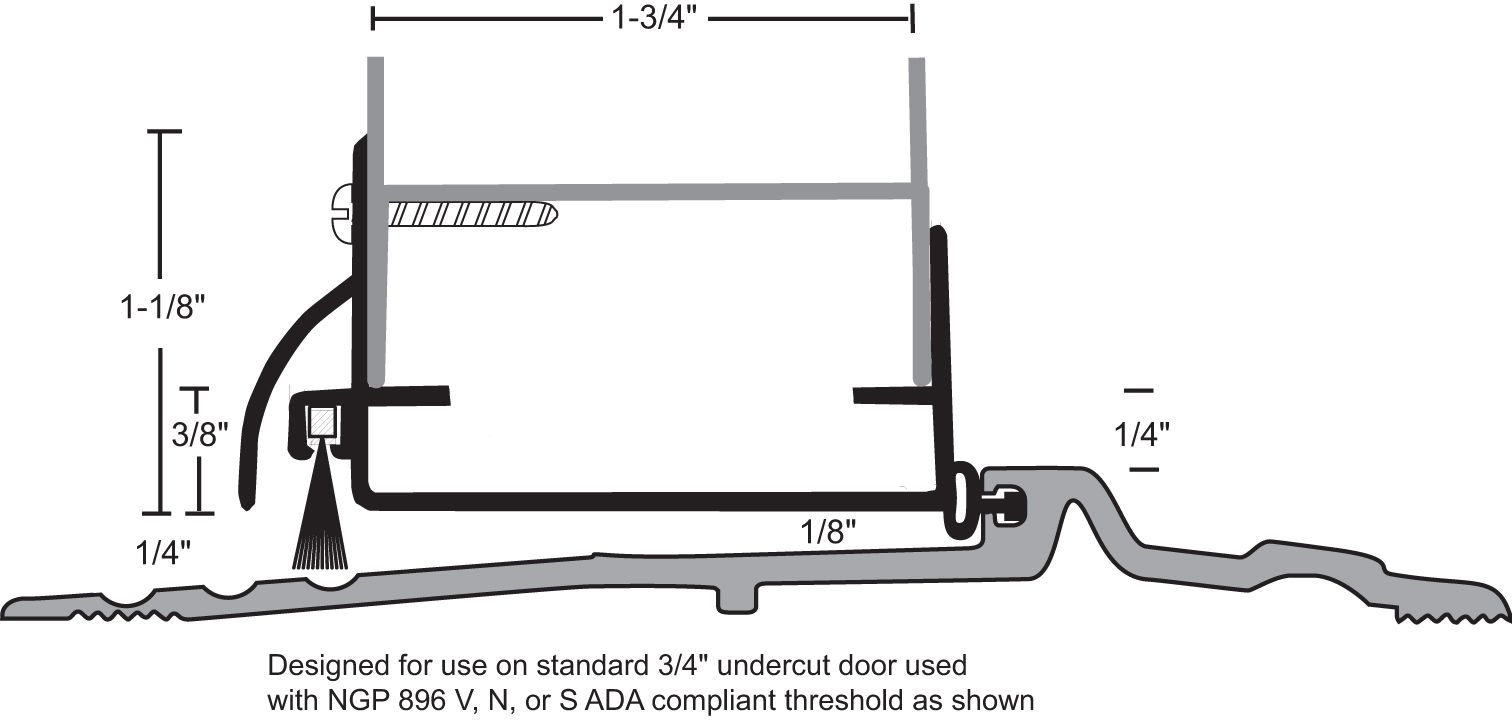

    Door Compatibility: Wood or Metal Doors 1.75" with standard 3/4" undercut used with NGP 896 V, N, or S ADA compliant threshold.

    Compliance Details: REACH and RoHS compliant, BHMA Certified, UL Certified, Positive Pressure Certified, Smoke Rated, Air Infiltration Tested.

    Seals: Contains a .625" Black/Gray Nylon Brush Seal. It has very good abrasion resistance, tensile strength and memory.

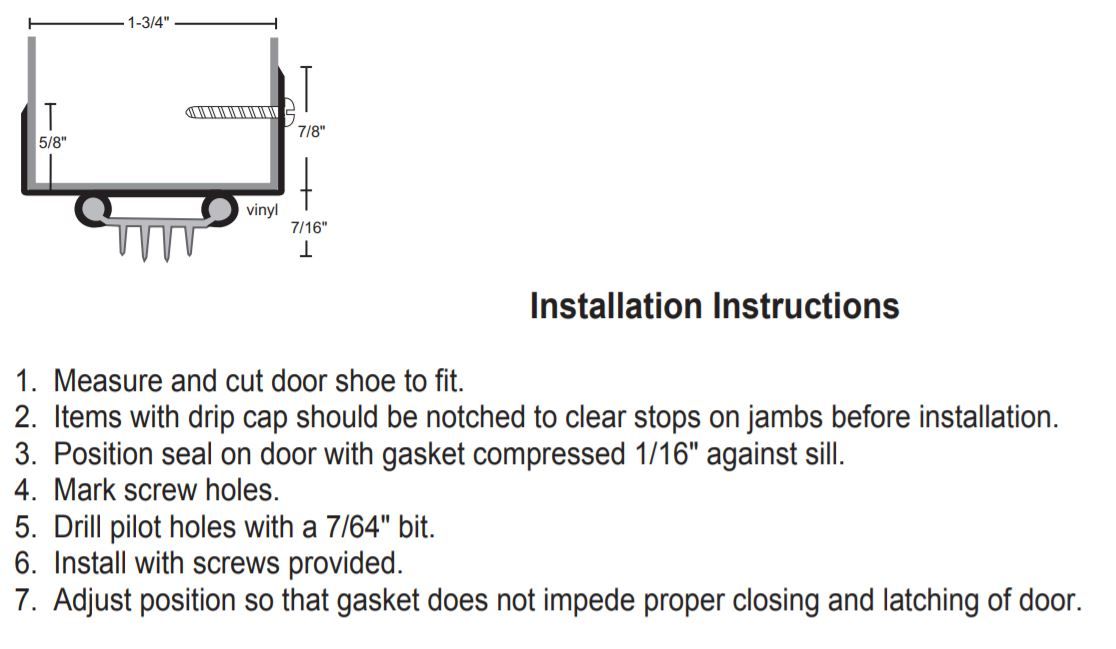

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional Door Shoes see our NGP 112N Door Shoe Sweep, Aluminum Track with .75" Neoprene Seal

      • SKU
        NG95WH_MIL
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      95WH
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -70°F thru 425°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Door Shoe Mount
    • Dimensions
      • Seal Height
        3/8" Height
      • Total Height
        1-1/8" Height
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel SMS screws provided
    • Special Features
      • Rain Drip Cap
        Yes
    • Finishes
      • Finish

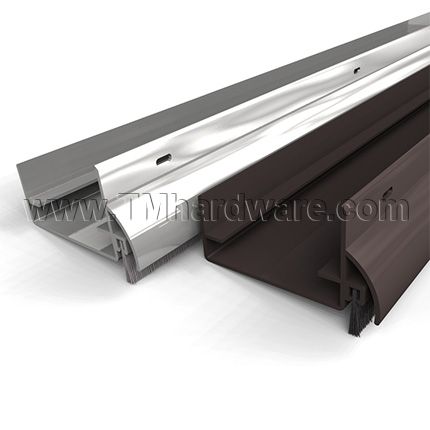

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Smoke Rated, BHMA Certified, UL Classified, Air Infiltration Rated
      • ANSI Designation
        R3A516
      • Warranty
        3 Year Limited Warranty
    • Mill Aluminum complies with ANSI/BHMA Codes US27 / 627
    • REACH and RoHS compliant
