NGP 9675 Door Sweep and Perimeter Gasket, 1" Aluminum Casing with Snap-On Cover and .4375" Premium Grade Nylon Brush Seal

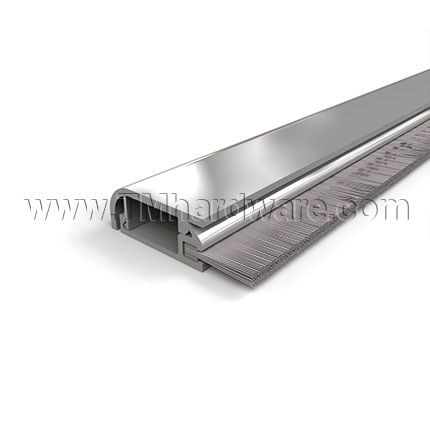

NGP 9675 door sweep / perimeter gasket is encased in an aluminum casing with a snap-on cover. It has a .4375" nylon brush seal which creates a barrier for dust, light, fire, smoke and insects. This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. Available in various aluminum anodized finishes and length is custom cut to size.
PRICED PER FOOT - see product specs and details in the tabs below
NGP 9675 door sweep / perimeter gasket is encased in an aluminum casing with a snap-on cover. It has a .4375" nylon brush seal which creates a barrier for dust, light, fire, smoke and insects. This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration.
Seal Material: Nylon Brush. This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. The seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.
Snap-On Cover: The snap-on cover conceals the screw heads for a clean appearance.
Mounting Options: select from options above
- Screws Only: Screw holes are slotted for easy adjustment once installed
- Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.
Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.
Compliance Details: REACH and RoHS compliant, Fire and Smoke Rated, UL Certified, Air Infiltration Tested, ANSI/BHMA certified, see Compliance Details tab for more information.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional premium grade door sweeps, see our NGP 9605 Door Sweep and Perimeter Gasket .625" Aluminum Casing with .4375" Nylon Brush Seal
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN9675
-
MountingScrews, Adhesive + Screws
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-70°F to 425°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingSurface Mounted
-
- Dimensions
-

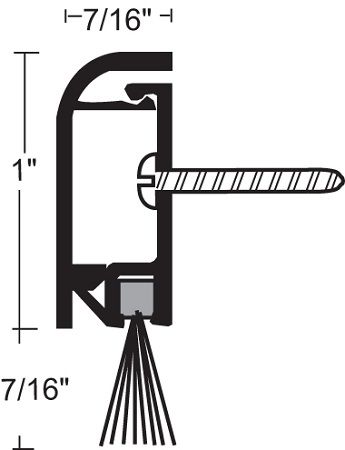

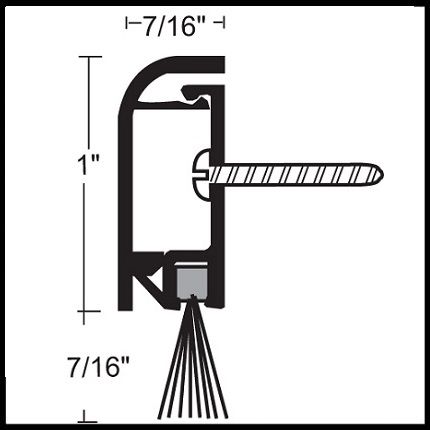

Seal Height7/16" Height
-
Total Height1-7/16" Height
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 3/4" stainless steel sheet metal screws provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Bronze Finish
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, UL Classified, BHMA Certified, Air Infiltration Rated
-
Warranty3 Year Limited Warranty
-
