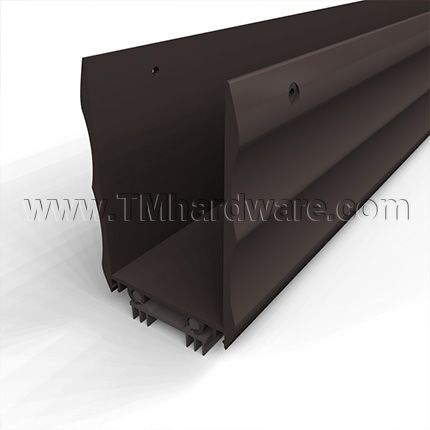

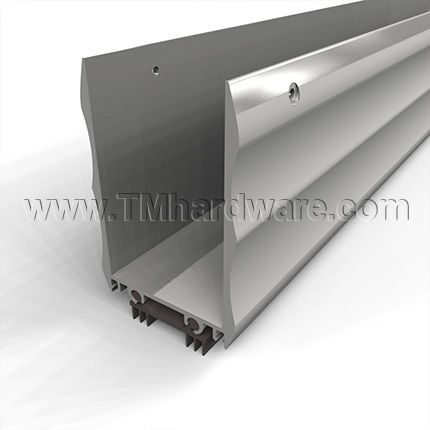

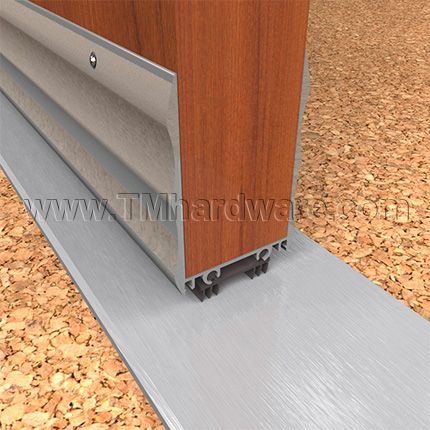

NGP 99T6 Door Shoe Sweep, U Shaped Aluminum with 2.75" Rigid Kickplate and Two .5625" Thermoplastic Triple Fin Seals

NGP 99T6 Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5625" at your door bottom.  It combines a 2.75" rigid kick-plate with the casing for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door. It is compatible with doors of 1.75" thickness. Comes with two Thermoplastic Triple Fin seals. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG99T6A
    • Market price:$25.00
      • save 15%
    • Starting price: Price: $21.25 per foot


    NGP 99T6 Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5625" at your door bottom.  It combines a 2.75" rigid kick-plate with the casing for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door.

    Seals: Contains two .5625" Dark Brown Thermoplastic Triple Fin Seals. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

    Kickplate: 2.75" rigid kickplate for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door.

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional Door Shoes see our NGP 99TWH Door Shoe Sweep, U Shaped Aluminum with 2.75" Kickplate and .6875" Nylon Brush and Thermoplastic Triple Fin Seals

      • SKU
        NG99T6A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      99T6
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        0°F thru 140°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Thermoplastic
      • Mounting
        Door Shoe Mount

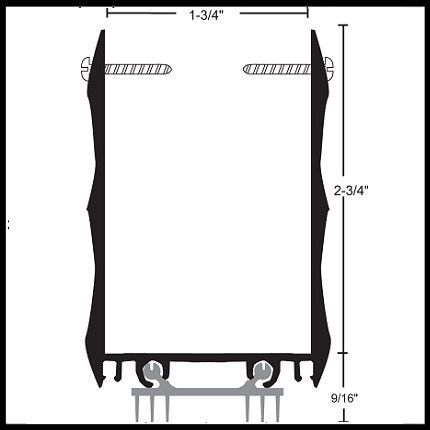

    • Dimensions
      • Seal Height
        9/16" Height
      • Total Height
        3-7/16" Height
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel SMS screws provided
    • Finishes
      • Finish

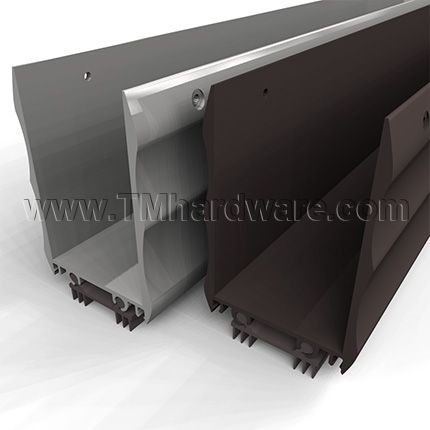

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Smoke Rated, UL Classified, Air Infiltration Rated
      • Warranty
        3 Year Limited Warranty

    Click to Print

    NGP 99T6 Door Shoe Sweep

    End Caps Available, select from options above:

    End caps for 99 Series Door Bottoms

    Anodized Aluminum complies with ANSI/BHMA US28 / 628


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
