NGP C627 Door Sweep, 1.4375" Aluminum Casing with Rain Drip and .5625" Nylon Brush Seal

NGP C627 Door Sweep, 1.4375" Aluminum Casing with Rain Drip and .5625" Nylon Brush Seal
National Guard Products

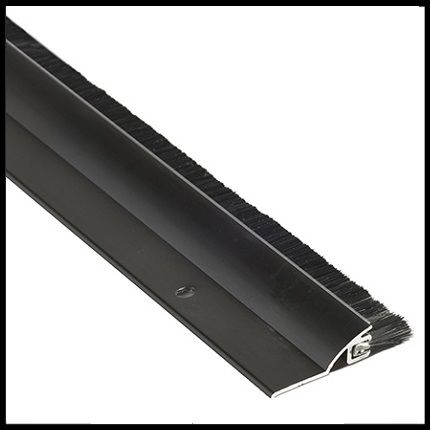

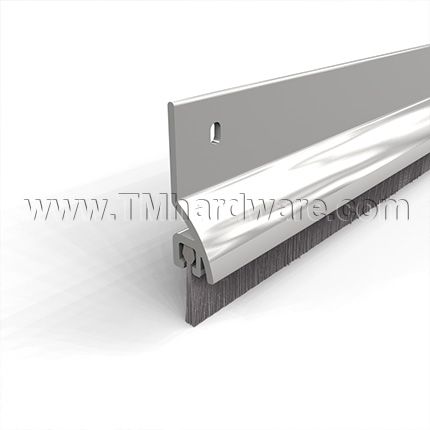

NGP C627 Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Rain drip design deflects water and prevents seepages through the gap under doors. Casing height measures 1.4375", while brush portion has a height of .5625". Available in various anodized finishes and length is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information
    • SKU
      NGC627A
    • Market price:$9.25
      • save 15%
    • Starting price: Price: $7.86 per foot

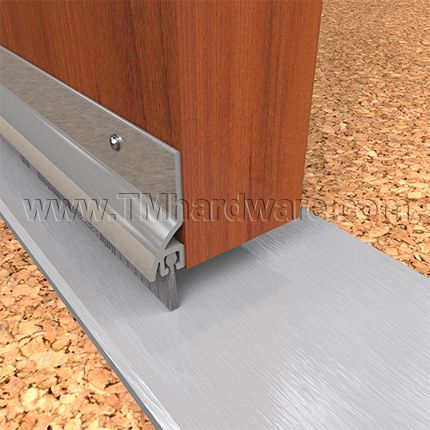

    NGP C627 Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Rain drip design deflects water and prevents seepages through the gap under doors.

    Seal Material: Nylon Brush. The seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.

    Mounting Options: select from options above

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

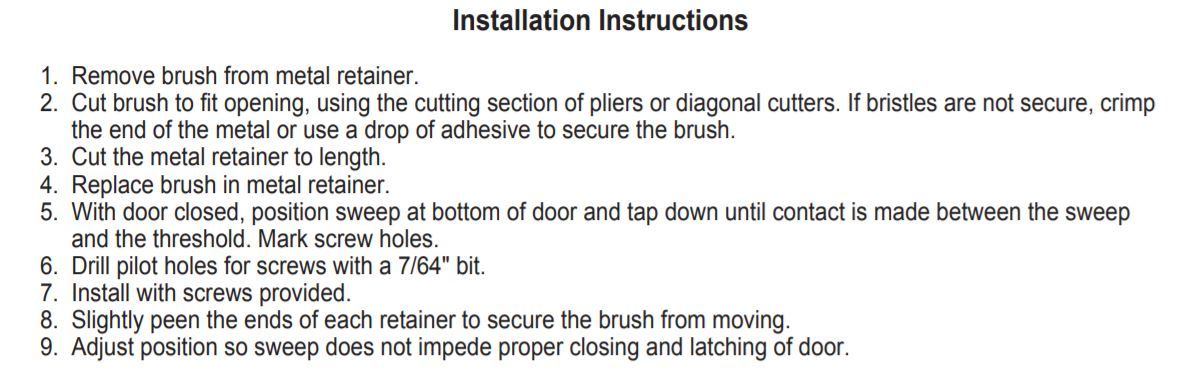

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

    Compliance Details: REACH and RoHS compliant, Fire and Smoke Rated, UL Certified, Air Infiltration Tested, ANSI/BHMA certified, see Compliance Details tab for more information.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional door sweeps, see our NGP 607 Door Bottom Sweep with 9/16" Seal

      • SKU
        NGC627A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      C627
    • Mounting
      Screws, Adhesive + Screws
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -70°F to 425°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Surface Mounted

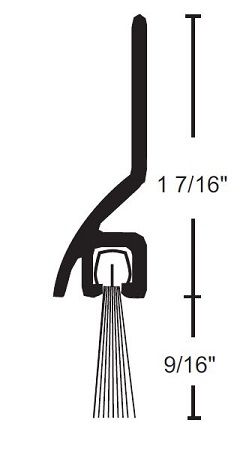

    • Dimensions
      • Seal Height
        9/16" Height
      • Total Height
        2" Height
      • Length
        Custom Cut to Size
    • Installation
      • Installation Screws
        #6 x 3/4" stainless steel sheet metal screws provided
    • Special Features
      • Rain Drip Cap
        Yes
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)

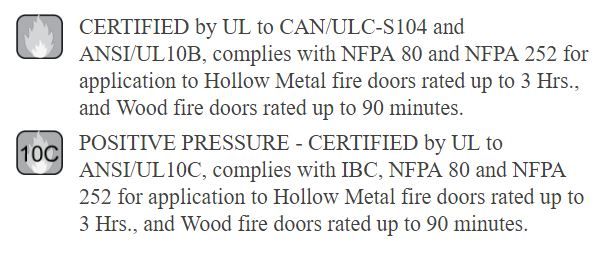

    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, UL Classified, BHMA Certified, Air Infiltration Rated
      • ANSI Designation
        R3A536
      • Warranty
        3 Year Limited Warranty

    The following finishes comply with ANSI/BHMA Codes

    • Anodized Aluminum US28 / 628

    REACH and RoHS compliant
