NGP G611 Door Sweep, 5.5" Aluminum Casing with 1.75" Nylon Brush

NGP G611 Door Sweep, 5.5" Aluminum Casing with 1.75" Nylon Brush
Product Specs of G611 Door Bottom Sweep and Weatherstripping
0.0

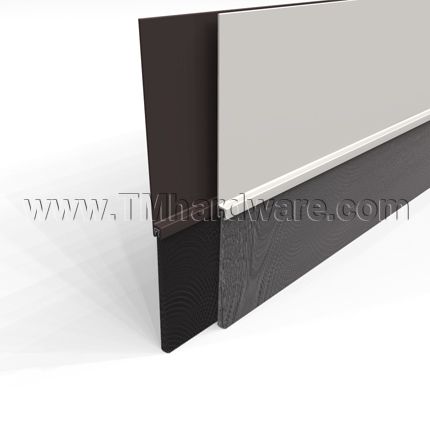

NGP #G611 Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. The 5.5" H casing doubles as a kickplate and the brush portion has a height of 1.75". Available in 2 finishes and is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

Price: $20.25
Finish
Size (Inches)
Mounting
Qty
Save to wishlist
Made in USA
SKU NG611A
Shipping See Shipping Tab Below
Description

NGP #G611 Door Sweep Key Features:

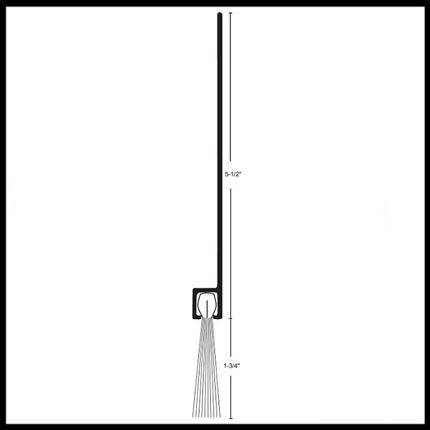

Casing Height: 5-1/2" (5.5") - Casing doubles as a kickplate and protects the bottom of the door from damage.

Brush Height: 1-3/4" (1.75")

Total Height: 7-1/4" (7.25")

Retainer Material: Aluminum alloy 6063, T5 temper

Brush Material: Nylon Brush

Temperature Range: -70°F to 425°F

Mounting Options: select from options above

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Finishes: Clear Anodized Aluminum (Gray Brush), Dark Bronze Aluminum (Black Brush)

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: REACH and RoHS compliant

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a larger seal, see our NGP 614 Door Sweep with 2.5" Nylon Brush Seal.

Installation Instructions
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
