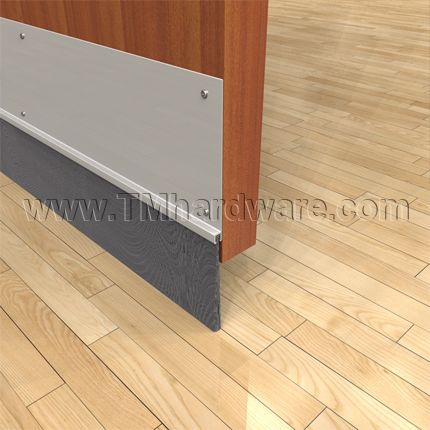

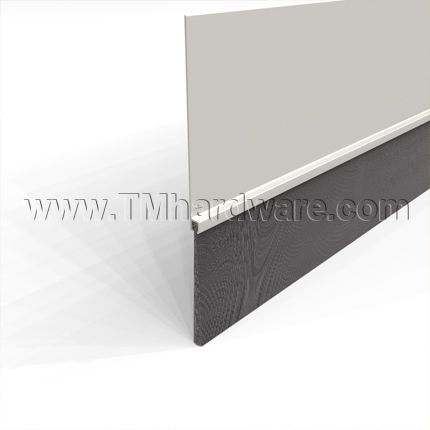

NGP I616 Door Sweep and Perimeter Gasket, 5.5" Aluminum Casing with 4" Nylon Brush

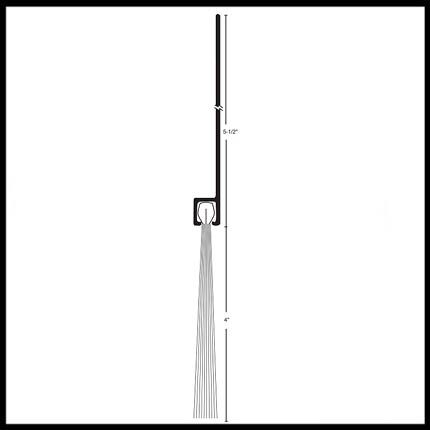

NGP #I616 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 5.5" H, while brush portion has a height of 4". Available in 2 finishes and is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information

Finish
Size
Mounting

Quantity

Add to compare

Mounting Options: select from options above

Screws Only: Screw holes are slotted for easy adjustment once installed
Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

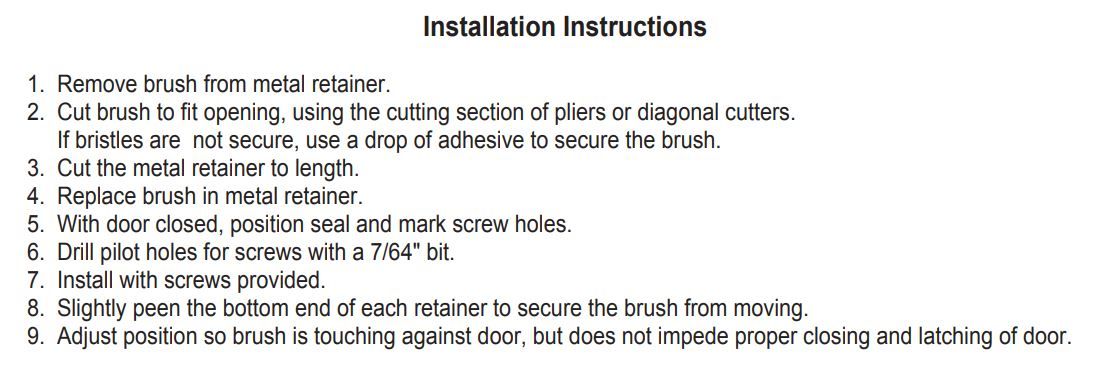

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: REACH and RoHS compliant

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to view all our Door Bottom Sweeps.

- SKU
  NGI-616A
QuickShip
No
Manufacturer
National Guard Products
MPN
I616, 616, 18950
Mounting
Screws, Adhesive + Screws
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -70°F to 425°F
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  4" height
- Total Height
  9-1/2" Height
- Length
  Custom Cut to Size
Installation
- Installation Screws
  #6 x 3/4" stainless steel sheet metal screws provided
Finishes
- Finish

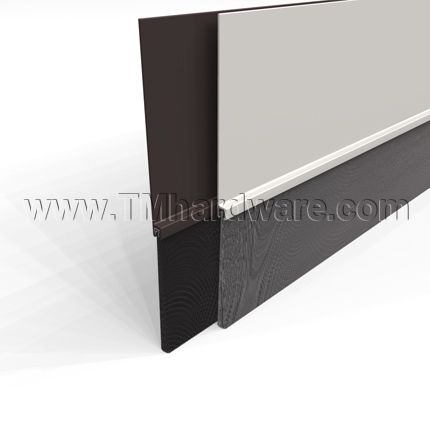

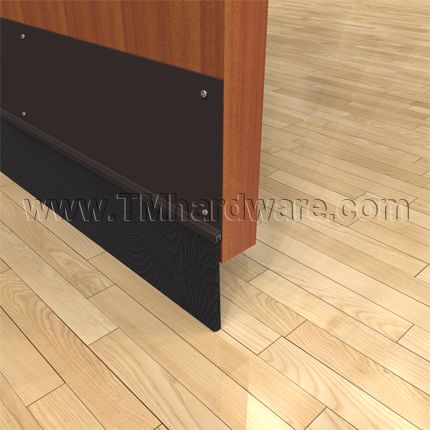

  Clear Anodized Aluminum (US28), Dark Bronze Finish
Compliance Details
- Warranty
  3 Year Limited Warranty

Click to Print Product Specs

Click to Print Installation Guide
