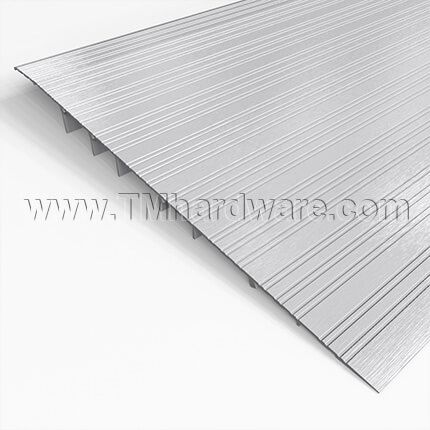

NGP RO175 Modular Ramp with 6" Top Plate, Aluminum 21" Width, 1.75" Offset
NGP RO175 Modular Ramp is designed to transition offset floor conditions and is wheelchair accessible. This ramp has a 6" top plate to ensure a smooth transition for an offset of 1.75". Available in choice of aluminum finishes and length is custom cut to size.
PRICED PER FOOT
NGP RO175 Modular Ramp is designed to transition offset floor conditions and is wheelchair accessible. This ramp has a 6" top plate to ensure a smooth transition for an offset of 1.75".
Material: Aluminum alloy 6063, T5 temper
Installation: See installation guide in tabs below. #10 FH zinc plated wood screws included.

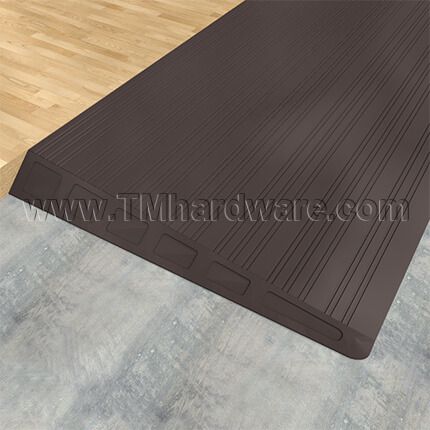

Miter Returns: The cast aluminum miter returns are used to seal the sides of the ramps for a neat, clean, finished appearance.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For additional modular ramps see our NGP RO200 Modular Ramp with 6" Top Plate, Aluminum 24" Width, 2" Offset
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPNRO175

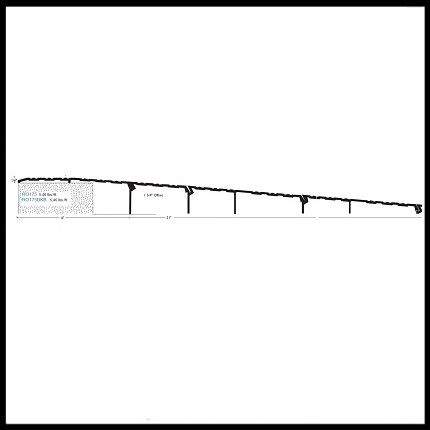

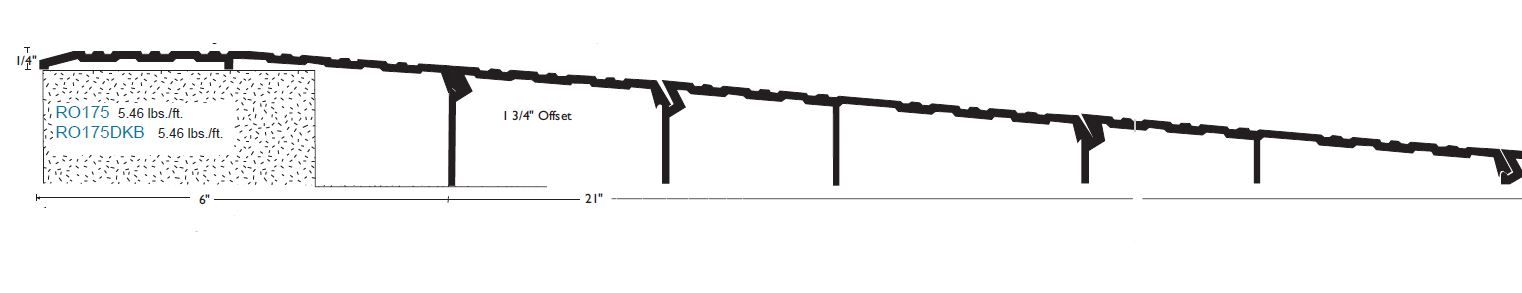

- Dimensions
-
Offset Height1.75" Height
-
Width27" Width
-
LengthCustom Cut to Size
-
Material Thickness.110" Thick
-
Top Plate6" Top Plate
-
Long Top Plate SpecificsTop plate measures 6" x 1/4".
-
- Ramp Design
-
MaterialAluminum
-
Ramp ComponentRamp End
-
Ramp TypeTop Plate Application
-
Installation#10 FH zinc plated wood screws included.
-
DrillingDrill holes are provided
-
- Additional Options
-
Miter ReturnsNot Required, Mill Finish Miter Returns (RCE-21), Dark Bronze Miter Returns (RCE-21DKB), SIA-Abrasive Slip Resistant Miter Returns (RCE-21SIA)
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Finish, Slip Resistant Aluminum (SIA)
-
- Compliance Details
-
Compliance DetailsADA Compliant, UL Listed, Positive Pressure Certified, BHMA Certified
-
Warranty3 Year Limited Warranty
-
