NGP RO225 Modular Ramp with 6" Top Plate, Aluminum 27" Width, 2.25" Offset
NGP RO225 Modular Ramp is designed to transition offset floor conditions and is wheelchair accessible. This ramp has a 6" top plate to ensure a smooth transition for an offset of 2.25". Available in choice of aluminum finishes and length is custom cut to size.
PRICED PER FOOT
NGP RO225 Modular Ramp is designed to transition offset floor conditions and is wheelchair accessible. This ramp has a 6" top plate to ensure a smooth transition for an offset of 2.25".
Material: Aluminum alloy 6063, T5 temper
Installation: See installation guide in tabs below. #10 FH zinc plated wood screws included.
Miter Returns - The corner is miter cut on a 45 degree angle and returned to the face of the frame for a neat, clean, finished appearance.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For additional modular ramps see our NGP RO250 Modular Ramp with 6" Top Plate, Aluminum 30" Width, 2.5" Offset
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPNRO225

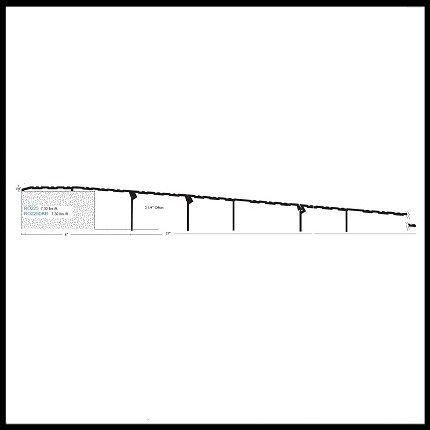

- Dimensions
-
Offset Height2.25" Height
-
Width33" Width
-
LengthCustom Cut to Size
-
Material Thickness.110" Thick
-
Top Plate6" Top Plate
-
Long Top Plate SpecificsTop plate measures 6" x .25"
-
- Ramp Design
-
MaterialAluminum
-
Ramp ComponentRamp End
-
Ramp TypeTop Plate Application
-
Installation#10 FH zinc plated wood screws included.
-
DrillingDrill holes are provided
-
- Finishes
-

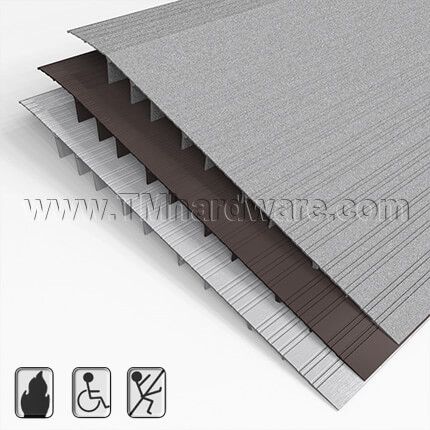

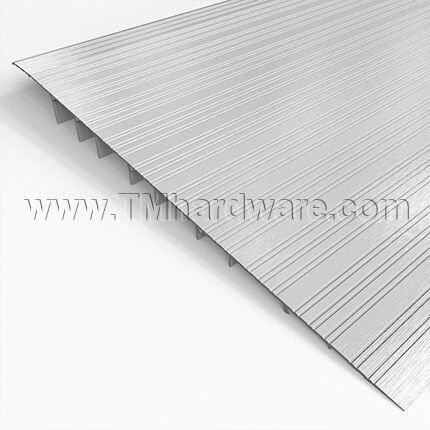

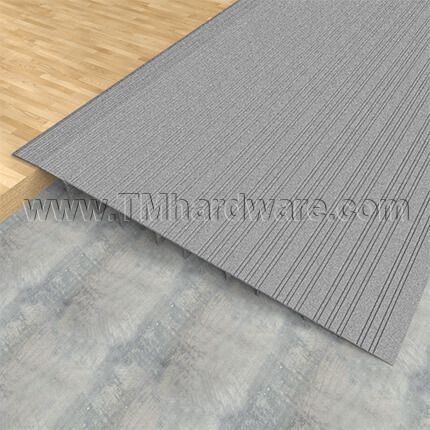

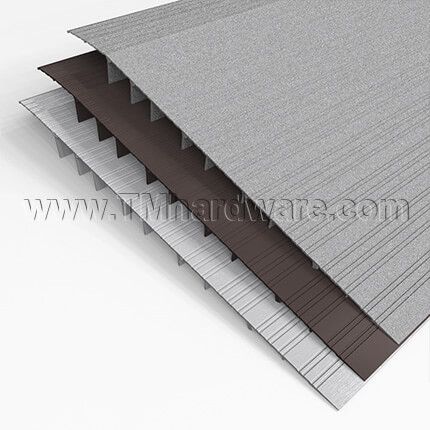

FinishMill Finish Aluminum (US27), Dark Bronze Finish, Slip Resistant Aluminum (SIA)
-
- Compliance Details
-
Compliance DetailsADA Compliant, BHMA Certified, Positive Pressure Certified, UL Listed
-
Warranty3 Year Limited Warranty
-
