Norton 7500, Door Closer, Surface Closer

 Regular Arm

• Only pull side application where double lever arm is used
• Most common mounting, providing the greatest closing efficiency

Parallel Arm

• Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations

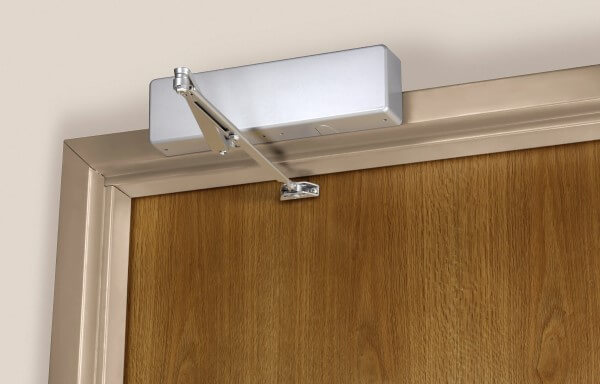

Top Jamb

• For efficiency purposes, this application provides the best alternative to the regular arm
• Requires a top rail on the door of just 2-1/8" (54mm)
• Provides the best control for doors in exterior walls that swing out of a building

Pull Side Slide Track

• Provides the smoothest lines available in a surface-mounted door closer
• Adjustable 85° to 110°

Low Profile Pull Side Slide Track

• Provides the smoothest lines available in a surface-mounted door closer
• Features narrow, slim track
• Adjustable 85° to 110°

Low Profile, Regular Arm

• Reduced height elbow joint and straight main arm
• Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance

CloserPlus® Arm

• Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments
• Prior to dead stop the door closer's backcheck feature slows the door speed to reduce the impact of the stop action
• Intended for use where an auxiliary door stop cannot be used and no more than moderate abuse is anticipated

CloserPlus Ramp™ Arm

• Ramp and plunger design that easily slides into place reducing wear
• Ideal for applications where the door will constantly be pulled out of hold open

CloserPlus Spring™ Arm

• Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments
• An additional steel buffer spring provides greater protection at the end of the door opening cycle

Low Profile, Parallel Arm

• Reduced height elbow joint and straight main arm
• Allows closer to be installed 1/2" higher up on door that standard parallel arms

Parallel Rigid Arm

• Enhanced variation of standard parallel arm assembly
• Intended for use in heavy traffic areas where auxiliary door stops are installed

Parallel Rigid Offset Arm

• Allows 1-1/4" clearance; when used in conjunction with a 6891 spacer block, the PRO arm provides 1-7/8" clearance to accommodate the use of a surface overhead stop/holder
• Well suited for applications where weather-stripping or other hardware prevents the use of the standard PR soffit plate

Push Side Slide Track

• Provides the smoothest lines available in a surface-mounted door closer
• Adjustable 85° to 110°

Low Profile Push Side Slide Track

• Provides the smoothest lines available in a surface-mounted door closer
• Features narrow, slim track
• Adjustable 85° to 110°

Regular Rigid Arm

• Double lever arm features a non-adjustable secondary arm
• Orbitally riveted joints prevent tampering or disassembly

Unitrol Parallel Arm

• Combines the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door-stopping shock loads
• A compression spring buffer at the soffit plate/arm shoe will absorb 30 lbs. of force, 5° prior to the door's dead stop
• Most controlled stop available with a surface closer
• Door width must be specified when ordering

Unitrol Top Jamb Arm

• Combines the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door-stopping shock loads
• A compression spring buffer at the soffit plate/arm shoe will absorb 30 lbs. of force, 5° prior to the door's dead stop
• Most controlled stop available with a surface closer
• Reveal must be specified when ordering
