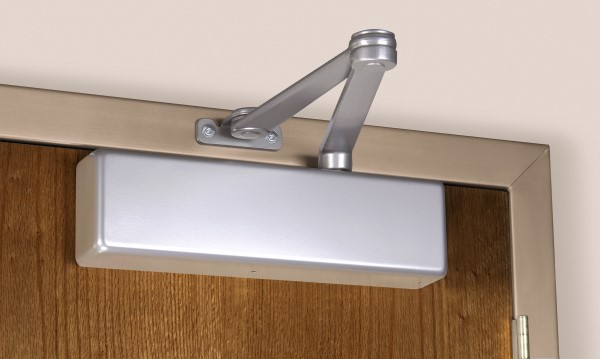

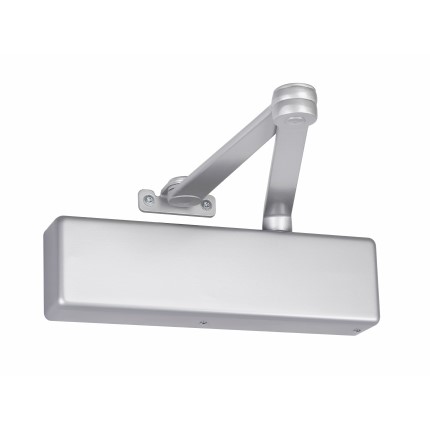

Norton 7570, Door Closer, Surface Closer

Norton 7570, Door Closer, Surface Closer, Regular rigid arm, No Hold Open, Aluminum Painted Finish
Norton

The Norton's 7570 Series Door Closer can function dependably for a broad range of openings and is available with several arm and track assemblies. This door closer is designed to prevent tampering, withstanding the greatest amount of abuse, and safeguarding doors, walls, and hardware

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-7570-689
    • Market price:$1,161.64
      • save 25%
    • Starting price: Price: $871.23 per item


    The Norton's 7570 Series Door Closer can function dependably for a broad range of openings and is available with several arm and track assemblies. This door closer is designed to prevent tampering, withstanding the greatest amount of abuse, and safeguarding doors, walls, and hardware

    Custom Options:

    • Arm Type: selection of arm types available, select above
      • NHO - Non-Hold Open
      • HO - Hold Open
    • Finish: selection of finishes available, select above
    • Covers:  selection of optional covers available, select above
    • Optional Drop Plate: selection of optional features available, select above

    Features:

    • Adjustable, heavy-duty spring sizes 1-6
    • Security arms - joints feature permanent, orbital riveted elbow and arm show/soffit plate joints which prevent disassembly
    • Interior or exterior doors
    • Adjustable backcheck cushioning and positioning
    • Heavy-duty arms available

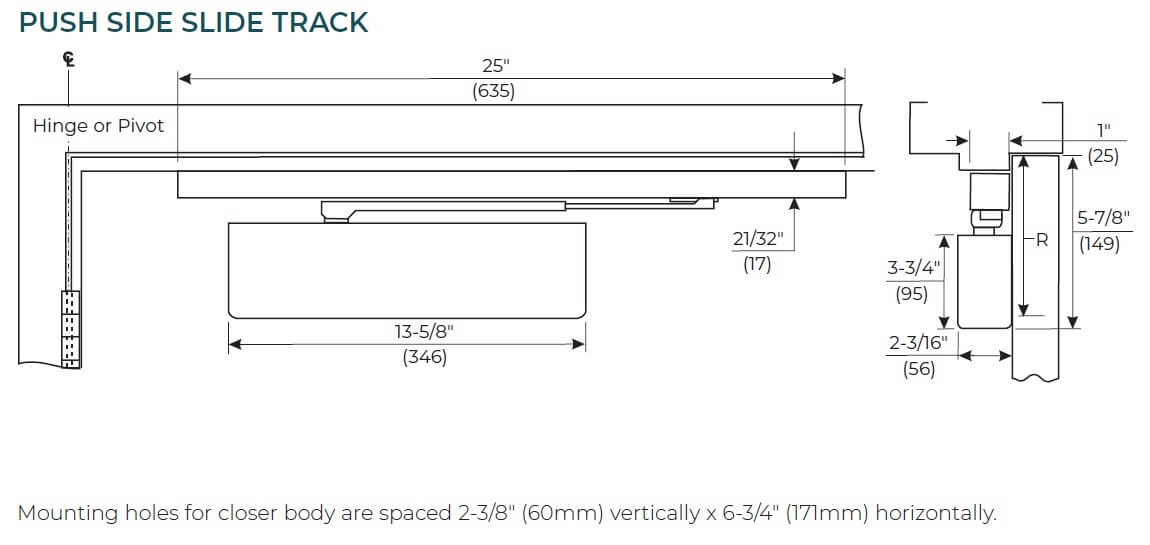

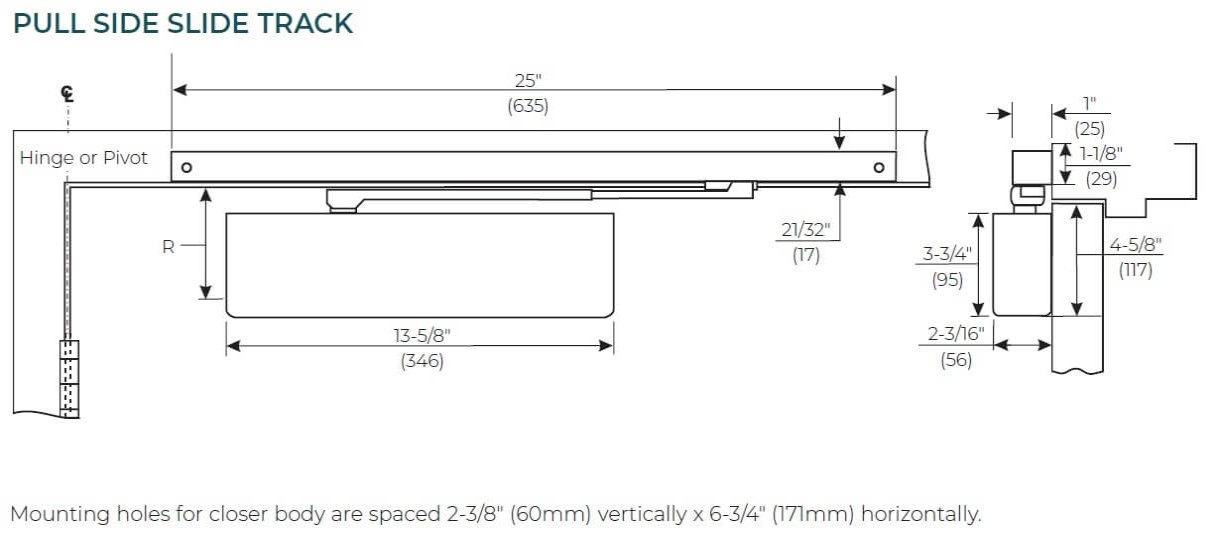

    • Slide track - push or pull side mounting
    • Fasteners: sex nuts, SDST
    • Torx® drive machine screws with security pin standard
    • NorGlide® fluid
    • **CloserPlus® Arm
      • Door closers shall have a field reversible door stop. Hold open tension shall be adjustable effective at one point selected at installation, from 85° - 110° in five-degree increments. Closers shall be provided for parallel arm installation using a forged rigid steel main arm and secondary arm.

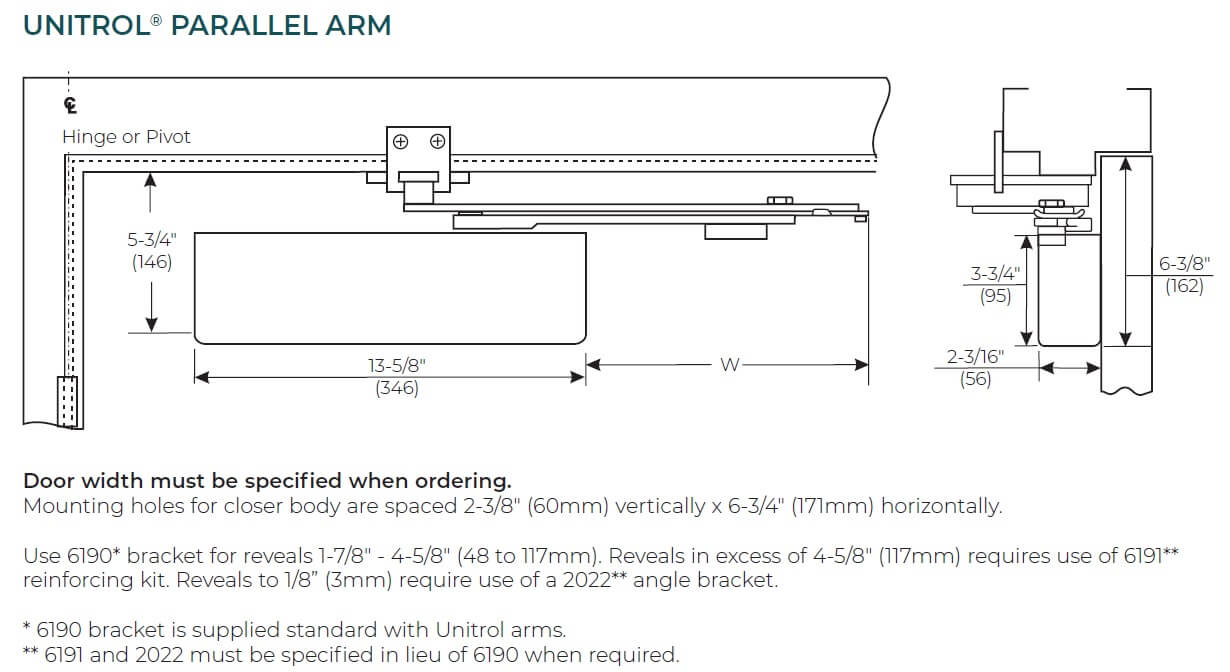

    • **Unitrol® Arm
      • Door closers shall have a fixed door stop feature effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop shall be cushioned by a shock-absorbing heavy-duty spring action effective at the [soffit plate] [arm shoe] pivot. [Closers shall be provided for parallel arm installation using rigid steel main arm and secondary arm lengths proportional to the door width.] [Closers shall be provided for top jamb installation using steel, rigid main arm and telescoping secondary arm adequate for the frame reveal of the openings.]

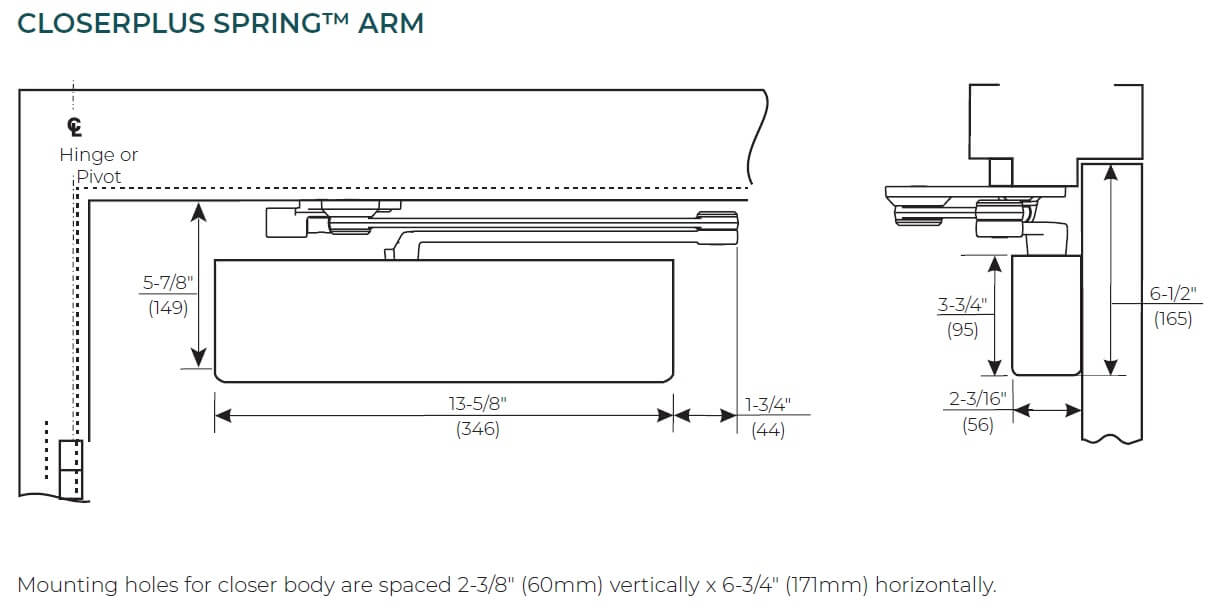

    • **CloserPlus Spring™ Arm
      • Door closers shall have built-in door stop [and holder] effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop mechanism shall be reversible and have a buffer spring that engages prior to the dead stop feature, reducing shock loads to the door and frame assembly. Door stop mechanism shall be attached to soffit plate. [Hold open mechanism shall have engage/disengage selection actuated by thumbturn]. Closers

    Benefits :

    • Designed to withstand maximum abuse, deter tampering and help protect doors, walls & hardware
    • Constructed with robust materials and internal components
    • Staking limits ability to accidentally back out the valve while adjusting closer
    • Arm configurations meet broad range of applications
    • Proprietary lubricate delivers optimal performance and efficiency

    Certifications:

    • ANSI/BHMA A117.1
    • ANSI/BHMA A156.4, Grade 1
    • Americans with Disabilities Act (ADA) Compliant
    • MEA - City of New York Approved
    • UL 10C Positive Pressure up to 3 hours
    • UL-cUL Listed

    PRICED PER UNIT

    This product has a 30-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton 1601SS, Door Closer, Surface Closer, Corrosion Resistant

      • SKU
        NR-7570-689
    • QuickShip
      No
    • Manufacturer
      Norton
    • MPN
      7570
    • Optional Drop Plate
      No Drop Plate, Narrow frame (7786), Narrow top rail (7788)
    • Optional Cover
      Standard, Regular arm, right hand (7770MRR), Regular arm, left hand (7770MRL), Parallel arm, right hand (7770MPR), Parallel arm, left hand (7770MPL)
    • Description
      • Series
        Nroton 7570 Series
      • Size
        Adjustable 1-6
      • BHMA Grade
        Grade 1
      • Arm Type

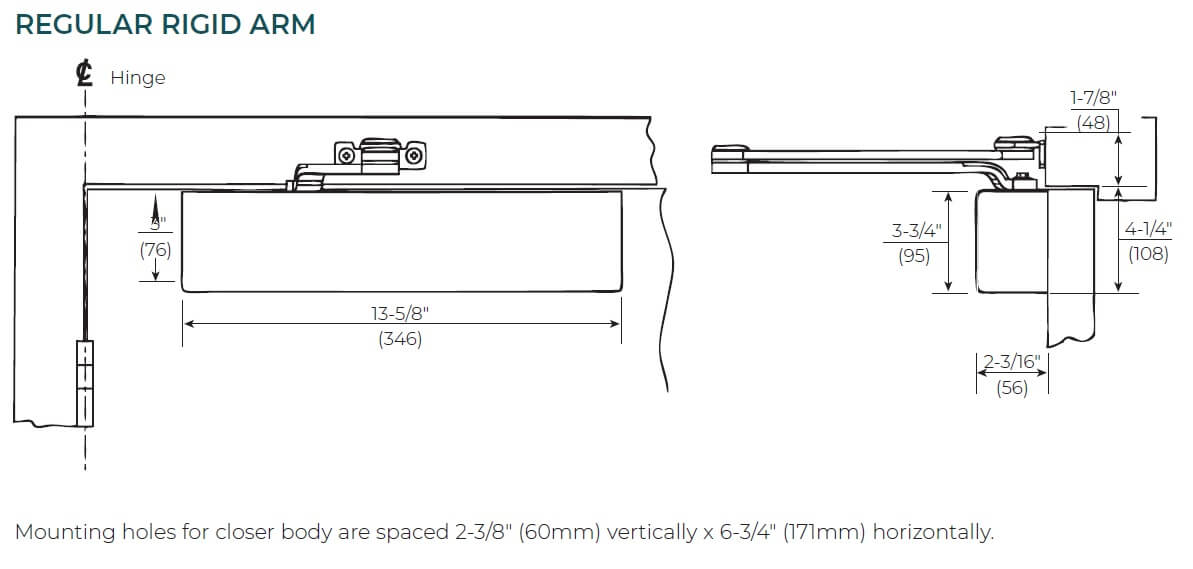

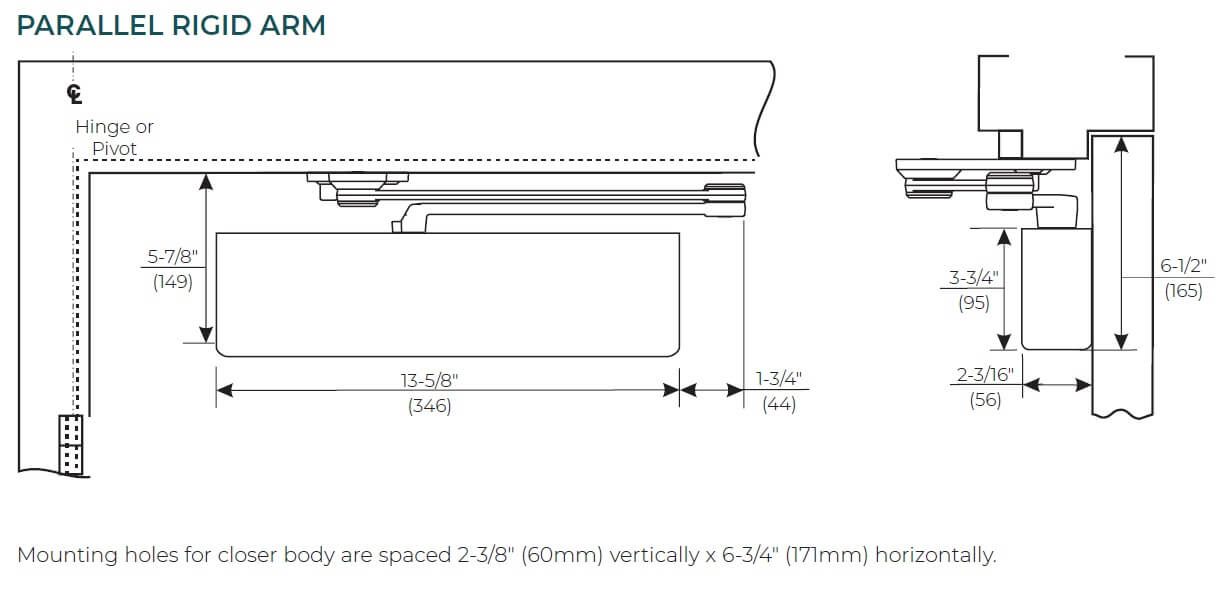

        Regular rigid arm (NHO), Parallel Rigid Arm (NHO), CloserPlus® Arm (NHO), CloserPlus Spring™ arm (NHO), Unitrol® parallel arm (NHO), Pull side slide track (NHO), Low profile, push side slide track (NHO), CloserPlus® arm (HO), CloserPlus Spring™ arm (HO)
      • Handing
        Right Handed, Left Handed
      • Closer Body Material
        Cast Aluminum
    • Door Description
      • Door Weight
        Up to 250 Lbs.
    • Features
      • Function
        No Hold Open, Hold Open
      • Adjustable Spring
        Yes
    • Finishes
      • Finish

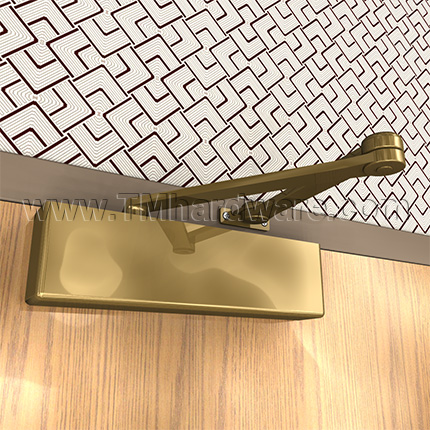

        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted Finish (693), Medium Bronze Painted (694), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        ADA Compliant, Buy American Act, MEA - City of New York Approved, UL 10C Positive Pressure up to 3 hours, Ul-cUL Listed
      • ANSI Designation
        ANSI/BHMA A117.1, ANSI/BHMA A156.4, Grade 1
      • Warranty
        30 Year Limited Warranty
