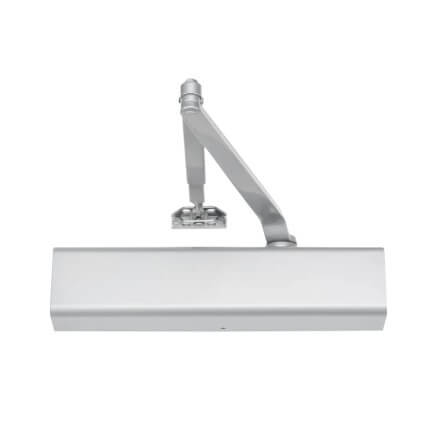

Norton 8501 Series, Door Closer, Surface Closer, with Full Cover
Surface closers in the 8501 Series door closer come in multiple sizes, provide a full range of arms, and have a sleek, minimalistic style that makes them ideal for architectural openings with moderate to heavy traffic. It is available in multiple sizes with a full range of arms, choose from the drop-down menus. See more details in the description below.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton 8501 Series, Door Closer - QuickShip
PRICED PER UNIT
See tabs below for additional information
Surface closers in the 8501 Series door closer come in multiple sizes, provide a full range of arms, and have a sleek, minimalistic style that makes them ideal for architectural openings with moderate to heavy traffic. It is available in multiple sizes with a full range of arms, choose from the drop-down menus. See more details in the description below.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton 8501 Series, Door Closer - QuickShip
Features:
- Cast aluminum closer
- Adjustable spring sizes 1-6
- Tri-packed
- Exceeds 25 million cycles
- 1-1/4" diameter piston
- Staked valves
- Non-handed
- 2-1/8" projection (standard covers)
- Interior or exterior doors
- All standard arm applications allow doors to swing 180, conditions permitting
- Standard, separate and independent latch, sweep, and backcheck intensity valves
- Hold open, heavy-duty and low profile arms available
- Slide track - push or pull side mounting
- Mounting plates, drop plates, brackets available
- Fasteners: sleeve nuts & bolts, thru-bolt grommet nuts, Torx®
- **CloserPlus® Arm
- Door closers shall have a field reversible door stop. Hold open tension shall be adjustable effective at one point selected at installation, from 85° - 110° in five-degree increments. Closers shall be provided for parallel arm installation using a forged rigid steel main arm and secondary arm.
- **Unitrol® Arm
- Door closers shall have a fixed door stop feature effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop shall be cushioned by a shock-absorbing heavy-duty spring action effective at the [soffit plate] [arm shoe] pivot. [Closers shall be provided for parallel arm installation using rigid steel main arm and secondary arm lengths proportional to the door width.] [Closers shall be provided for top jamb installation using steel, rigid main arm and telescoping secondary arm adequate for the frame reveal of the openings.]
- **CloserPlus Spring™ Arm
- Door closers shall have built-in door stop [and holder] effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop mechanism shall be reversible and have a buffer spring that engages prior to the dead stop feature, reducing shock loads to the door and frame assembly. Door stop mechanism shall be attached to soffit plate. [Hold open mechanism shall have engage/disengage selection actuated by thumbturn]. Closers shall be provided for parallel installation using a forged rigid steel main arm and secondary arm.
Arm Type: see "Arm Mounting Type" tab for more information
Benefits :
- Constructed with robust materials and internal components
- One package covers regular, top jamb and parallel arm mounting
- Stringent testing supports a long-life of reliability
- Staking limits ability to accidentally back out the valve while adjusting closer
- Sleek, minimal design provides clean aesthetic
- Arm configurations meet broad range of applications
- Extensive offering of accessories to assist with the most difficult applications
- Proprietary lubricate delivers optimal performance and efficiency
Certifications:
- ANSI/BHMA A117.1
- ANSI/BHMA A156.4, Grade 1
- Americans with Disabilities Act (ADA) Compliant
- Buy American Act
- Environmental Product Declaration (EPD)
- UL 10C Positive Pressure up to 3 hours
- UL-cUL Listed
PRICED PER UNIT
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 30-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
Click here to view Norton 8301, Door Closer, Surface Closer, with Slim Line Cover, Non-Hold Open
Regular Arm
- Only pull side application where double lever arm is used
- Most common mounting, providing the greatest closing efficiency
Parallel Arm
- Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
- Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
Top Jamb
- For efficiency purposes, this application provides the best alternative to the regular arm
- Requires a top rail on the door of just 2-1/8" (54mm)
- Provides the best control for doors in exterior walls that swing out of a building
Pull Side Slide Track
- Provides the smoothest lines available in a surface-mounted door closer
- Adjustable 85° to 110°
Low Profile, Regular Arm
- Reduced height elbow joint and straight main arm
- Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance
CloserPlus® Arm
- Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments
- Prior to dead stop the door closer's backcheck feature slows the door speed to reduce the impact of the stop action
- Intended for use where an auxiliary door stop cannot be used and no more than moderate abuse is anticipated
CloserPlus Ramp™ Arm
- Ramp and plunger design that easily slides into place reducing wear
- Ideal for applications where the door will constantly be pulled out of hold open
CloserPlus Spring™ Arm
- Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments
- An additional steel buffer spring provides greater protection at the end of the door opening cycle
Low Profile, Parallel Arm
- Reduced height elbow joint and straight main arm
- Allows closer to be installed 1/2" higher up on door that standard parallel arms
Parallel Rigid Arm
- Enhanced variation of standard parallel arm assembly
- Intended for use in heavy traffic areas where auxiliary door stops are installed
Parallel Rigid Offset Arm
- Allows 1-1/4" clearance; when used in conjunction with a 6891 spacer block, the PRO arm provides 1-7/8" clearance to accommodate the use of a surface overhead stop/holder
- Well suited for applications where weather-stripping or other hardware prevents the use of the standard PR soffit plate
Push Side Slide Track
- Provides the smoothest lines available in a surface-mounted door closer
- Adjustable 85° to 110°
Low Profile Push Side Slide Track
- Provides the smoothest lines available in a surface-mounted door closer
- Features narrow, slim track
- Adjustable 85° to 110°
Regular Rigid Arm
- Double lever arm features a non-adjustable secondary arm
- Orbitally riveted joints prevent tampering or disassembly
Unitrol Parallel Arm
- Combines the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door-stopping shock loads
- A compression spring buffer at the soffit plate/arm shoe will absorb 30 lbs. of force, 5° prior to the door's dead stop
- Most controlled stop available with a surface closer
- Door width must be specified when ordering
Unitrol Top Jamb Arm
- Combines the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door-stopping shock loads
- A compression spring buffer at the soffit plate/arm shoe will absorb 30 lbs. of force, 5° prior to the door's dead stop
- Most controlled stop available with a surface closer
- Reveal must be specified when ordering
-
QuickShipNo
-
ManufacturerNorton
-
MPN8501
- Description
-
SeriesNroton 8501 Series
-
SizeAdjustable 1-6
-
BHMA GradeGrade 1
-
Arm TypeTri-packed: regular, parallel or top jamb (to 3" reveal), Regular arm only, Top jamb only; 3" maximum reveal, Parallel arm only, Top jamb only; reveals 2-3/4 to 7", Low profile, regular arm, Low profile, parallel arm, Parallel Rigid Arm, CloserPlus® Arm, CloserPlus Spring™ arm, Unitrol® parallel arm (specify door width), Unitrol® top jamb arm (specify reveal*), Pull side slide track, Low profile, pull side slide track, Top jamb, pull side slide track (8146 drop plate included), Push side slide track, Low profile, push side slide track
-
HandingNon Handed
-
Closer Body MaterialCast Aluminum
-
- Door Description
-
Door WeightUp to 250 LB
-
- Features
-
FunctionNon-hold open
-
Adjustable SpringYes
-
- Finishes
-
FinishAluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted (693), Medium Bronze Painted (694), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
-
- Compliance Details
-
Compliance DetailsAmericans with Disabilities Act (ADA) Compliant, Buy American Act, Environmental Product Declaration (EPD), UL 10C Positive Pressure up to 3 hours, Ul-cUL Listed
-
ANSI DesignationANSI/BHMA A117.1, ANSI/BHMA A156.4, Grade 1
-
Warranty30 Year Limited Warranty
-
