Norton Checkmate 1 Series, Concealed, Heavy Duty Electromechanical Closer Stainless Steel size 3 - QuickShip

Norton Checkmate 1 Series, Concealed, Heavy Duty Electromechanical Closer - QuickShip, Hold Open
Rixson

Norton's 1 Series Checkmate, a heavy-duty concealed stop and holder. It is designed to be used in high abuse, heavy traffic situations. Available with Friction Stay, Hold Open, or Stop functions in different finishes of your choice.

For more finishes, See Our Norton Checkmate 1 Series, Concealed

PRICED PER UNIT

See tabs below for additional information
    • Weight
      6 lbs
    • SKU
      NR-1-326-630-085455
    • Market price:$596.64
      • save 25%
    • Starting price: Price: $447.48 per item


    Norton's 1 Series Checkmate, a heavy-duty concealed stop and holder. It is designed to be used in high abuse, heavy traffic situations. Available with Friction Stay, Hold Open, or Stop functions in different finishes of your choice. (See options above)

    For more finishes, See Our Norton Checkmate 1 Series, Concealed

    Features:

    • High traffic, heavy abuse applications
    • Heavy duty construction
    • Concealed mounting
    • Slide track arm
    • For use on interior or exterior, single or double-acting doors
    • Maximum opening is 110 degrees
    • 1-3/4” minimum door thickness; for thicker doors, specify when ordering
    • Friction, hold open and stop functions
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • Durable slider cam and shock block
    • Surface on/off knob on hold open models
    • 1 3/16" square channel
    • Hanging means by other than standard butts or offset pivots requires special templating and pricing; consult factory
    • For high-security areas, Torx® screws available for exposed fasteners

    Benefits:

    • Helps protect door and frame in abusive situations
    • Concealed for added aesthetics
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door-closing hardware

    Certification:

    •  Certain Models ANSI/BHMA A156.8, Grade 1 Certified
    • Stop functions UL listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 99 Series, Electromechanical Closer

      • Weight
        6 lbs
      • SKU
        NR-1-326-630-085455
    • QuickShip
      Yes
    • Manufacturer
      Rixson
    • Description
      • Series
        1 Series checkmate

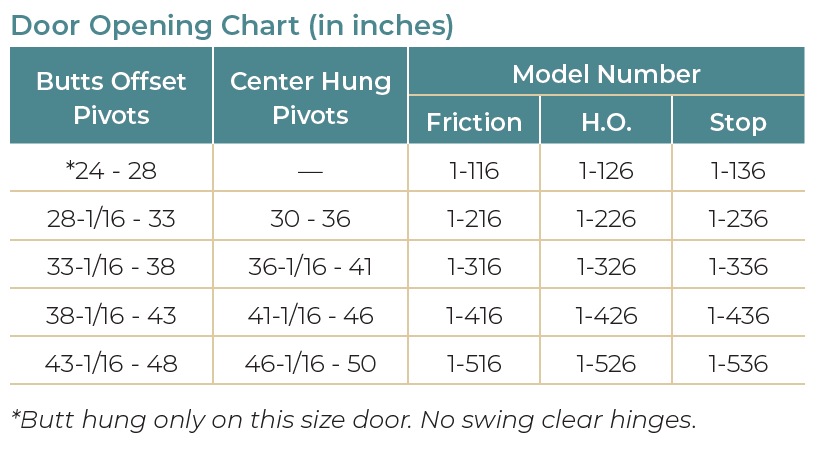

      • Size
        33 1/16" - 38" Butts Offset or 36 1/16" - 41" Center Hung
      • Closer Performance
        Heavy Duty
      • Handing
        Non Handed
    • Door Description
      • Door Opening Degree
        Up to 110°
    • Features
      • Function
        Hold Open, Stop
      • Adjustable Spring
        No
    • Finishes
      • Finish
        Satin Stainless Steel (630)
    • Compliance Details
      • Compliance Details
        Stop functions UL listed
      • ANSI Designation
        Certain Models ANSI/BHMA A156.8, Grade 1 Certified
      • Warranty
        2 Year Limited Warranty
