Norton Checkmate 1ADJ Series, Concealed, Heavy Duty Electromechanical Closer

Norton Checkmate 1ADJ Series, Concealed, Heavy Duty Electromechanical Closer, Hold Open, Aluminum Painted Finish
Norton

Norton's 1ADJ Series Checkmate, a heavy-duty concealed stop and holder. It is designed to be used in high abuse, heavy traffic situations. Available with Friction Stay, Hold Open, or Stop functions in different finishes of your choice.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-1ADJ-026-689
    • Market price:$571.78
      • save 25%
    • Starting price: Price: $428.84 per item


    Norton's 11ADJ Series Checkmate, a heavy-duty concealed stop and holder. It is designed to be used in high abuse, heavy traffic situations. Available with Friction Stay, Hold Open, or Stop functions in different finishes of your choice. (See options above)

    Features:

    • High traffic, heavy abuse applications
    • Heavy duty construction
    • Concealed mounting
    • Slide track arm
    • For use on interior or exterior, single or double acting doors
    • 110° maximum opening (except 1ADJ for center hung 30-36" door which is 105°)
    • Unit is adjustable
    • 1-3/4" minimum door thickness, for thicker doors consult factory
    • Hold open and stop functions
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • Durable slider cam and shock block
    • 1 3/16" square channel
    • Degree of opening is fully adjustable and can be adapted to changing needs
    • For high security areas, Torx® screws available for exposed fasteners
    • Hanging means other than standard butts or offset pivots require special templating and pricing; consult factory

    Benefits:

    • Helps protect door and frame in abusive situations
    • Adjustable - allows opening degree to be set based on application needs
    • Concealed in door for added aesthetics
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door closing hardware

    Certification:

    • ANSI/BHMA A156.8, Grade 1
    • Stop functions UL listed

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 1 Series, Concealed, Heavy Duty Electromechanical Closer

      • SKU
        NR-1ADJ-026-689
    • QuickShip
      No
    • Manufacturer
      Norton

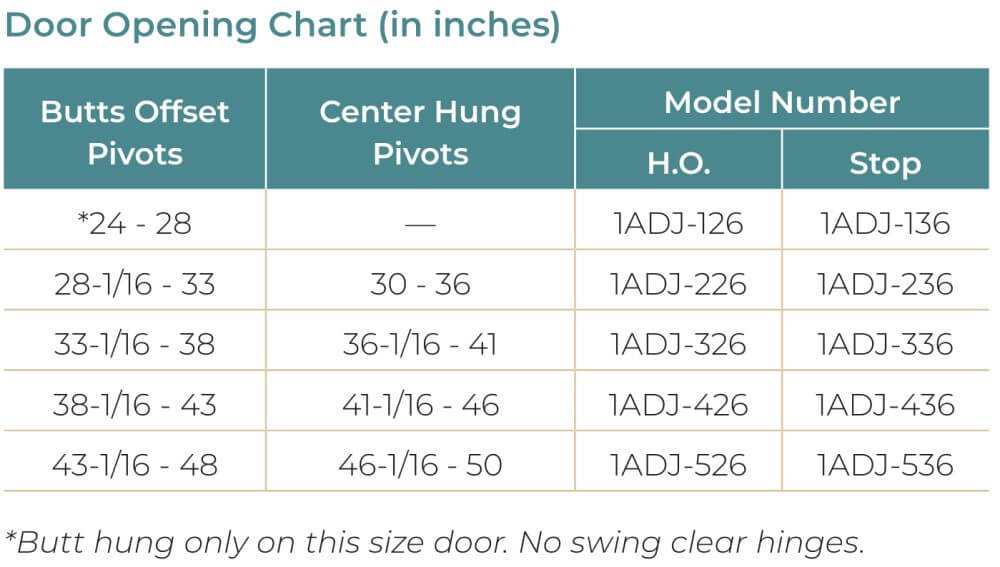

    • Door Opening
      24" - 28" Butts Offset, 28 1/16" - 33" Butts Offset or 30"-36" Center Hung, 33 1/16" - 38" Butts Offset or 36 1/16" - 41" Center Hung, 38 1/16" - 43" Butts Offset or 41 1/16" - 46" Center Hung, 43 1/16" - 48" Butts Offset or 46 1/16" - 50" Center Hung
    • Description
      • Series
        1 Series checkmate
      • Closer Performance
        Heavy Duty
      • Handing
        Non Handed
    • Door Description
      • Door Opening Degree
        Up to 110°
    • Features
      • Function
        Hold Open, Stop
      • Adjustable Spring
        No
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Satin Chrome (652), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Satin Brass (633), Satin Bronze (639), Bright Stainless Steel (629), Flat Black (631), Polished Brass (632), Polished Bronze (637), Polished Nickel (645), Satin Nickel (646)
    • Compliance Details
      • Compliance Details
        Stop function UL listed for fire door assemblies
      • ANSI Designation
        ANSI/BHMA A156.8, Grade 1 Certified
      • Warranty
        2 Year Limited Warranty
