Norton Checkmate 5 Series, Concealed, Standard Duty, Electromechanical Closer

Norton Checkmate 5 Series, Concealed, Heavy Duty Electromechanical Closer, Hold Open, Aluminum Painted Finish
Norton

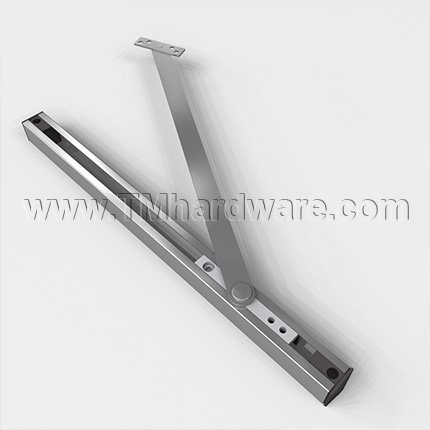

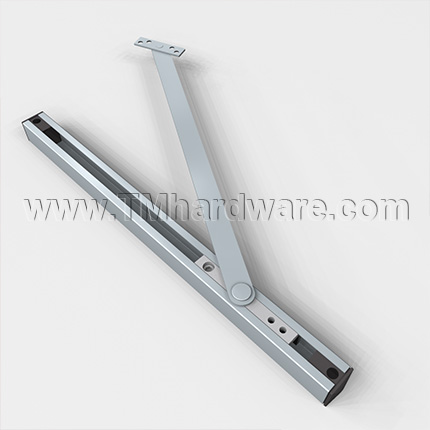

Norton's 5 Series Checkmate, an adjustable standard-duty concealed stop and holder. It is designed to be used in medium-weight doors in moderate-traffic situations. Available with Friction Stay, Hold Open, Stop or Multi-Functions in different finishes of your choice.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-5-026-689
    • Market price:$228.26
      • save 25%
    • Starting price: Price: $171.20 per item


    Norton's 5 Series Checkmate, an adjustable standard-duty concealed stop and holder. It is designed to be used in medium-weight doors in moderate-traffic situations. Available with Friction Stay, Hold Open, Stop or Multi-Functions in different finishes of your choice.

    Features:

    • Moderate traffic, medium weight door applications
    • Standard duty construction

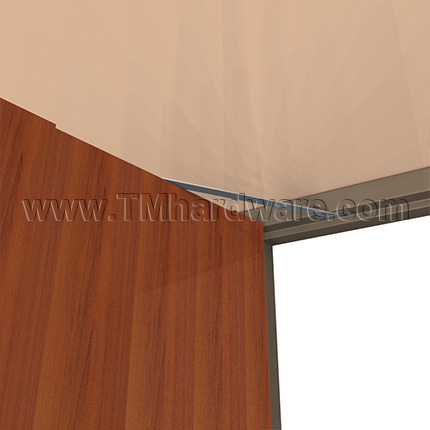

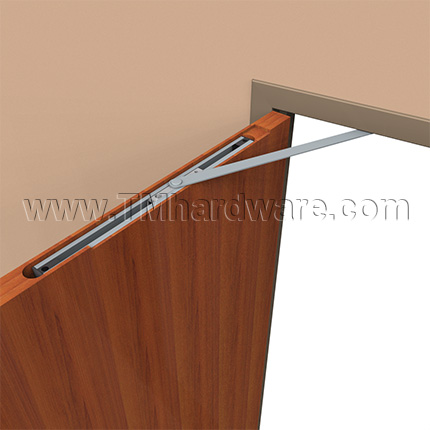

    • Concealed mounting
    • Slide track arm
    • For use on interior, single or double acting doors
    • Maximum opening is 110° degrees
    • Standard door thickness is 1 3/4"
    • Hold open and stop functions
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • Durable slider cam and shock block
    • 3/4" square channel
    • Complete screw packet for installation in wood and machine screws for door and frame
    • For high security areas, Torx® screws available for exposed fasteners
    • Degree of opening determined by templating - not field adjustable
    • Hanging means other than standard butts or offset pivots require special templating and pricing; consult factory

    Benefits:

    • Concealed for added aesthetics
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door closing hardware

    Certification:

    • Certain Models ANSI/BHMA A156.8, Grade 1 Certified
    • Stop functions UL listed

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 2 Series, Concealed, Heavy Duty Electromechanical Closer

      • SKU
        NR-5-026-689
    • QuickShip
      No
    • Manufacturer
      Norton
    • Door Opening
      18" - 24" Butts Offset, 24 1/16" - 30" Butts Offset or 27"-32" Center Hung, 30 1/16" - 36" Butts Offset or 32 1/16" - 32 1/2" Center Hung, 36 1/16" - 42" Butts Offset or 38 9/16" - 45" Center Hung, 42 1/16" - 48" Butts Offset or 45 1/16" - 48" Center Hung
    • Description
      • Series
        5 Series checkmate
      • Closer Performance
        Standard Duty
      • Handing
        Non Handed
    • Features
      • Function
        Hold Open, Stop
      • Adjustable Spring
        No
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Satin Chrome (652), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e)
    • Compliance Details
      • Compliance Details
        Stop functions UL listed
      • ANSI Designation
        Certain Models ANSI/BHMA A156.8, Grade 1 Certified
      • Warranty
        2 Year Limited Warranty
