Pemko #315N Door Bottom .438" Neoprene Seal - QuickShip

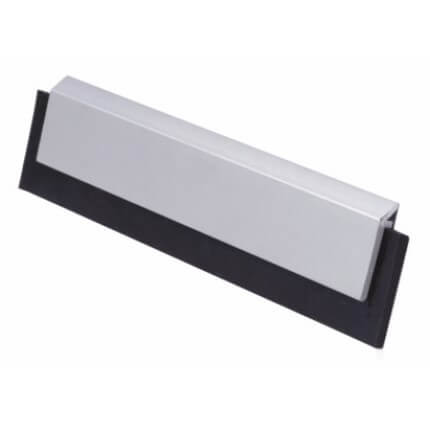

Pemko #3151N Door Bottom, 1.25" Aluminum Casing with 1" Neoprene Seal, Clear Anodized Aluminum, 36" Length, Clear Anodized Aluminum Finish
Pemko Manufacturing

This door bottom, with a 1.25" sleek aluminum casing is fitted with a neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Available in Clear Anodized Aluminum.

For more options and finishes, See Our Pemko #315N Door Bottom, Aluminum or Bronze with .438" Neoprene Seal

PRICED PER FOOT


See tabs below for additional information
    • SKU
      PK315CN36-085639
    • Market price:$20.40
      • save 10%
    • Starting price: Price: $18.36 per foot


    This door bottom is surface applied to create a seal between the door bottom and threshold / floor surface. It is fitted with a fire, smoke and air infiltration rated neoprene extrusion. Encased in a 1.25" high quality aluminum / brass casing, it is surely long-lasting and will provide ongoing superior performance and will not impede proper operation of door. Available in Clear Anodized Aluminum.

    For more options and finishes, See Our Pemko #315N Door Bottom, Aluminum or Bronze with .438" Neoprene Seal

    Installation instructions and screws provided. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5-year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.


    Click here to return to our Rubber Door Bottom category page.

      • SKU
        PK315CN36-085639
    • QuickShip
      Yes
    • Manufacturer
      Pemko Manufacturing
    • MPN
      315CN
    • About this Product
      • Door Shoe Retainer Material
        Aluminum, Bronze
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Surface Mounted

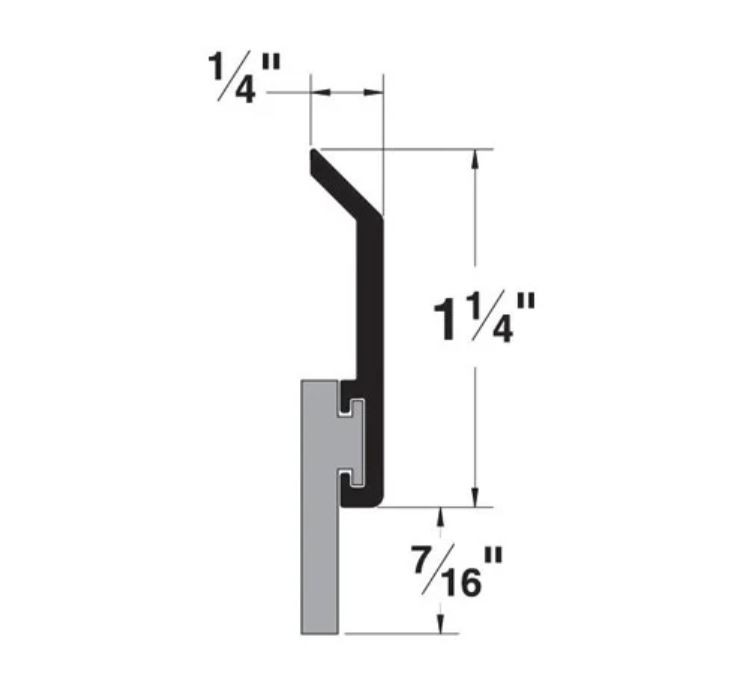

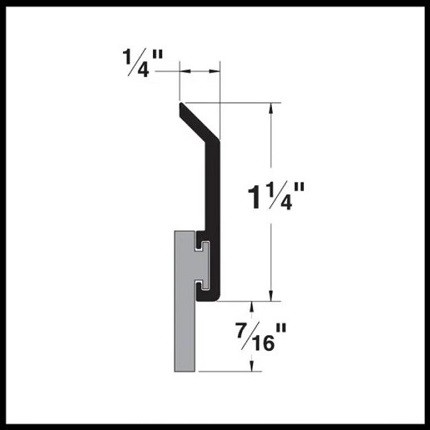

    • Dimensions
      • Seal Height
        7/16" Height
      • Total Height
        1-11/16" Height
      • Additional Dimensions
        Door seal is 1/4" thick
      • Length
        36" Length, 42" Length, 48" Length, 36" Length w/ Tek Screws
    • Installation
      • Drill Holes
        Drill holes are provided
    • Finishes
      • Finish

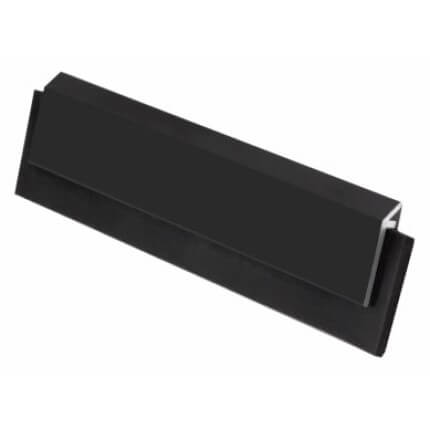

        Clear Anodized Aluminum (US28), Dark Bronze Aluminum (US10B), Black Suede Powder Coat (BSP)
    • Compliance Details
      • Compliance Details
        Fire Rated, Air Infiltration Rated, Smoke Rated, BHMA Certified, UL Classified, Sound Rated
      • ANSI Designation
        R3B434, R3B435
      • Warranty
        5 Year Limited Warranty

    Click to Print



    P315 Installation Guide:

    Click to View Ratings Explained



    Finishes Comply with the Following ANSI / BHMA Codes:

    • Clear Anodized Aluminum - US28 / 628
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Bright Dip Gold Anodized Aluminum - US3 / 707
    • Gold Anodized Aluminum - US4 / 688
    • Satin Nickel Anodized Aluminum - US15 / 619
    • Painted White Aluminum - 714
    • Bronze Mill Finish - US4 / 72
