Pemko PSLIDE PEMKOMATIC, Automatic Door Operating System

Pemko PSLIDE PEMKOMATIC, Automatic Door Operating System, Black Suede Powder Coat Finish
Pemko Manufacturing

Versatile electromechanical solutions for manual sliding doors are provided by our PemkoMaticTM (PSLIDE) low-energy automatic door operating system, which offers convenient multi-access choices such as a keypad, push button, or wave-to-open sensor. It is perfect for both new installations and retrofitting old openings since it is designed to fit smoothly with both sliding and pocket doors. The system has a stylish cover that blends functionality with a simple, attractive appearance.

SOLD PER SET

See tabs below for additional information
    • SKU
      PKPSLIDE-BSP/36
    • Market price:$3,440.27
      • save 10%
    • Starting price: Price: $3,096.24 per set
    Additional discounts will be applied when added to cart!


    Versatile electromechanical solutions for manual sliding doors are provided by our PemkoMaticTM (PSLIDE) low-energy automatic door operating system, which offers convenient multi-access choices such as a keypad, push button, or wave-to-open sensor. It is perfect for both new installations and retrofitting old openings since it is designed to fit smoothly with both sliding and pocket doors. The system has a stylish cover that blends functionality with a simple, attractive appearance.

    Features:

    • Cover and track can be cut to size
    • Built to maintaining functionality and security long-term
    • Supports doors up to 330 lbs
    • Easy-to-use controls
    • New construction or retrofit
    • Designed for smooth and silent door movement
    • Adjustable 0-24 second open time
    • Certified to UL325 and tested to A156.38
    • Customizable settings

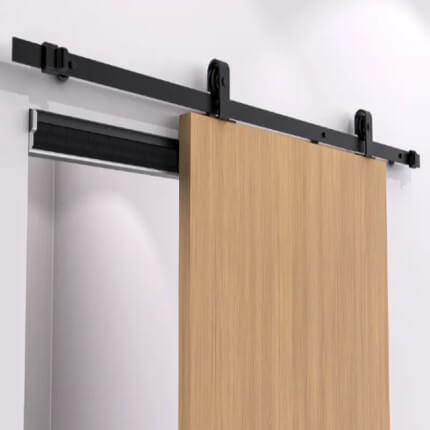

    Sliding Door Types: Barn doors and pocket doors

    Product Dimensions: 36" L x 2.5" W x 3" H

    • Can be trimmed to fit door openings as small as 30" wide

    Maximum Door Weight: 330 lbs

    • Supports door widths up to the maximum door weight capacity
    • Maximum push force: 65 lbs

    Length of track: Two 20" slim tracks

    • Additional tracks are needed for doors wider than 40"

    Electrical:

    • Input for Power Adapter - 120V, 50/60HZ, 2.7A
    • Open-Time Dial: Adjust between 0-24 seconds
    • Customizable DIP Switches
    • Power level for lightweight or heavy doors, power-boost functionality, beeper alerts
    • Reverts to a manual sliding door in the event of power failure

    Mounting:

    •  Mounts to header
    • Optional adapter bracket available for non-header installations
    • Recess into the wall for full-opening width access

    Kit Components:

    • One operator, two tracks, two hand wave sensors, one keypad, one mode pad,
    • 16 wood screws, eight sheet metal screw, one hex key, one screwdriver one wrench
    • Double-sided tape, cables, cable retaining clips, stickers for activators

    Certifications and Standards :

    • Operator certified to ANSI/UL standard 325 for automatic closing doors
    • Tested to ANSI A156.38, Low Energy Power Operated Sliding and Folding Doors
    • Can be installed and adjusted to meet ADA Standards
    • Door activators comply with part 15 of FCC Rules

    Optional Parts:

    • Wave Sensor
    • Push Button
    • Numeric Keypad

    SOLD PER SET

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

    This product has a guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

      • SKU
        PKPSLIDE-BSP/36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      PSLIDE
    • Optional Part:
      N/A, Wave Sensor, Push Button, Numeric Keypad
    • Finishes
      • Finish
        Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Clear Anodized Aluminum (C)
