Rixson 165, Door Closer Pivot, Pivot Set Without Bottom Pivot, 3/4 Offset
The 165 Door Pivot for Door Closer, is an offset-hung pivot set, without bottom pivots, designed for interior or exterior doors and can support doors with up to 300 lbs. of weight. This set includes an H180 top pivot and two M190 intermediate pivots and is available in a variety of finishes. View the options and details below.
PRICED PER SET
The 165 Door Pivot for Door Closer, is an offset-hung pivot set, without bottom pivots, designed for interior or exterior doors and can support doors with up to 300 lbs. of weight. This set includes an H180 top pivot and two M190 intermediate pivots and is available in a variety of finishes. View the options and details below.
Features:
- Exterior or interior doors
- Weight up to 300lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
- Door width up to 3'6" (1067mm)
- Handed
- For doors without bottom pivots

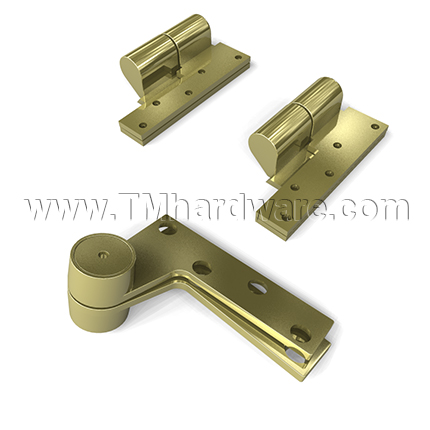

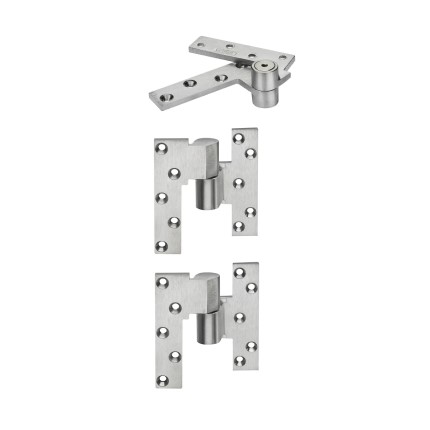

- Set consists of one H180 top pivot and two each M190 intermediate pivots
- Not available for fire door assemblies

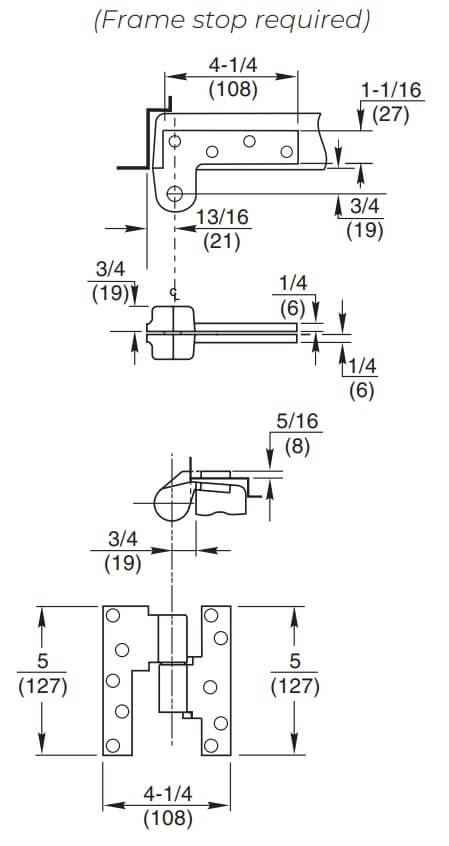

- 3/4" (19mm) offset (measured from centerline of pivot to face of door
- Door edges must be beveled 1/8" in 2"
- Doors will swing 180°, trim permitting
- Non-ferrous base material
- Doors 60" (1524mm) to 90" (2286mm) in height have two intermediate pivots. Each additional 30" (762mm) of door height warrants another intermediate pivot
- Furnished with wood and machine screws
PRICED PER SET
This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
Click here to view Rixson 547, Door Closer Pivot, Pivot Set for Arch Top or Overhead Concealed Closers
-
QuickShipNo
-
ManufacturerRixson
-
MPN165
- Description
-
SeriesNorton 165 Series
-
HandingRight Handed, Left Handed
-
- Door Description
-
Door Weightup to 300 LB
-
- Finishes
-

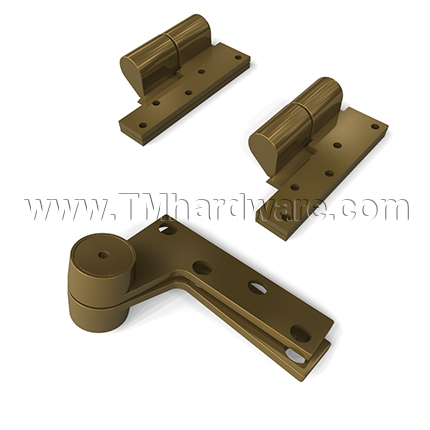

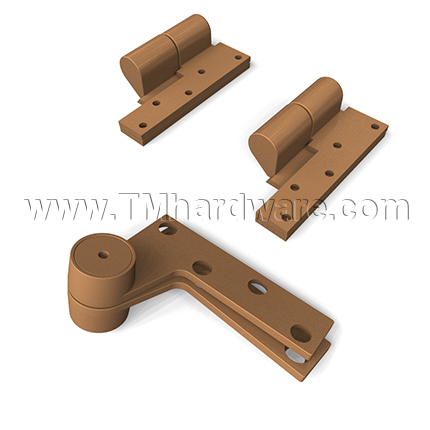

FinishBright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
-
- Compliance Details
-
Warranty2 Year Limited Warranty
-
