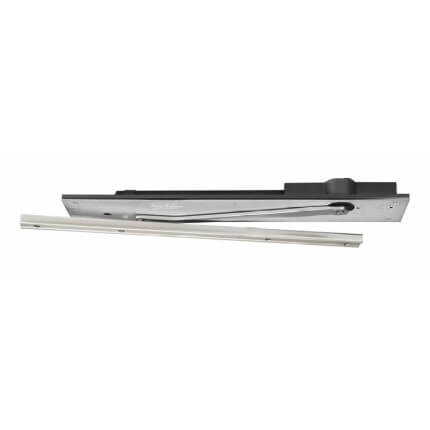

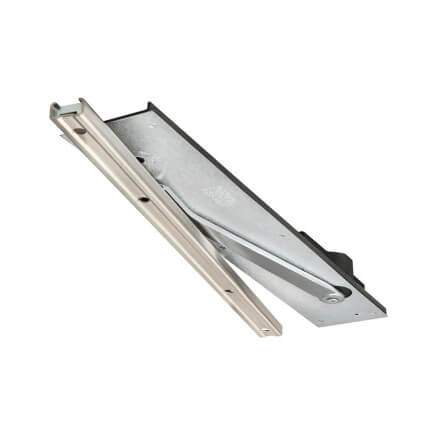

Rixson 93 Series, Door Closer, Overhead Concealed, Center Hung, Single Acting

Norton 93 Series, Door Closer, Overhead Concealed, Center Hung, Single Acting, ADA, non-hold open, Aluminum Painted Finish
Rixson

The Rixon's 93 Series Overhead Concealed Door Closer is a center-hung closer made for doors up to 250 pounds that are used indoors or outdoors. Having frames made of wood, hollow metal, or aluminum. It provides a visually pleasing method of shutting a door. Offers to satisfy your application needs in cases where concealment is necessary but a closer is required. These concealed, minimally-looking center-hanging door closers offer control without compromising the opening's attractiveness.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-PH93N-689
    • Market price:$2,348.05
      • save 19%
    • Starting price: Price: $1,900.29 per item
    Additional discounts will be applied when added to cart!


    The Rixon's 93 Series Overhead Concealed Door Closer is a center-hung closer made for doors up to 250 pounds that are used indoors or outdoors. Having frames made of wood, hollow metal, or aluminum. It provides a visually pleasing method of shutting a door. Offers to satisfy your application needs in cases where concealment is necessary but a closer is required. These concealed, minimally-looking center-hanging door closers offer control without compromising the opening's attractiveness.


    Features:

    • Exterior or interior doors
    • Can be used in aluminum, hollow metal, or wood frames
    • Single acting, center hung, handed
    • Heavy-duty cast iron closer body and forged arms
    • Staked, brass adjusting valves
    • 270 pivot set and dress cover plate included
    • One-piece mounting plate
    • Separate and independent closing speed and latch speed valves and hydraulic backcheck valve
    • All weather fluid (accommodates a temperature range from - 40° to 150°F.)

    Benefits:

    • Aesthetically appealing way to close a door
    • Concealed for minimum appearance

    Custom Options:

    • Finish: selection of finishes available, select above
    • Frame stop required for applications. Click here to order Rixson #60131 frame stop
    • 1/2" Extended Spindle
    • Optional End Cap for top and bottom of wood door

    Certification:

    • ANSI/C05121
    • ANSI/BHMA A156.4 Grade 1

    PRICED PER UNIT

    This product has a 15-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 91DCP Series, Door Closer, Overhead Concealed, Offset Hung

      • SKU
        RX-PH93N-689
    • QuickShip
      No
    • Manufacturer
      Rixson
    • MPN
      93
    • Description
      • Series
        Norton 93 Series
      • Closer Performance
        Heavy Duty
      • BHMA Grade
        Grade 1
      • Handing
        Right Handed, Left Handed
      • Closer Body Material
        Cast Aluminum
    • Door Description
      • Door Weight
        Up to 250 LB
    • Features
      • Function
        ADA, non-hold open, Non-hold open, ADA, hold open, Hold Open, Wood frame, ADA, non-hold open, Wood frame, non-hold open, Wood frame, ADA, hold open, Wood frame, hold open
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted (693), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Satin Chrome Plated (626), Bright Brass (605), Satin Brass (606), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Bright Chrome Plated (625)
    • Compliance Details
      • Compliance Details
        Buy American Act
      • ANSI Designation
        ANSI/C05121, ANSI/BHMA A156.4 Grade 1
      • Warranty
        15 Year Limited Warranty
