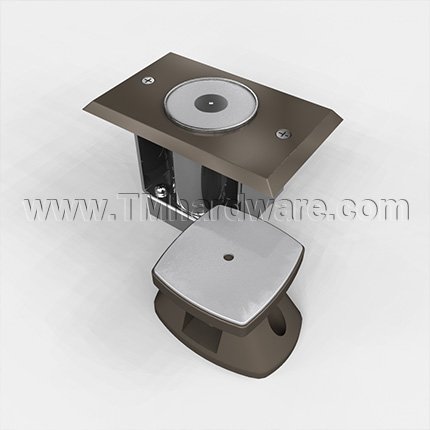

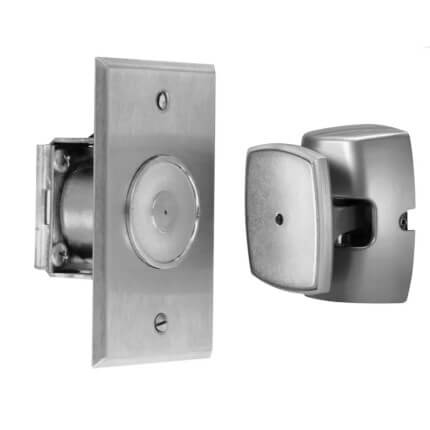

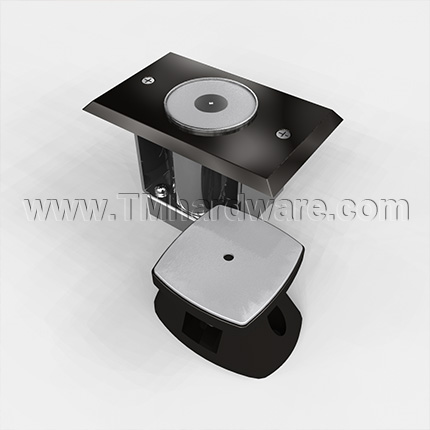

Rixson 990M Electromagnetic Door Holder, Low Projection Wall

Rixson 990M Electromagnetic Door Holder, Low Projection Wall, Dark Satin Bronze, Equiv Finish
Rixson

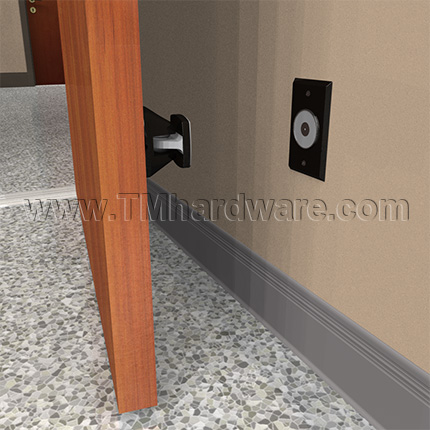

The Rixon's 990M electromagnetic door holder is a wall-mounted, low-profile device with a 1-13/16" overall projection. It is made to fit almost any kind of remote door release application. Their principal function is to maintain the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-990-613e
    • Market price:$792.13
      • save 25%
    • Starting price: Price: $594.10 per set


    The Rixon's 990M electromagnetic door holder is a wall-mounted, low-profile device with a 1-13/16" overall projection. It is made to fit almost any kind of remote door release application. Their principal function is to maintain the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

    Features:

    • Wall mount
    • Low profile
    • Concealed wiring

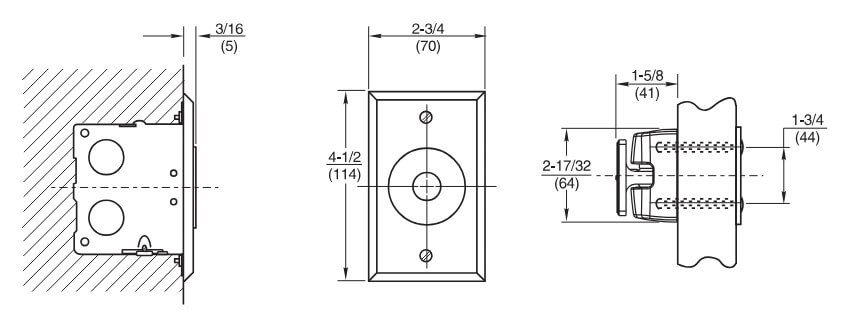

    • Total projection: 1-13/16"
    • Mounting requirements: 2" x 4" x 2-1/2" outlet box
    • Wall must be properly reinforced and outlet box adequately fastened
    • Tri-volt (120VAC, 24VAC/DC, 12VDC)
    • 25-40 lbs. holding force
    • For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC

    Benefits:

    • Ideal for low profile applications where there is minimal space between door and wall
    • Doors remains open unless electromagnetic holder is released by alarm or smoke detector
    • Fail safe operation; power failure releases door to close

    Certification:

    • ANSI/BHMA A156.15, Grade 1
    • CAL FIRE, 3550-0047:0001
    • UL-cUL Listed

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 989 Electromagnetic Door Holder, Low Projection Wall

      • SKU
        RX-990-613e
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Voltage
      120VAC, 24VAC/DC, 12VDC
    • Description
      • Series
        Electromagnetic Door Holder/Releases
      • BHMA Grade
        Grade 1
      • Mounting Type
        Wall Mounted
    • Finishes
      • Finish
        Dark Satin Bronze, Equiv (613e), Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted (693), Gold Painted (696), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        Ul-cUL Listed, CAL FIRE, 3550-0047:0001
      • ANSI Designation
        ANSI/BHMA A156.15, Grade 1
      • Warranty
        2 Year Limited Warranty
