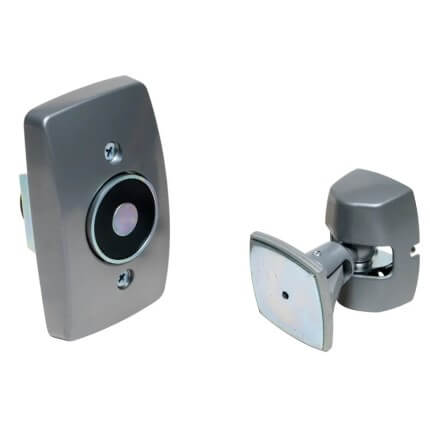

Rixson 994M Electromagnetic Door Holder, Wall Mounted Adjustable Armature

Rixson 994M Electromagnetic Door Holder, Wall Mounted Adjustable Armature, Aluminum Painted Finish
Rixson

Concealed wiring and wall-mounted, the Rixon's 994M electromagnetic door holder with an adjustable armature is suggested for solid wood doors. Their principal function is to maintain the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our  Rixson 994M Electromagnetic Door Holder, Aluminum Painted Finish - QuickShip

PRICED PER UNIT

See tabs below for additional information
    • Weight
      3 lbs
    • SKU
      RX-994M-689
    • Market price:$792.13
      • save 25%
    • Starting price: Price: $594.10 per set


    Concealed wiring and wall-mounted, the Rixon's 994M electromagnetic door holder with an adjustable armature is suggested for solid wood doors. Their principal function is to maintain the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our  Rixson 994M Electromagnetic Door Holder, Aluminum Painted Finish - QuickShip

    Features:

    • Wall mount
    • Adjustable armature
    • Concealed wiring

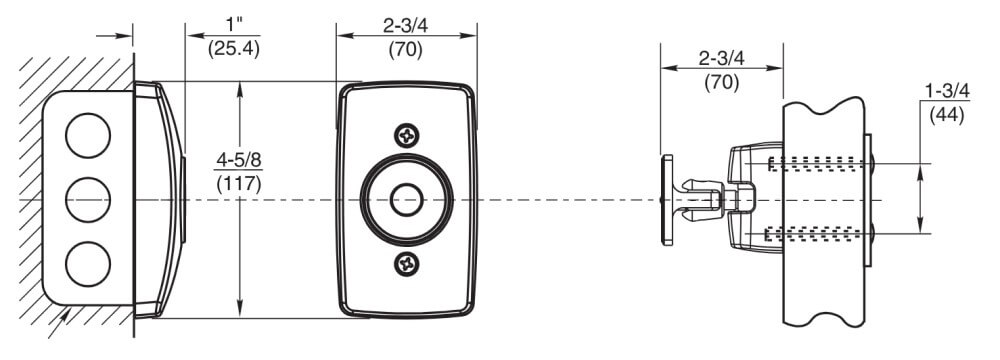

    • Total projection: 3-3/4"
    • Adjustable armature rotation up and down, back and forth for better alignment
    • Cannot be used with 900 base or spacers
    • Can be used without adjustment piece making it a model 997M
    • Mounting requirements: 2" x 4" x 2-1/2" outlet box
    • Wall must be properly reinforced and outlet box adequately fastened
    • Tri-volt (120VAC, 24VAC/DC, 12VDC)
    • 25-40 lbs. holding force
    • For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC

    Benefits:

    • Adjustable armature rotation up and down, back and forth for better alignment
    • Doors remains open unless electromagnetic holder is released by alarm or smoke detector
    • Fail safe operation; power failure releases door to close

    Certification:

    • ANSI/BHMA A156.15, Grade 1
    • UL-cUL Listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 993M Electromagnetic Door Holder, High Hold

      • Weight
        3 lbs
      • SKU
        RX-994M-689
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Description
      • Series
        Electromagnetic Door Holder/Releases
      • BHMA Grade
        Grade 1
      • Mounting Type
        Wall Mounted
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted (693), Gold Painted (696), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e)
    • Compliance Details
      • Compliance Details
        Ul-cUL Listed
      • ANSI Designation
        ANSI/BHMA A156.15, Grade 1
      • Warranty
        2 Year Limited Warranty
