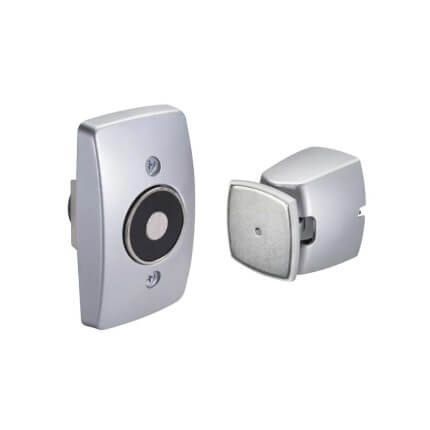

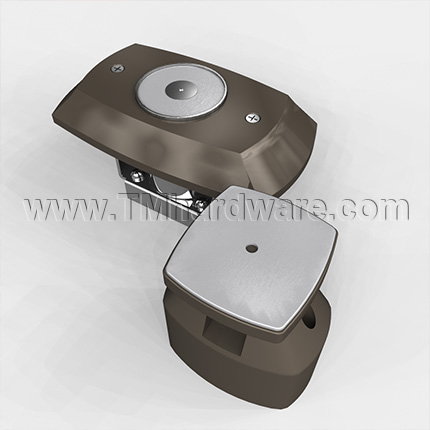

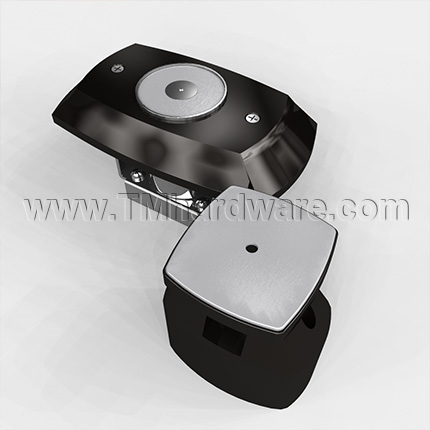

Rixson 998M Electromagnetic Door Holder, Wall Mounted, Concealed Wiring, 3-5/8" Projection

Rixson 998M Electromagnetic Door Holder, Wall Mounted, Concealed Wiring, 3-5/8" Projection, Dark Satin Bronze, Equiv Finish
Rixson

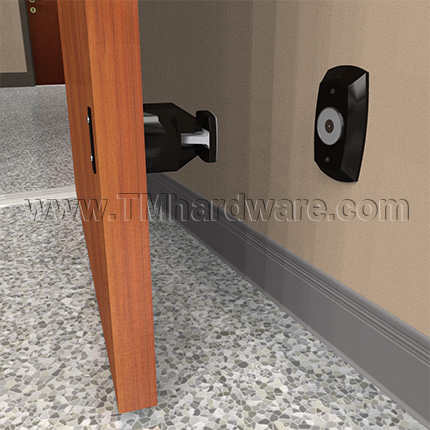

This wall-mounted 998M electromagnetic door holder from Rixson has a total projection of 3-5/8". Their principal function is maintaining the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our  Rixson 998M Electromagnetic Door Holder, Wall Mounted, Concealed Wiring,- QuickShip

PRICED PER UNIT

See tabs below for additional information
    • Weight
      3.46 lbs
    • SKU
      RX-998M-613e
    • Market price:$792.13
      • save 25%
    • Starting price: Price: $594.10 per set


    This wall-mounted 998M electromagnetic door holder from Rixson has a total projection of 3-5/8". Their principal function is maintaining the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our  Rixson 998M Electromagnetic Door Holder, Wall Mounted, Concealed Wiring, - QuickShip

    Features:

    • Wall mount
    • Concealed wiring

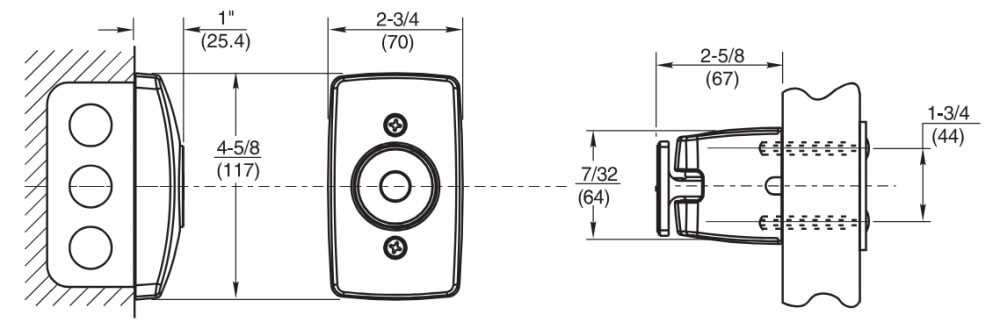

    • Total projection: 3-5/8"
    • Mounting requirements: 2" x 4" x 1-3/4" outlet box
    • Wall must be properly reinforced and outlet box adequately fastened
    • Tri-volt (120VAC, 24VAC/DC, 12VDC)
    • 25-40 lbs. holding force
    • For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC

    Benefits:

    • Doors remains open unless electromagnetic holder is released by alarm or smoke detector
    • Fail-safe operation; power failure releases door to close

    Certification:

    • ANSI/BHMA A156.15, Grade 1
    • UL-cUL Listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 997M Electromagnetic Door Holder, Wall Mounted, Concealed Wiring, 2-5/8" Projection

      • Weight
        3.46 lbs
      • SKU
        RX-998M-613e
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Description
      • Series
        Electromagnetic Door Holder/Releases
      • BHMA Grade
        Grade 1
      • Mounting Type
        Wall Mounted
    • Finishes
      • Finish
        Dark Satin Bronze, Equiv (613e), Dull Bronze Painted (691), Black Painted (693), Gold Painted (696), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        Ul-cUL Listed
      • ANSI Designation
        ANSI/BHMA A156.15, Grade 1
      • Warranty
        2 Year Limited Warranty
