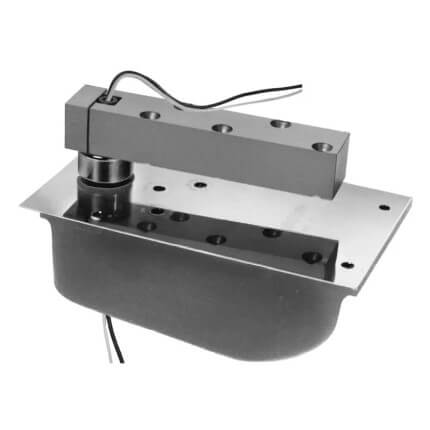

Rixson EH28 Series, Floor Door Closer, Center Hung, Single Acting, Thru-Wire/Power Transfer

For optimal mechanical support and control of a door, the Rixson EH28 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for power transfer from the frame to the door through the closer spindle for interior or exterior doors weighing up to 500 lbs.

Features:

• Single acting, handed
• Exterior or interior doors weighing up to 500 lbs.
• H340 top pivot included
• Provides power transfer through closer spindle; low voltage, class II wiring (2 wire, 18 gauge only)
• Separate and independent valves for closing speed, latch speed, and backcheck

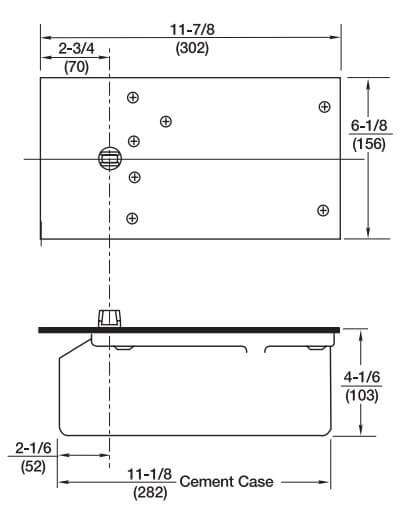

• Cast iron cement case
• Not allowed for fire rated doors
• Frame stop required on the header at lock side; if not supplied by frame manufacturer, Norton Rixson 60131 recommended
• 2" minimum door thickness

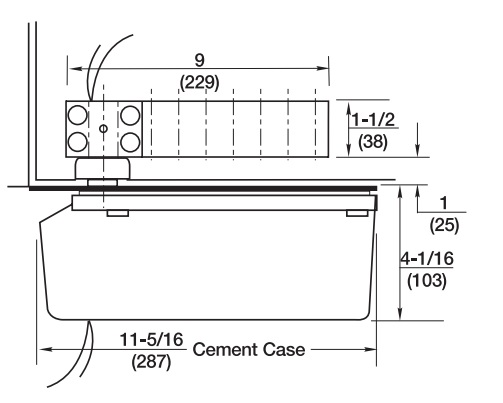

• 587 is a special side load arm for 1-3/4” thick doors; this arm allows pivot point to be moved away from pivot edge of door - minimum 2-3/4” backset
• Available with floor plate or threshold installation
• Furnished with wood and machine screws

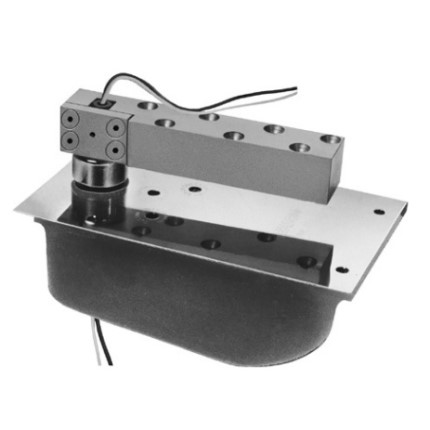

• With 587 Arm Variants Available
  • Special side load arm for 1-3/4" thick doors
  • Allows pivot point to be moved away from pivot edge of door – minimum 2-3/4" backset

Benefits:

• Heavy duty closer constructed with robust materials and internal components for long life and consistent operation
• Aesthetically appealing way to support and control the door
• Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
• Built-in positive dead stop prevents door from swinging beyond the desired opening degree
• Concealment in-floor provides vandal resistance
• Multiple valves provide precision adjustment and enhanced control
• Weight of door is supported by floor closer
• Additional thrust bearing for greater load capacity

Optional Features:

• Delayed action option –  (non-hold open closers only)
• Cold weather fluid option – (not available for closers with delayed action)
• Sealed closer option
• Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)

Certification:

• Certain models meet ANSI A117.1 (PH prefix)

PRICED PER UNIT

This product has a 10-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
