Rixson EH345, Door Closer Pivot, Center Hung Longer Throw Pin Heavy Duty for Taller Doors for Power Transfer
Rixson EH345 Door Pivot for Door Closers, an electric top pivot in the style of a walking beam that can be utilized with any floor closer or bottom pivot that is center-hung. in addition to maintaining door alignment, pivots help with floor closer and top pivot installation. Available in multiple finishes. View the options and details below.
PRICED PER UNIT
Rixson EH345 Door Pivot for Door Closers, an electric top pivot in the style of a walking beam that can be utilized with any floor closer or bottom pivot that is center-hung. in addition to maintaining door alignment, pivots help with floor closer and top pivot installation. Available in multiple finishes. View the options and details below.
Features:
- Center-hung top pivot for power transfer
- Non-handed

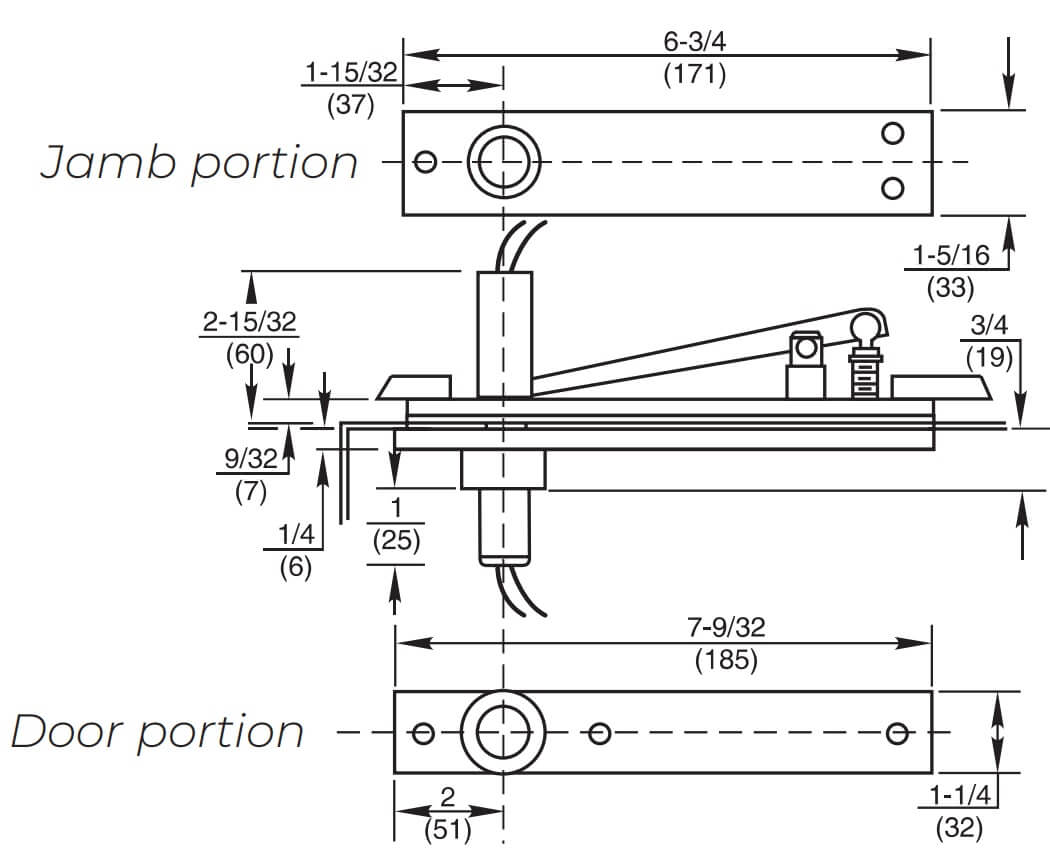

- Walking beam-type pivot – 11/16" (17mm) diameter pivot pin
- Longer pivot pin throw engages in top of door 1-3/4" (44mm); ideal for locations where there is a fear of dramatic building settling
- Can be used with any center hung bottom pivot or floor closer whose pivot point is 2-3/4" (70mm), or greater, from the edge of the door - order the pivot set LTP (less top pivot) with E-H345 as a separate line
- Used with heavy-duty pivots & floor closers
- Heavy-duty needle bearing
- For doors over 8'6" in height
- Furnished with wood and machine screws
- Specify two, four, six, eight or twelve wires
- Two-wire is available in 18 gauge and is not available with ElectroLynx®

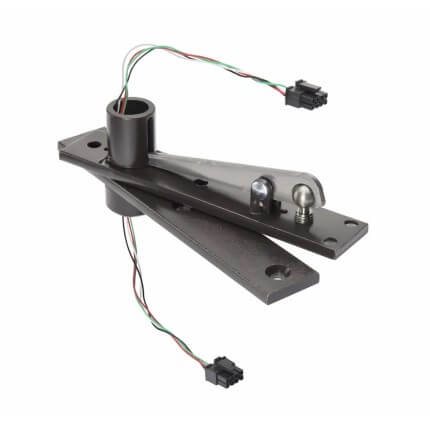

- Four, six, eight and twelve wires are 24 gauge and available in ElectroLynx® (suffix QC x number of wires)
- ElectroLynx®
- As part of their promise to provide innovative, fast and effective, and higher security solutions to their customers, ASSA ABLOY Group companies offer ElectroLynx®, a universal quick-connect system that simplifies the electrification of the door opening.
PRICED PER UNIT
This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
Click here to view Rixson H340, Door Closer Pivot, Center Hung Top Pivot, Heavy Duty
-
QuickShipNo
-
ManufacturerRixson
-
MPNEH345
-
Number of Wires2, 4, 6, 8, 12
- Description
-
SeriesNorton EH345 Series
-
- Finishes
-
FinishBright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
-
- Compliance Details
-
Warranty2 Year Limited Warranty
-
