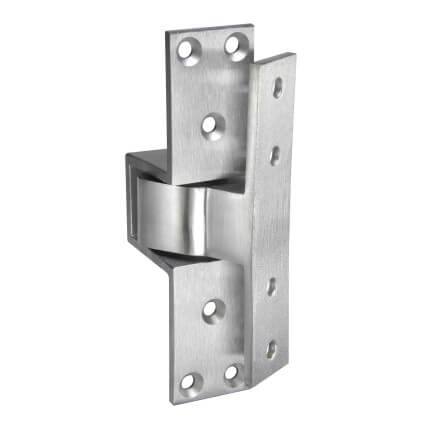

Rixson F519, Pocket Pivot

Norton F519, Door Closer Pivot, Pocket Pivot, Aluminum Painted Finish
Rixson

For use with pocket doors, the Rixson F519 is a heavy-duty, fire-rated complete mortise pivot. The door swings to a full 90 degrees thanks to the pocket pivot. Pivot comes in a range of finishes.

PRICED PER ITEM

See tabs below for additional information
    • SKU
      RX-F519-689
    • Market price:$841.85
      • save 25%
    • Starting price: Price: $631.39 per item


    For use with pocket doors, the Rixson F519 is a heavy-duty, fire-rated complete mortise pivot. The door swings to a full 90 degrees thanks to the pocket pivot. Pivot comes in a range of finishes.

    Features:

    • Full mortise, non-handed pivot for pocket door applications
    • Heavy-duty steel pivot with ball bearings
    • Allows doors to swing 90°
    • Minimum three pocket pivots per door
    • Doors 60" (1524mm) to 90" (2286mm) in height require four pocket pivots. Every additional 30" (762mm) of door height warrants another pocket pivot
    • Furnished with wood and machine screws
    • Available in plated or sprayed finishes

    PRICED PER ITEM

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 680, Door Closer Pivot, Offset Hung Top Pivot, 3/4" Offset

      • SKU
        RX-F519-689
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Description
      • Series
        Norton F519 Series
      • Closer Performance
        Heavy Duty
      • Handing
        Non Handed
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
